Forum Discussion

Kelly99_O's avatar
Kelly99_O
Settling in
4 days ago

Extremely High Uncorrectable Errors – Major Connection Instability

Hi,



We’ve been experiencing constant internet downtime and instability recently. After checking the status page on our Virgin Media Hub 5, I noticed extremely high uncorrectable errors on the DOCSIS 3.1 downstream channel, along with a low PLC power level that may be contributing to the issue.



Here are the key stats:

  • Router: Virgin Media Hub 5
  • Channel ID: 159 (OFDM)
  • Locked Status: Locked
  • RxMER: 36 dB
  • PLC Power: -9.2 dBmV
  • Corrected Errors: 721,981,898
  • Uncorrectable Errors: 113,766,705



The error count continues rising even after rebooting the router. We’ve already checked all cables and splitters inside the house—they’re properly connected and in good condition. Despite this, we’re seeing frequent disconnections, lag, and loss of service.

Could someone from the team please investigate this? It feels like there might be a signal issue either at the street cabinet or on the line coming into the property.

Happy to provide further data if needed.

Thanks in advance,

Kelly

11 Replies

    • Kelly99_O's avatar
      Kelly99_O
      Settling in

      Called, no issues in the area. This was expected since I’ve had intermittent issues since installation at the property. However it was somewhat manageable up until recently.

  • Hi again,



    I’ve collected updated downstream stats from my Virgin Media Hub 5, and the error levels are still very concerning.



    DOCSIS 3.0 channels:

    • All channels are locked with SNR around 41–42 dB (good)
    • Power levels start around +3 dBmV and gradually drop to -5.6 dBmV by channel 32
    • Multiple channels have rising Post-RS errors, especially channels 10, 13–16, and 28–32



    DOCSIS 3.1 channel (ID 159):

    • RxMER: 36 dB
    • PLC Power: -9.2 dBmV
    • Corrected Errors: 1,649,682,892
    • Uncorrectable Errors: 113,766,706



    Upstream (DOCSIS 3.0 and 3.1):

    • Power: 42–44 dBmV (DOCSIS 3.0), 39.2 dBmV (DOCSIS 3.1)
    • DOCSIS 3.1 upstream has 19 T3 and 1 T4 timeout



    Despite multiple reboots and checking all internal wiring, we’re still getting constant disconnections and degraded performance. The error rates continue to climb rapidly.



    Can someone investigate this, possibly check for a noise issue or signal drop from the cabinet? It seems likely this is a line fault or signal problem on Virgin’s end.



    Thanks,

    Kelly

  • Update – Ongoing Connection Issues



    DOCSIS 3.1 Downstream (Channel 159):



    • Corrected Errors increased from ~1.65 billion to ~2.90 billion (+1.25 billion in 12 hours)
    • Uncorrectable Errors slightly up: 113,766,706 → 113,766,782
    • PLC Power improved slightly: -9.2 dBmV → -8.9 dBmV
    • RxMER remains 36 dB (low end of acceptable for 4096-QAM)





    These error volumes and poor signal quality on the 3.1 channel strongly suggest noise or signal degradation.







    DOCSIS 3.0 Downstream:



    • SNR remains stable at 41–42 dB, but Post-RS errors continue rising.
    • Notable 12-hour increases in Post-RS Errors:
      • Channel 28: 14071 → 14259
      • Channel 29: 14891 → 15088
      • Channel 30: 18930 → 19261
      • Channel 31: 23617 → 23997
      • Channel 32: 65266 → 66604
    •





    Channels 28–32 are also running with low power (down to -5.5 dBmV) and SNR as low as 38 dB, indicating signal deterioration at higher frequencies.







    Upstream DOCSIS 3.0 & 3.1:



    • Power levels remain elevated at 42.8–44.8 dBmV (acceptable but high)
    • DOCSIS 3.1 Upstream (OFDMA Channel 6):
      • T3 timeouts unchanged at 19
      • T4 timeouts remain at 1
    •





    These timeouts are signs of intermittent transmission issues.

    • Error counts on both DOCSIS 3.0 and 3.1 channels are increasing, with particularly poor health on downstream 3.1 and high-frequency DOCSIS 3.0 channels (28–32).
    • Upstream timeouts and elevated power levels persist.
    • This strongly suggests an ongoing line fault or cabinet noise issue outside of my home.





    Would appreciate Virgin Media’s help in investigating the signal path, especially checking for noise ingress or faults from the cabinet.



    Thanks,

    Kelly

    • Kelly99_O's avatar
      Kelly99_O
      Settling in



      Update (11 Hours Later) — Virgin Media Hub 5 Line Stats







      🔄

      Changes Since Last Check





      • 📈 Corrected Errors (DOCSIS 3.1)
         From: 2,901,183,566
         To: 3,392,678,016
         ➡ Increase: ~491 million in 11 hours — still rising at a concerning rate.
      • 📉 PLC Power
         From: -8.9 dBmV → -9.3 dBmV
         ➡ Signal is slightly weaker.
      • 🔧 Uncorrectable Errors (DOCSIS 3.1)
         Still: 113,766,795
         ➡ Not increasing for now, but remains abnormally high.







      ⚠️

      Problematic 3.0 Downstream Channels





      • Channel 32
         - Power: -5.6 dBmV
         - SNR: 38 dB
         - Post-RS Errors: 67,767 → 67,767 (minimal change, but still high)
      • Channels 28–31
         - Power Levels: -3.5 to -4.5 dBmV
         - SNR: 39 dB
         - Errors continue to rise:
          - Channel 30: +270 Post-RS errors
          - Channel 31: +359 Post-RS errors
      • Channel 5
         - Post-RS Errors: 339 (still high for a mid-frequency channel)











      📊

      General Signal Health





      • Downstream Power (3.0)
         Starts ~+3.2 dBmV, drops to -5.6 dBmV — a broad and unusual slope.
         ➡ Could indicate tilt, signal loss, or an upstream cabinet issue.
      • Upstream Power (3.0)
         Now peaking at 45.3 dBmV (channel 0)
         ➡ Near DOCSIS limits; may signal struggle to reach the CMTS.
      • DOCSIS 3.1 Upstream
         Power: 39.5 dBmV, 19 T3 timeouts, 1 T4 timeout
         ➡ Indicates upstream instability or noise on the OFDMA channel.



    • Kelly99_O's avatar
      Kelly99_O
      Settling in

      Created monitor. Will post back in a few hours time with updated graph once we have some data.

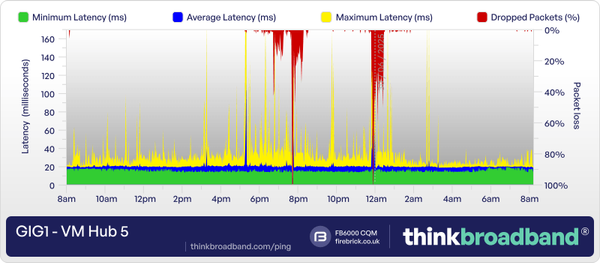

  • For reference this happens at all times of day. This graph is not actually as bad to what I’ve previously experienced. It’s what I’d call a good day…
