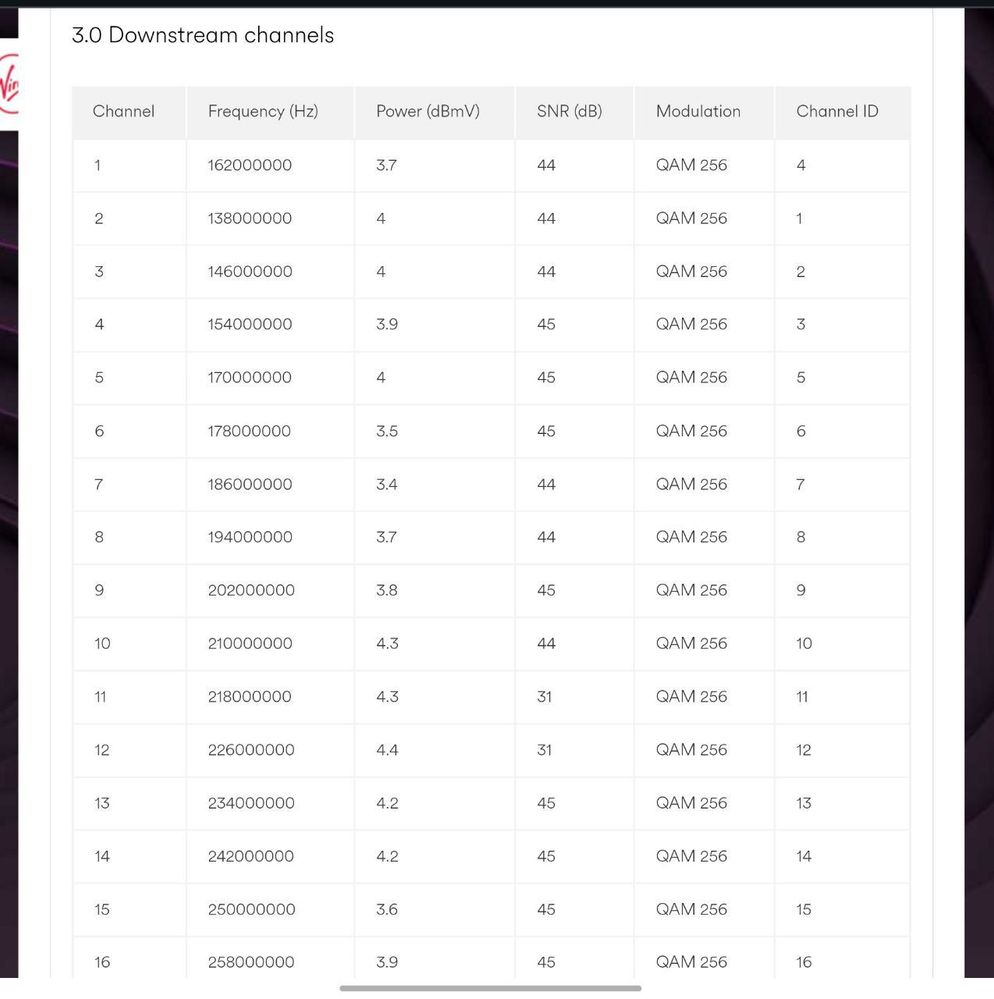

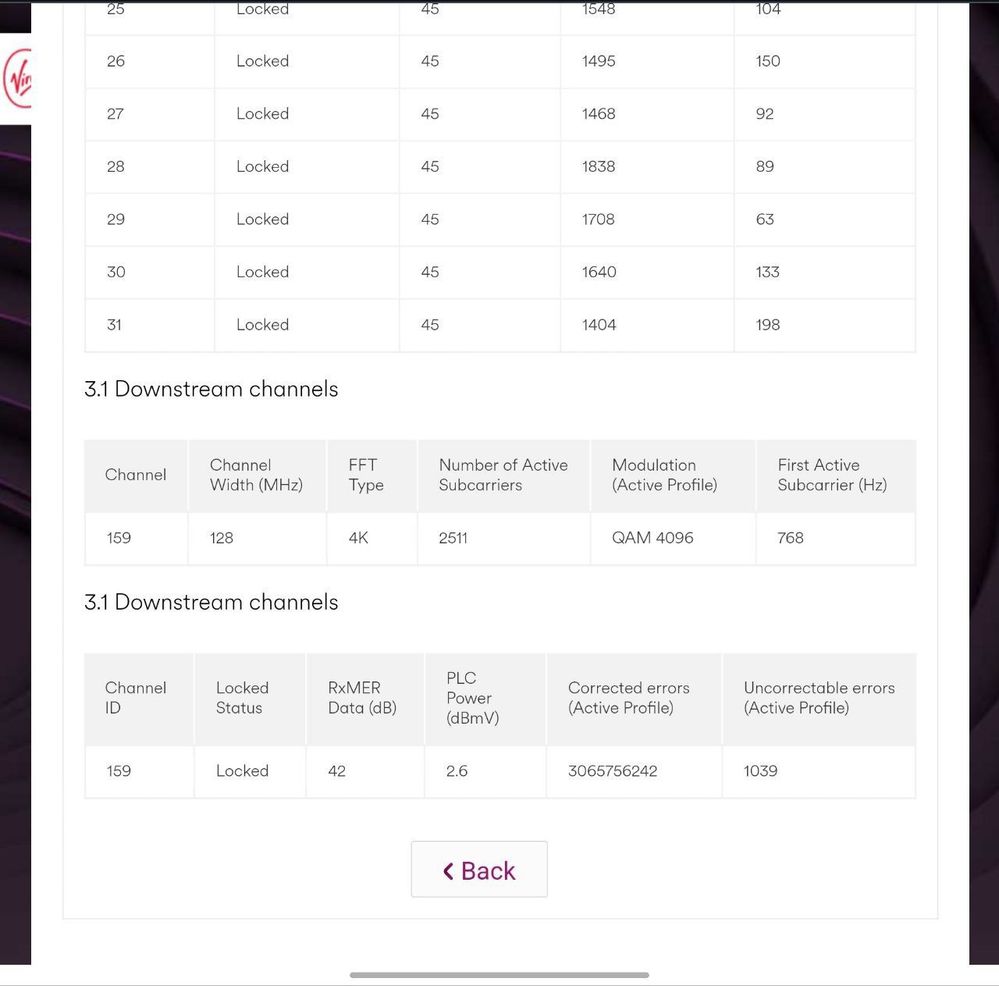

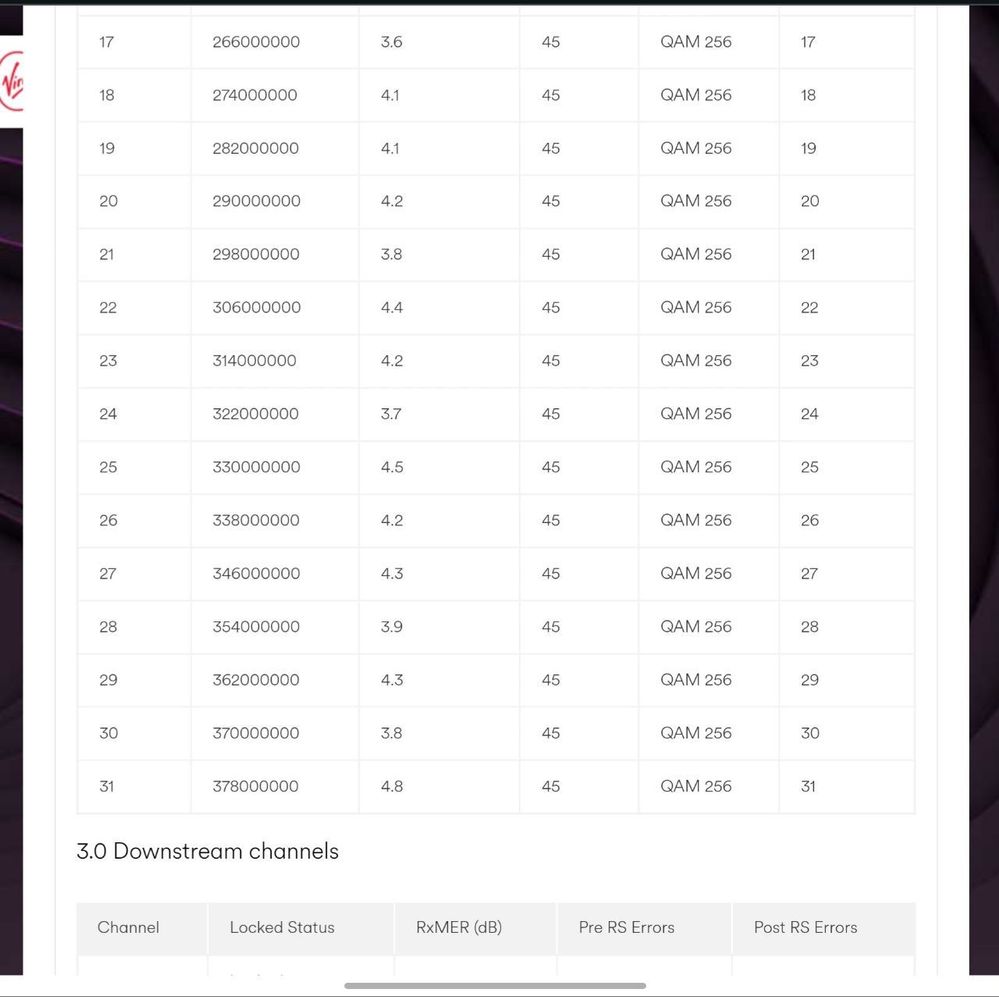

Hey all,I posted this on the end of another thread but have had no response from VM so wondering if any of the community have opinions on this. Copied from my post:"I moved to a new flat with Gig1 and the flat has VM ports in 3 rooms. Looks like the other ports are fed by coax from the master port, I guess they were used for VM TV by the previous tenant. I have plugged in the cable feeding the bedroom port from the master port, and plugged the router in to the port in the bedroom, it works in terms of speed (the upload seems to struggle to get above 85Mb though), but I keep seeing random packet loss and noise on the BQM, especially when running speed tests.Would you mind taking a look at my config to see if using this secondary port in the bedroom is OK? I haven't actually moved in fully to the flat yet so haven't been able to properly test it with online games or anything like that."I am not even at the flat and seeing packet loss on the BQM: Is this normal? To see this when the connection is not even being used? It seems to always coincide with a spike in latency. I will when I properly move be putting it in modem mode and hooking up a BE98 but I don't think that will have any effect on what I am seeing on the BQM. I also realise looking around on the forums that my BQM is probably about as good as it gets for VM minus the packet loss...I am coming from a flawless FTTP connection from you who, where the BQM is flat 99% of the time. I am going to miss that 😔Power levels and such:

https://www.samknows.com/realspeed/Once the test begins click on: Run full test to include: Latency, Jitter, Packet loss & Upload speedThe speed at the Hub should reflect your subscription. Do share a screenshot of the Full test.

Your upstream power levels are out of spec, and it appears you are in an area that does not currently support DOCSIS 3.1 upstream, so 6 3.0 channels are being used instead, which should still be sufficient for 104Mbps.You also have a SNR issue on a couple of downstream channels.Engineer visit required.

Or wait a few days for a reply on here.

None of the coax connections can be left open. Either fit a termination connector on the far end, or remove it from the splitter.

Seeing 85 Mb/s on the upstream is what happens when there are only 4x 3.0 Upstream channels.Could it be of the 6x 3.0 Upstream channels that are connected, only 4 are bonded ?

Upload speed not reaching 104 & packet loss on BQM | Virgin Media Community

Sauce245
On our wavelength
3 months ago
Correction: I am coming from a flawless FTTP connection from you know who, where the BQM is flat 99% of the time. I am going to miss that 😔
Client62
Alessandro Volta
3 months ago
https://www.samknows.com/realspeed/
Once the test begins click on: Run full test to include: Latency, Jitter, Packet loss & Upload speed

The speed at the Hub should reflect your subscription.

Do share a screenshot of the Full test.
- Sauce245
  On our wavelength
  3 months ago
  Tried to run it just now but kept getting an error, will try again tomorrow.
carl_pearce
Community elder
3 months ago

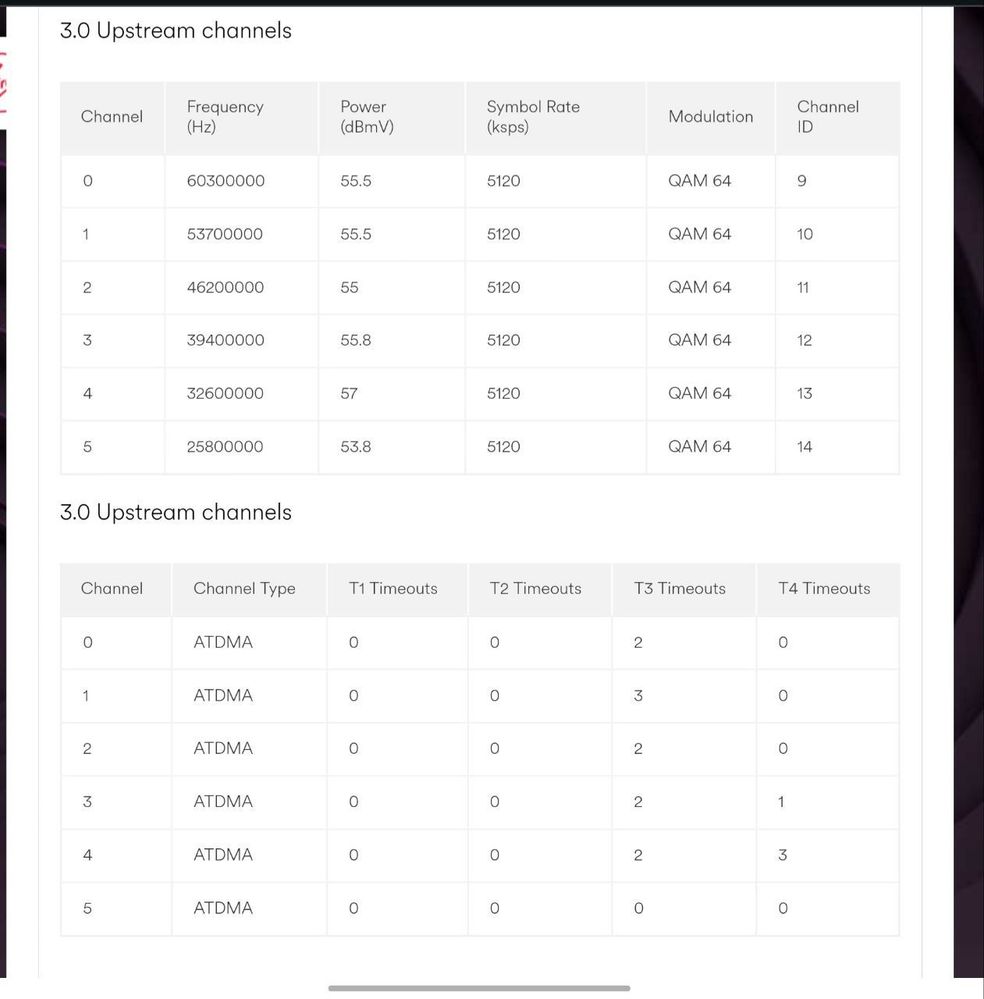

Your upstream power levels are out of spec, and it appears you are in an area that does not currently support DOCSIS 3.1 upstream, so 6 3.0 channels are being used instead, which should still be sufficient for 104Mbps.
You also have a SNR issue on a couple of downstream channels.
Engineer visit required.
- Sauce245
  On our wavelength
  3 months ago
  Ah...OK. Thanks for looking at it. I guess I will need to hop on the phone to VM then...
  - carl_pearce
    Community elder
    3 months ago
    Or wait a few days for a reply on here.
jpeg1
Alessandro Volta
3 months ago
None of the coax connections can be left open. Either fit a termination connector on the far end, or remove it from the splitter.
Client62
Alessandro Volta
3 months ago
Seeing 85 Mb/s on the upstream is what happens when there are only 4x 3.0 Upstream channels.

Could it be of the 6x 3.0 Upstream channels that are connected, only 4 are bonded ?
- Sauce245
  On our wavelength
  3 months ago
  Seems plausible...

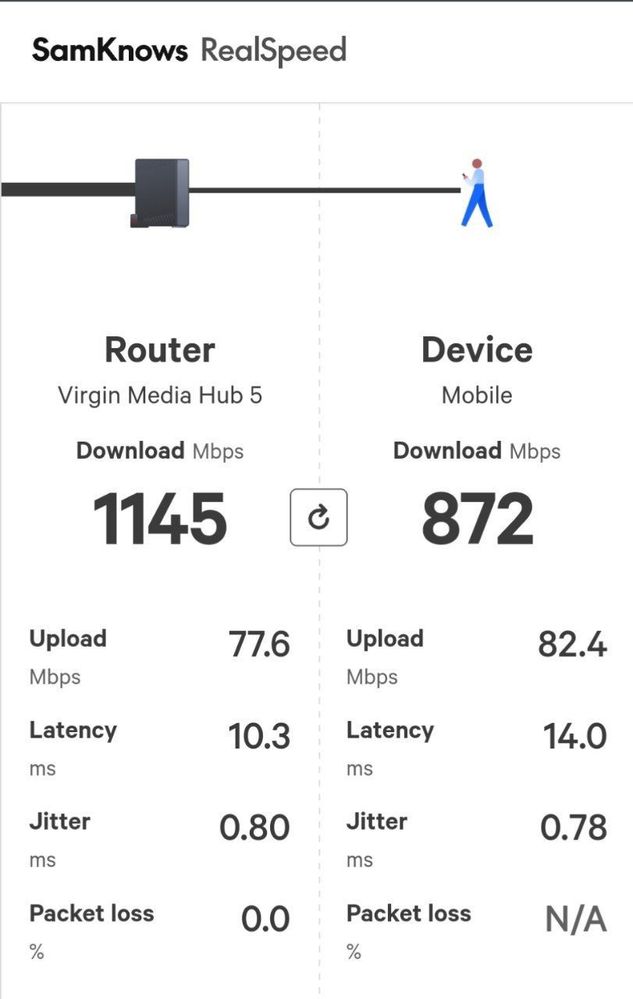

  SamKnows test shows the issue with upload speed:
Impound9140
On our wavelength
2 months ago
Coming from upload in the high 90s I am now down to 35-40 and frankly I would be overjoyed if I had your upload speed.
Virgin Media are altering the upload speed. Pray they don't alter it any further.
pete_at_home
Superfast
2 months ago
As is often seen on this forum, your US levels are not right compared to the DS. Most likely you cable outlets are fed from an RFoG ONU where the fibre enters the house. It could also be mis-alignment in the HFC network.
Keep reporting to VM, and try to escalate to network engineering.
- Sauce245
  On our wavelength
  2 months ago
  Just got support to agree to send an engineer, so hopefully they can sort the issue. As I understand it I am on an HFC connection. Thanks for the info!
Client62
Alessandro Volta
2 months ago
I had assumed this was an RFoG connection due to the lack of a 3.1 Upstream channel.

If you are on an HFC, be sure to point out the lack of a 3.1 Upstream channel to the engineer.

Sauce245

On our wavelength

2 months ago

So...engineer came today and said that at the cabinet I was connected to a very old line that was feeding in to multiple splitters in to the flats where I live. So he has moved me on to a new spare slot in the cabinet and directly connected me without the splitters and then fitted an attenuator. He also directly connected the port I am using to the cable outside and moved the isolator in to the socket that is actively being used, so I now have a direct connection from outside in to the socket I use for the modem. This seems to have solved the noise issue on the downstream and the power levels (downstream power seems to be just in spec)

However, I still have no 3.1 upstream channel, and am still seeing T3 timeouts on the upload. Could somebody please give these stats a once over? I will see how it fares in terms of any packet loss or drop outs over time, but for now the speeds are fine and the latency is as expected. The engineer said that after some time, the 3.1 channel should appear but I am not so sure that will be the case. Also just to confirm, it is an HFC connection.

3.0 Upstream channels

Channel Frequency (Hz) Power (dBmV) Symbol Rate (ksps) Modulation Channel ID

0	60300000	47.5	5120	QAM 64	9
1	53700000	48	5120	QAM 64	10
2	46200000	47.8	5120	QAM 64	11
3	39400000	46.5	5120	QAM 64	12
4	32600000	46	5120	QAM 64	13
5	25800000	45.5	5120	QAM 64	14

3.0 Upstream channels

Channel Channel Type T1 Timeouts T2 Timeouts T3 Timeouts T4 Timeouts

0	ATDMA	0
1	ATDMA	0
2	ATDMA	2
3	ATDMA	0
4	ATDMA	0
5	ATDMA	0

3.0 Downstream channels

Channel Frequency (Hz) Power (dBmV) SNR (dB) Modulation Channel ID

1	298000000	7.6	44	QAM 256	21
2	138000000	7.6	45	QAM 256	1
3	146000000	7.5	45	QAM 256	2
4	154000000	7.5	44	QAM 256	3
5	162000000	7.4	44	QAM 256	4
6	170000000	7.3	44	QAM 256	5
7	178000000	7.2	44	QAM 256	6
8	186000000	7.2	44	QAM 256	7
9	194000000	7.4	44	QAM 256	8
10	202000000	7.4	44	QAM 256	9
11	210000000	7.7	44	QAM 256	10
12	218000000	7.7	44	QAM 256	11
13	226000000	7.9	44	QAM 256	12
14	234000000	7.9	44	QAM 256	13
15	242000000	7.8	44	QAM 256	14
16	250000000	7.7	44	QAM 256	15
17	258000000	7.7	44	QAM 256	16
18	266000000	7.6	44	QAM 256	17
19	274000000	7.7	44	QAM 256	18
20	282000000	7.7	44	QAM 256	19
21	290000000	7.6	44	QAM 256	20
22	306000000	7.6	44	QAM 256	22
23	314000000	7.5	44	QAM 256	23
24	322000000	7.3	44	QAM 256	24
25	330000000	7.3	45	QAM 256	25
26	338000000	7.6	44	QAM 256	26
27	346000000	7.6	45	QAM 256	27
28	354000000	7.3	44	QAM 256	28
29	362000000	7.3	44	QAM 256	29
30	370000000	7.6	45	QAM 256	30
31	378000000	7.6	45	QAM 256	31

3.0 Downstream channels

Channel Locked Status RxMER (dB) Pre RS Errors Post RS Errors

1	Locked	44
2	Locked	45
3	Locked	45
4	Locked	44
5	Locked	44
6	Locked	44
7	Locked	44
8	Locked	44
9	Locked	44
10	Locked	44
11	Locked	44
12	Locked	44
13	Locked	44
14	Locked	44
15	Locked	44
16	Locked	44
17	Locked	44
18	Locked	44
19	Locked	44
20	Locked	44
21	Locked	44
22	Locked	44
23	Locked	44
24	Locked	44
25	Locked	45
26	Locked	44
27	Locked	45
28	Locked	44
29	Locked	44
30	Locked	45
31	Locked	45

3.1 Downstream channels

Channel Channel Width (MHz) FFT Type Number of Active Subcarriers Modulation (Active Profile) First Active Subcarrier (Hz)

159

128

2511

QAM 4096

768

3.1 Downstream channels

Channel ID Locked Status RxMER Data (dB) PLC Power (dBmV) Corrected errors (Active Profile) Uncorrectable errors (Active Profile)

159

Locked

6.5

981962

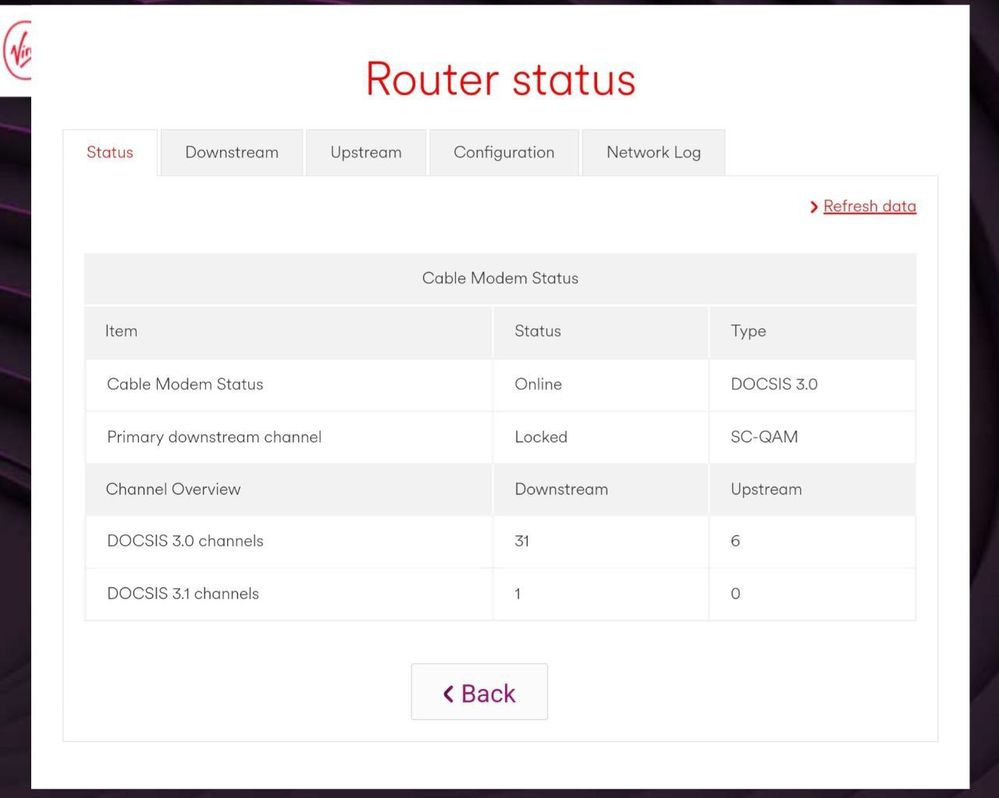

Cable Modem StatusItem Status TypeChannel Overview Downstream Upstream

Cable Modem Status	Online	DOCSIS 3.0
Primary downstream channel	Locked	SC-QAM
DOCSIS 3.0 channels	31	6
DOCSIS 3.1 channels	1	0

Thank you all 😊

Client62
Alessandro Volta
2 months ago
But still no 3.1 Upstream channel. Has the upstream speed to the Hub improved ?
- Sauce245
  On our wavelength
  2 months ago
  Now getting around 100Mb on the upload which is fine, but yeah no 3.1 upstream which the engineer admitted is not normal...but said that it should show up after the connection has settled (not sure it will though)
