Lag issues which have only recently started happening!

Hi, Over the last 1-2 weeks I have noticed I have started getting a lag on my hard wired connection on Xbox on the likes of Call of Duty and kids having issues on Fortnite. I have since ran a BQM for the last few days and noticed I am getting random spikes in latency which roughly matches the time we have issues while gaming and getting lag spikes.

I am not sure if its a network issue or what. I have checked the cable in my house which is only like 1m long as the entry point is right next to the router and the cable is tight. I have even changed ethernet cables just as a precaution but still no change.

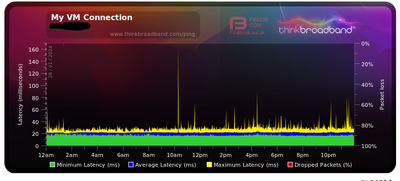

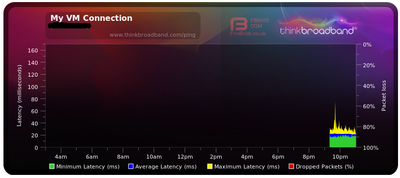

Please see below my BQMs for the past few days and my router stats, hopefully its a simple fix (I have rebooted the router etc which hasn't helped. I even disconnected the VM cable and reconnected but nope.

I have also noticed in the Hub 5 log over the last day I have a few entries saying: DBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value

Hub 5 with 1gig connection.

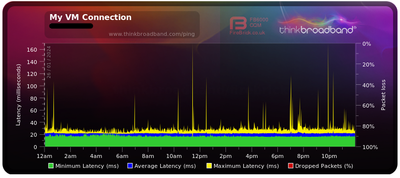

25/01/2024

26/01/2024

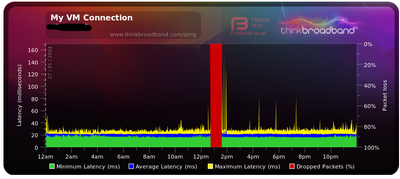

27/01/2024 (Red will be when I disconnected everything and made sure all cables were secure)

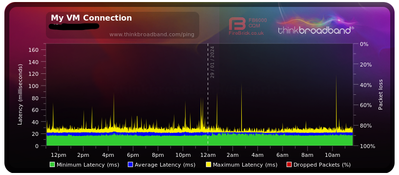

28/01/2024

29/01/2024 (until 11:40am)





3.0 Downstream channels

Channel Frequency (Hz) Power (dBmV) SNR (dB) Modulation Channel ID
1427000000-1.840QAM 25637
22110000001.841QAM 25610
32190000001.641QAM 25611
42270000001.541QAM 25612
52350000001.341QAM 25613
62430000000.741QAM 25614
72510000000.140QAM 25615
82590000000.240QAM 25616
92670000000.641QAM 25617
102750000000.440QAM 25618
112830000000.441QAM 25619
122910000000.441QAM 25620
132990000000.441QAM 25621
143070000000.341QAM 25622
153150000000.240QAM 25623
163230000000.140QAM 25624
173310000000.240QAM 25625
183390000000.240QAM 25626
193470000000.241QAM 25627
203550000000.341QAM 25628
213630000000.341QAM 25629
22371000000-141QAM 25630
23379000000-1.840QAM 25631
24387000000-240QAM 25632
25395000000-240QAM 25633
26403000000-1.940QAM 25634
27411000000-2.140QAM 25635
28419000000-240QAM 25636
29435000000-240QAM 25638
30443000000-1.940QAM 25639
31451000000-1.640QAM 25640

3.0 Downstream channels

Channel Locked Status RxMER (dB) Pre RS Errors Post RS Errors
1Locked4000
2Locked4100
3Locked4100
4Locked4100
5Locked4100
6Locked4100
7Locked4000
8Locked4000
9Locked4100
10Locked4000
11Locked4100
12Locked4100
13Locked4100
14Locked4100
15Locked4000
16Locked4000
17Locked4000
18Locked4000
19Locked4110
20Locked4100
21Locked4110
22Locked4100
23Locked4020
24Locked4010
25Locked4000
26Locked4000
27Locked4010
28Locked4010
29Locked4040
30Locked4030
31Locked4000

3.1 Downstream channels

Channel Channel Width (MHz) FFT Type Number of Active Subcarriers Modulation (Active Profile) First Active Subcarrier (Hz)
159944K1840QAM 40961108

3.1 Downstream channels

Channel ID Locked Status RxMER Data (dB) PLC Power (dBmV) Corrected errors (Active Profile) Uncorrectable errors (Active Profile)
159Locked40-3.731204976857152





3.0 Upstream channels

Channel Frequency (Hz) Power (dBmV) Symbol Rate (ksps) Modulation Channel ID
04960000051.55120QAM 641
14310000050.85120QAM 642
23660000050.55120QAM 643
330100000505120QAM 644
423600000495120QAM 645

3.0 Upstream channels

Channel Channel Type T1 Timeouts T2 Timeouts T3 Timeouts T4 Timeouts
0ATDMA0000
1ATDMA0000
2ATDMA0000
3ATDMA0000
4ATDMA0000

3.1 Upstream channels

Channel Channel Width (MHz) Power (dBmV) FFT Type Modulation
61046.02KQAM 256

3.1 Upstream channels

Channel Channel Type Number of Active Subcarriers First Active Subcarrier (Hz) T3 Timeouts T4 Timeouts
6OFDMA20074000000100
  • TiPs1's avatar
    TiPs1
    Tuning in
    12 months ago

    Network Log

    Time Priority Description
    28-01-2024 19:30:55warningDBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    28-01-2024 19:30:55noticeUS profile assignment change. US Chan ID: 6; Previous Profile: 12 13; New Profile: 11 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    28-01-2024 18:21:34noticeUS profile assignment change. US Chan ID: 6; Previous Profile: 11 13; New Profile: 12 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    28-01-2024 18:21:34warningDBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    28-01-2024 14:58:45noticeUS profile assignment change. US Chan ID: 6; Previous Profile: 12 13; New Profile: 11 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    28-01-2024 14:58:45warningDBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    28-01-2024 13:50:07noticeUS profile assignment change. US Chan ID: 6; Previous Profile: 11 13; New Profile: 12 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    28-01-2024 13:50:07warningDBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    28-01-2024 01:51:53noticeUS profile assignment change. US Chan ID: 6; Previous Profile: 13; New Profile: 11 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    28-01-2024 01:51:53warningDBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    28-01-2024 01:21:20noticeUS profile assignment change. US Chan ID: 6; Previous Profile: 12 13; New Profile: 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    28-01-2024 01:21:20warningDBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    28-01-2024 01:20:55warningDBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    28-01-2024 01:20:55noticeUS profile assignment change. US Chan ID: 6; Previous Profile: 11 13; New Profile: 12 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    28-01-2024 01:20:31warningDBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    28-01-2024 01:20:04criticalNo Ranging Response received - T3 time-out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    28-01-2024 01:19:54criticalStarted Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    27-01-2024 13:34:02warningDBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    27-01-2024 13:34:02noticeUS profile assignment change. US Chan ID: 6; Previous Profile: 13; New Profile: 11 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    27-01-2024 13:33:58noticeREGISTRATION COMPLETE - Waiting for Operational status
    27-01-2024 13:33:53warningDynamic Range Window violation
    27-01-2024 13:33:53warningRNG-RSP CCAP Commanded Power Exceeds Value Corresponding to the Top of the DRW;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    27-01-2024 13:33:53warningRNG-RSP CCAP Commanded Power in Excess of 6 dB Below the Value Corresponding to the Top of the DRW;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    27-01-2024 13:33:53warningDynamic Range Window violation
    27-01-2024 13:33:53warningDynamic Range Window violation
    27-01-2024 13:33:53warningRNG-RSP CCAP Commanded Power in Excess of 6 dB Below the Value Corresponding to the Top of the DRW;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    27-01-2024 13:33:52warningREG-RSP-MP Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    27-01-2024 13:33:46noticeDS profile assignment change. DS Chan ID: 32; Previous Profile: ; New Profile: 1 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    27-01-2024 13:33:39warningDHCP WARNING - Non-critical field invalid in response ;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    27-01-2024 13:33:37noticeHonoring MDD; IP provisioning mode = IPv4
    27-01-2024 13:33:21criticalCable Modem Reboot because of - HW or Power-On Reset
    27-01-2024 13:33:21criticalSYNC Timing Synchronization failure - Failed to acquire QAM/QPSK symbol timing;;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
  • TiPs1's avatar
    TiPs1
    Tuning in
    12 months ago

    Just to add, I have also checked the service status phone number and online and no faults for broadband have been raised in my area.

    I just find it strange that this has only happened within the last 1-2 weeks which is making me think something has been done in the area.

  • TiPs1's avatar
    TiPs1
    Tuning in
    12 months ago

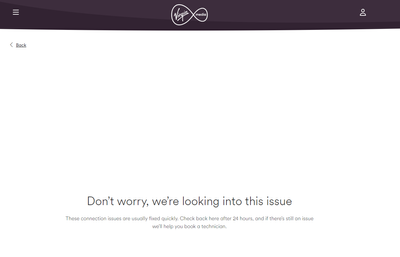

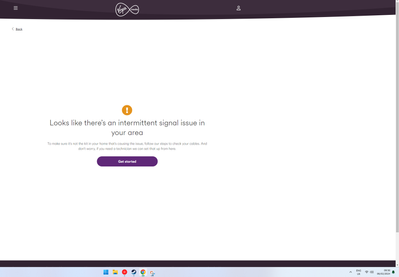

    Went on the Virgin Media website last night to check again the service status and to check for any faults on my line. It prompted I had to factory reset my hub for some reason which I have done. After the reset the connection was even worse and to the point I just stopped playing online games as no matter what game I played I was getting spikes of lag. Looking at the graph it also shows spikes which I am guessing is what I was experiecing. Can someone from Virgin please take a look at my connection and my area as this has only started happening within the last 1-2 weeks! - Connection was perfect before then and nothing in my home has changed. Always have been hardwired.

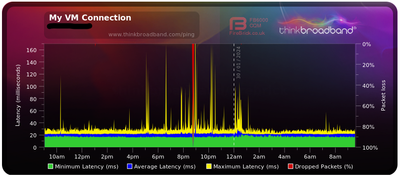

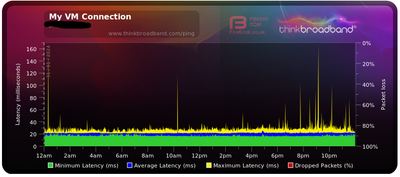

    Latest Graph for the last 24hrs



  • TiPs1's avatar
    TiPs1
    Tuning in
    12 months ago

    Disapointed someone from Virgin has still not messaged regarding this issue I am having. Its clear as day its mostly happening at peak times which is making me think its a Utilisation issue as its mostly always happening during peak times. See below my latest BQM results and also my latest router logs and power levels.

    Tuesday 30/01/2024

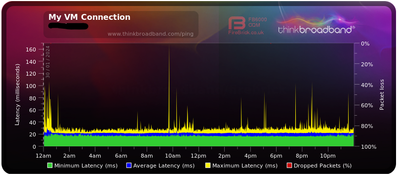

    Wednesday 31/01/2024

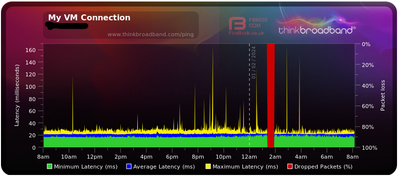

    Thursday 01/02/2024  (upto 8am) (Some sort of outage during the night)

    3.0 Downstream channels

    Channel Frequency (Hz) Power (dBmV) SNR (dB) Modulation Channel ID
    12350000001.141QAM 25613
    21390000002.340QAM 2561
    31470000002.240QAM 2562
    41550000002.140QAM 2563
    51630000001.740QAM 2564
    61710000001.540QAM 2565
    71790000001.340QAM 2566
    81870000001.440QAM 2567
    91950000001.541QAM 2568
    102030000001.441QAM 2569
    112110000001.541QAM 25610
    122190000001.341QAM 25611
    132270000001.341QAM 25612
    142430000000.541QAM 25614
    152510000000.140QAM 25615
    162590000000.140QAM 25616
    172670000000.341QAM 25617
    182750000000.141QAM 25618
    192830000000.141QAM 25619
    202910000000.141QAM 25620
    212990000000.141QAM 25621
    22307000000040QAM 25622
    233150000000.140QAM 25623
    243230000000.340QAM 25624
    253310000000.540QAM 25625
    263390000000.440QAM 25626
    273470000000.441QAM 25627
    283550000000.541QAM 25628
    293630000000.541QAM 25629
    30371000000-1.141QAM 25630
    31379000000-2.140QAM 25631
    32387000000-2.340QAM 25632

    3.0 Downstream channels

    Channel Locked Status RxMER (dB) Pre RS Errors Post RS Errors
    1Locked4110
    2Locked4050
    3Locked4050
    4Locked4098
    5Locked4057
    6Locked4057
    7Locked4086
    8Locked40127
    9Locked4178
    10Locked4148
    11Locked4188
    12Locked41128
    13Locked4167
    14Locked4199
    15Locked4038
    16Locked4080
    17Locked4180
    18Locked4150
    19Locked4130
    20Locked4160
    21Locked4140
    22Locked4030
    23Locked4060
    24Locked4070
    25Locked40120
    26Locked4050
    27Locked4120
    28Locked4120
    29Locked4110
    30Locked4110
    31Locked4020
    32Locked4000

    3.1 Downstream channels

    Channel Channel Width (MHz) FFT Type Number of Active Subcarriers Modulation (Active Profile) First Active Subcarrier (Hz)
    159944K1840QAM 40961108

    3.1 Downstream channels

    Channel ID Locked Status RxMER Data (dB) PLC Power (dBmV) Corrected errors (Active Profile) Uncorrectable errors (Active Profile)
    159Locked40-3.934647702794307



    3.0 Upstream channels

    Channel Frequency (Hz) Power (dBmV) Symbol Rate (ksps) Modulation Channel ID
    04960000051.35120QAM 641
    14310000050.55120QAM 642
    23660000050.35120QAM 643
    330100000505120QAM 644
    42360000048.85120QAM 645

    3.0 Upstream channels

    Channel Channel Type T1 Timeouts T2 Timeouts T3 Timeouts T4 Timeouts
    0ATDMA01520
    1ATDMA01500
    2ATDMA01500
    3ATDMA01500
    4ATDMA01550

    3.1 Upstream channels

    Channel Channel Width (MHz) Power (dBmV) FFT Type Modulation
    61046.02KQAM 256

    3.1 Upstream channels

    Channel Channel Type Number of Active Subcarriers First Active Subcarrier (Hz) T3 Timeouts T4 Timeouts
    6OFDMA2007400000000



    Network Log

    Time Priority Description
    01-02-2024 01:55:25criticalNo Ranging Response received - T3 time-out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    01-02-2024 01:55:22criticalNo Maintenance Broadcasts for Ranging opportunities received - T2 time-out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    01-02-2024 01:55:00warningTCS Partial Service;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    01-02-2024 01:55:00criticalNo Ranging Response received - T3 time-out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    01-02-2024 01:54:00noticeUS profile assignment change. US Chan ID: 6; Previous Profile: 13; New Profile: 11 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    01-02-2024 01:54:00warningDBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    01-02-2024 01:53:56criticalNo Maintenance Broadcasts for Ranging opportunities received - T2 time-out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    01-02-2024 01:53:56noticeREGISTRATION COMPLETE - Waiting for Operational status
    01-02-2024 01:53:56warningTCS Partial Service;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    01-02-2024 01:53:47warningDynamic Range Window violation
    01-02-2024 01:53:47warningRNG-RSP CCAP Commanded Power Exceeds Value Corresponding to the Top of the DRW;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    01-02-2024 01:53:46warningRNG-RSP CCAP Commanded Power in Excess of 6 dB Below the Value Corresponding to the Top of the DRW;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    01-02-2024 01:53:46warningREG-RSP-MP Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    01-02-2024 01:53:46warningRNG-RSP CCAP Commanded Power in Excess of 6 dB Below the Value Corresponding to the Top of the DRW;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    01-02-2024 01:53:46warningDynamic Range Window violation
    01-02-2024 01:53:46warningDynamic Range Window violation
    01-02-2024 01:53:46warningDynamic Range Window violation
    01-02-2024 01:53:46warningRNG-RSP CCAP Commanded Power in Excess of 6 dB Below the Value Corresponding to the Top of the DRW;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    01-02-2024 01:53:41noticeDS profile assignment change. DS Chan ID: 32; Previous Profile: ; New Profile: 1 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    01-02-2024 01:53:34warningDHCP WARNING - Non-critical field invalid in response ;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    01-02-2024 01:53:31noticeHonoring MDD; IP provisioning mode = IPv4
    01-02-2024 01:50:46criticalSYNC Timing Synchronization failure - Failed to acquire QAM/QPSK symbol timing;;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    01-02-2024 01:50:45criticalSYNC Timing Synchronization failure - Failed to acquire FEC framing;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    01-02-2024 01:32:50criticalSYNC Timing Synchronization failure - Failed to acquire QAM/QPSK symbol timing;;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    01-02-2024 01:32:49criticalSYNC Timing Synchronization failure - Failed to acquire FEC framing;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    01-02-2024 01:32:26criticalSYNC Timing Synchronization failure - Failed to acquire FEC framing;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    01-02-2024 01:32:26criticalSYNC Timing Synchronization failure - Failed to acquire QAM/QPSK symbol timing;;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    01-02-2024 01:24:15criticalSYNC Timing Synchronization failure - Failed to acquire QAM/QPSK symbol timing;;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    01-02-2024 01:24:11warningToD request sent - No Response received;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    01-02-2024 01:24:10criticalReceived Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    01-02-2024 01:23:50criticalReceived Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    01-02-2024 01:23:50criticalSYNC Timing Synchronization failure - Failed to acquire QAM/QPSK symbol timing;;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
  • TiPs1's avatar
    TiPs1
    Tuning in
    12 months ago

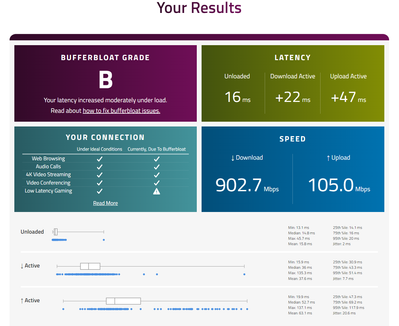

    Bufferbloat Test at 11:25am (01/02/2024)

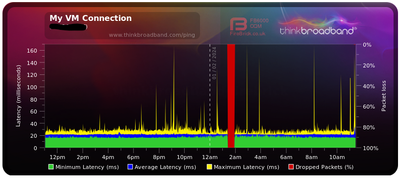

    BQM so far for today 01/02/2024 (11:30am)



  • jpeg1's avatar
    jpeg1
    Alessandro Volta
    12 months ago

    Apart from the gap at 2am which was probably network switching, your BQM isn't bad. Those spikes probably coincide with something else on your own network. Do a couple of speedtests and you'll see spikes like those.

    • TiPs1's avatar
      TiPs1
      Tuning in
      12 months ago

      The BQM is bad enough to affect my gaming online which I said previously has started with these lag spikes within the last 1-2 weeks. Peak times has become a joke and occassional rubber banding on games. Spikes are showing on the BQM when no one is using the broadband ... especially very late at night and early morning it spikes but everyone is asleep. Something has happened within the last 1-2 weeks in my area which is effecting my network now. No changes have been made in my house

  • jpeg1's avatar
    jpeg1
    Alessandro Volta
    12 months ago

    I don't doubt that you are having gaming problems with lagging. I'm only saying that your BQM is not a particularly bad one, and better than many.

  • legacy1's avatar
    legacy1
    Alessandro Volta
    12 months ago

    You think how many packets of coordinated player positioning and firing of a gun happens in just one second that you go from 20mins-40 max ms to 100ms delay and normally more its a problem its the consistency of the connection that the server must depend on some jitter OK the odd spike thats not by much OK but when you push beyond that its a mess.

    Like I know I'm doing everything possible to not cause a ping spike by doing BWM or QoS and being on the low speed to not be hit routers upstream from impacting the flow to me or from me but even now I spike high in BQM at times.

  • TiPs1's avatar
    TiPs1
    Tuning in
    12 months ago

    Stopped the BQM monitor to see if it made a difference. Yet again peak time at evenings just can't play online games without lag spikes.

    I have noticed on my logs I have been getting a lot of T3 errors ....

    3.0 Downstream channels

    Channel Frequency (Hz) Power (dBmV) SNR (dB) Modulation Channel ID
    1235000000141QAM 25613
    21390000002.240QAM 2561
    31470000002.140QAM 2562
    4155000000240QAM 2563
    51630000001.640QAM 2564
    61710000001.440QAM 2565
    71790000001.140QAM 2566
    81870000001.240QAM 2567
    91950000001.441QAM 2568
    102030000001.341QAM 2569
    112110000001.441QAM 25610
    122190000001.241QAM 25611
    132270000001.241QAM 25612
    142430000000.441QAM 25614
    152510000000.241QAM 25615
    162590000000.141QAM 25616
    172670000000.240QAM 25617
    182750000000.141QAM 25618
    19283000000041QAM 25619
    20291000000041QAM 25620
    21299000000041QAM 25621
    223070000000.140QAM 25622
    233150000000.240QAM 25623
    243230000000.440QAM 25624
    253310000000.640QAM 25625
    263390000000.540QAM 25626
    273470000000.541QAM 25627
    283550000000.641QAM 25628
    293630000000.641QAM 25629
    30371000000-1.340QAM 25630
    31379000000-2.240QAM 25631
    32387000000-2.440QAM 25632

    3.0 Downstream channels

    Channel Locked Status RxMER (dB) Pre RS Errors Post RS Errors
    1Locked4120
    2Locked40100
    3Locked402722
    4Locked402934
    5Locked403748
    6Locked402754
    7Locked403753
    8Locked403529
    9Locked414547
    10Locked412449
    11Locked413954
    12Locked414176
    13Locked413649
    14Locked413863
    15Locked413751
    16Locked413333
    17Locked402838
    18Locked413555
    19Locked412231
    20Locked412113
    21Locked412224
    22Locked401526
    23Locked401429
    24Locked403329
    25Locked402435
    26Locked402633
    27Locked412826
    28Locked412860
    29Locked413326
    30Locked402237
    31Locked403538
    32Locked402825

    3.1 Downstream channels

    Channel Channel Width (MHz) FFT Type Number of Active Subcarriers Modulation (Active Profile) First Active Subcarrier (Hz)
    159944K1840QAM 40961108

    3.1 Downstream channels

    Channel ID Locked Status RxMER Data (dB) PLC Power (dBmV) Corrected errors (Active Profile) Uncorrectable errors (Active Profile)
    159Locked40-4.0306061801213004



    3.0 Upstream channels

    Channel Frequency (Hz) Power (dBmV) Symbol Rate (ksps) Modulation Channel ID
    04960000051.85120QAM 641
    14310000050.55120QAM 642
    23660000050.85120QAM 643
    330100000505120QAM 644
    42360000048.85120QAM 645

    3.0 Upstream channels

    Channel Channel Type T1 Timeouts T2 Timeouts T3 Timeouts T4 Timeouts
    0ATDMA01520
    1ATDMA01500
    2ATDMA01500
    3ATDMA015530
    4ATDMA01550

    3.1 Upstream channels

    Channel Channel Width (MHz) Power (dBmV) FFT Type Modulation
    61046.22KQAM 256

    3.1 Upstream channels

    Channel Channel Type Number of Active Subcarriers First Active Subcarrier (Hz) T3 Timeouts T4 Timeouts
    6OFDMA20074000000440



    Network Log

    Time Priority Description
    06-02-2024 03:12:53noticeUS profile assignment change. US Chan ID: 6; Previous Profile: 13; New Profile: 11 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    06-02-2024 03:12:53warningDBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    06-02-2024 02:42:17warningDBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    06-02-2024 02:42:17noticeUS profile assignment change. US Chan ID: 6; Previous Profile: 12 13; New Profile: 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    06-02-2024 02:41:53noticeUS profile assignment change. US Chan ID: 6; Previous Profile: 11 13; New Profile: 12 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    06-02-2024 02:41:53warningDBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    06-02-2024 02:41:32criticalNo Ranging Response received - T3 time-out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    06-02-2024 02:41:31criticalRanging Request Retries exhausted;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    06-02-2024 02:41:31critical16 consecutive T3 timeouts while trying to range on upstream channel 8;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    06-02-2024 02:41:02criticalNo Ranging Response received - T3 time-out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    06-02-2024 02:31:20critical16 consecutive T3 timeouts while trying to range on upstream channel 3;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    06-02-2024 02:31:20criticalUnicast Maintenance Ranging attempted - No response - Retries exhausted;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    06-02-2024 02:17:21criticalStarted Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    06-02-2024 02:15:56noticeCM-STATUS message sent. Event Type Code: 4; Chan ID: 1 2 3 4 5 6 7 8 9 10 11 12 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: N/A.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS
    06-02-2024 02:15:25criticalStarted Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    06-02-2024 02:15:23warningMDD message timeout;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    06-02-2024 02:10:51criticalStarted Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    06-02-2024 02:09:22noticeCM-STATUS message sent. Event Type Code: 4; Chan ID: 1 2 3 4 5 6 7 8 9 10 11 12 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: N/A.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS
    06-02-2024 02:08:54criticalStarted Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    06-02-2024 02:08:52warningMDD message timeout;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    06-02-2024 02:08:51criticalStarted Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    06-02-2024 00:41:55warningDBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    06-02-2024 00:41:37criticalNo Ranging Response received - T3 time-out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    06-02-2024 00:41:37criticalRanging Request Retries exhausted;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    06-02-2024 00:41:37critical16 consecutive T3 timeouts while trying to range on upstream channel 8;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    06-02-2024 00:40:55criticalNo Ranging Response received - T3 time-out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    03-02-2024 20:30:47warningDBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    03-02-2024 11:18:30errorDHCP RENEW WARNING - Field invalid in response v4 option;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    02-02-2024 12:20:31noticeUS profile assignment change. US Chan ID: 6; Previous Profile: 12 13; New Profile: 11 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    02-02-2024 12:20:31warningDBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    02-02-2024 11:18:15noticeUS profile assignment change. US Chan ID: 6; Previous Profile: 11 13; New Profile: 12 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    02-02-2024 11:18:15warningDBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
  • TiPs1's avatar
    TiPs1
    Tuning in
    12 months ago

    I have been hit with this twice in the past 7-10 days. Previous time it asked me to factory reset my router which made no difference.



    • Beth_G's avatar
      Beth_G
      Forum Team
      12 months ago

      Hi TiPs1

      Thanks for your post and for including all of your screenshots, that's really helpful.

      Whilst your BQM graph looks very stable, it looks like your upstream power levels are out of the normal parameters, which will explain why the issue is most visible when gaming online.

      There's no known outages that are causing this, so we'll need to book in an engineer visit for you.

      I've dropped you a PM so I can help further.

    • MHstreamer's avatar
      MHstreamer
      Joining in
      12 months ago

      Mate, you are not alone.  I have had these issues since December 2023.  they have been out to my house twice once in January and today.  they first replaced the "booster box" as this apparently interfers with superhub 5 signal.  they also updates the point the signal comes into the building (I live in a block of flats).  Still lagging like crazy.  today they replaced the router.  I'm still lagging like crazy.



      If I take mu equipment to my neighbours who is also VM I have no issues at all.  I am paying for a 512GB download because I game, stream about mental health and my ptsd treatment is done via NHS video call.  there is always lag and stuttering all day everyday.  I used cat7 cables and have switched out to my cat5e and cat6e cables which were all working perfectly prior to my upgrading to cat 7.  again these cables and my xbox, laptop and px all work without issue in my neighbor flat.  the issues is 100% to do with the cables ran from the entrance to the block of flats to my router.



      VM run diagnostics.  no issue in my postcode area.  no issue with bill payment.  no issue with equipment.  we are having problems reaching your router.  hard reset the router.  the issue is just as bad if not worse than before.  I will have to allow them until midafternoon tomorrow for the 24 hours the new equipment needs to settle.  its nonsense.  absolutely nonsense.  it is not only affecting my use of services.  it has a direct impact on my mental health and is interfering with my mental health treatment. It's absolutely disgusting.

      • TiPs1's avatar
        TiPs1
        Tuning in
        12 months ago

        Tech visted me 2 days ago. replaced a few of my cables and replaced the hub and removed a metal thing that was attached to the cable which he said wasn't needed. Can't fault the tech who visited guy was brilliant and wanted to rule out a faulty hub due to errors on the hub not clearing and said to give it a few days to see how the power levels go. Going to monitor it until the weekend I think and see if it settles but so far I think its got worse especially gaming last night. Rubberbanding effect online just unplayable and yet again happened around 7:30pm-8pm and continued until I turned it off around 9pm.



        3.0 Upstream channels

        Channel Frequency (Hz) Power (dBmV) Symbol Rate (ksps) Modulation Channel ID
        04960000051.55120QAM 641
        14310000050.35120QAM 642
        23660000049.55120QAM 643
        330100000495120QAM 644
        423600000495120QAM 645

        3.0 Upstream channels

        Channel Channel Type T1 Timeouts T2 Timeouts T3 Timeouts T4 Timeouts
        0ATDMA0000
        1ATDMA0000
        2ATDMA0000
        3ATDMA0000
        4ATDMA0000

        3.1 Upstream channels

        Channel Channel Width (MHz) Power (dBmV) FFT Type Modulation
        61045.72KQAM 256

        3.1 Upstream channels

        Channel Channel Type Number of Active Subcarriers First Active Subcarrier (Hz) T3 Timeouts T4 Timeouts
        6OFDMA2007400000020



        Network Log

        Time Priority Description
        08-02-2024 19:37:28criticalNo Ranging Response received - T3 time-out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
        08-02-2024 05:51:20noticeUS profile assignment change. US Chan ID: 6; Previous Profile: 12 13; New Profile: 11 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
        08-02-2024 05:51:20warningDBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
        08-02-2024 04:45:20noticeUS profile assignment change. US Chan ID: 6; Previous Profile: 11 13; New Profile: 12 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
        08-02-2024 04:45:20warningDBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
        07-02-2024 19:56:54noticeUS profile assignment change. US Chan ID: 6; Previous Profile: 13; New Profile: 11 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
        07-02-2024 19:56:54warningDBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
        07-02-2024 19:26:20warningDBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
        07-02-2024 19:26:20noticeUS profile assignment change. US Chan ID: 6; Previous Profile: 12 13; New Profile: 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
        07-02-2024 19:25:56warningDBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
        07-02-2024 19:25:56noticeUS profile assignment change. US Chan ID: 6; Previous Profile: 11 13; New Profile: 12 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
        07-02-2024 17:37:42noticeUS profile assignment change. US Chan ID: 6; Previous Profile: 13; New Profile: 11 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
        07-02-2024 17:37:42warningDBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
        07-02-2024 17:37:38noticeREGISTRATION COMPLETE - Waiting for Operational status
        07-02-2024 17:37:32warningDynamic Range Window violation
        07-02-2024 17:37:32warningRNG-RSP CCAP Commanded Power in Excess of 6 dB Below the Value Corresponding to the Top of the DRW;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
        07-02-2024 17:37:32warningREG-RSP-MP Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
        07-02-2024 17:37:32warningRNG-RSP CCAP Commanded Power in Excess of 6 dB Below the Value Corresponding to the Top of the DRW;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
        07-02-2024 17:37:32warningDynamic Range Window violation
        07-02-2024 17:37:32warningRNG-RSP CCAP Commanded Power in Excess of 6 dB Below the Value Corresponding to the Top of the DRW;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
        07-02-2024 17:37:32warningDynamic Range Window violation
        07-02-2024 17:37:32warningRNG-RSP CCAP Commanded Power Exceeds Value Corresponding to the Top of the DRW;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
        07-02-2024 17:37:32warningDynamic Range Window violation
        07-02-2024 17:37:27noticeDS profile assignment change. DS Chan ID: 32; Previous Profile: ; New Profile: 1 2 4.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
        07-02-2024 17:37:19warningDHCP WARNING - Non-critical field invalid in response ;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
        07-02-2024 17:37:17noticeHonoring MDD; IP provisioning mode = IPv4
        07-02-2024 17:37:01criticalSYNC Timing Synchronization failure - Failed to acquire QAM/QPSK symbol timing;;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
        07-02-2024 17:37:00criticalCable Modem Reboot because of - Reboot Timezone Change
        07-02-2024 17:34:05criticalSYNC Timing Synchronization failure - Failed to acquire QAM/QPSK symbol timing;;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
        07-02-2024 17:33:59criticalNo Ranging Response received - T3 time-out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
        07-02-2024 17:33:54criticalSYNC Timing Synchronization failure - Failed to acquire QAM/QPSK symbol timing;;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
        07-02-2024 17:33:53criticalCable Modem Reboot because of - pin-reset
