Hi, Over the last 1-2 weeks I have noticed I have started getting a lag on my hard wired connection on Xbox on the likes of Call of Duty and kids having issues on Fortnite. I have since ran a BQM for the last few days and noticed I am getting random spikes in latency which roughly matches the time we have issues while gaming and getting lag spikes.I am not sure if its a network issue or what. I have checked the cable in my house which is only like 1m long as the entry point is right next to the router and the cable is tight. I have even changed ethernet cables just as a precaution but still no change.Please see below my BQMs for the past few days and my router stats, hopefully its a simple fix (I have rebooted the router etc which hasn't helped. I even disconnected the VM cable and reconnected but nope.I have also noticed in the Hub 5 log over the last day I have a few entries saying: DBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided ValueHub 5 with 1gig connection.25/01/202426/01/202427/01/2024 (Red will be when I disconnected everything and made sure all cables were secure)28/01/202429/01/2024 (until 11:40am) 3.0 Downstream channelsChannel Frequency (Hz) Power (dBmV) SNR (dB) Modulation Channel ID 1427000000-1.840QAM 2563722110000001.841QAM 2561032190000001.641QAM 2561142270000001.541QAM 2561252350000001.341QAM 2561362430000000.741QAM 2561472510000000.140QAM 2561582590000000.240QAM 2561692670000000.641QAM 25617102750000000.440QAM 25618112830000000.441QAM 25619122910000000.441QAM 25620132990000000.441QAM 25621143070000000.341QAM 25622153150000000.240QAM 25623163230000000.140QAM 25624173310000000.240QAM 25625183390000000.240QAM 25626193470000000.241QAM 25627203550000000.341QAM 25628213630000000.341QAM 2562922371000000-141QAM 2563023379000000-1.840QAM 2563124387000000-240QAM 2563225395000000-240QAM 2563326403000000-1.940QAM 2563427411000000-2.140QAM 2563528419000000-240QAM 2563629435000000-240QAM 2563830443000000-1.940QAM 2563931451000000-1.640QAM 256403.0 Downstream channelsChannel Locked Status RxMER (dB) Pre RS Errors Post RS Errors 1Locked40002Locked41003Locked41004Locked41005Locked41006Locked41007Locked40008Locked40009Locked410010Locked400011Locked410012Locked410013Locked410014Locked410015Locked400016Locked400017Locked400018Locked400019Locked411020Locked410021Locked411022Locked410023Locked402024Locked401025Locked400026Locked400027Locked401028Locked401029Locked404030Locked403031Locked40003.1 Downstream channelsChannel Channel Width (MHz) FFT Type Number of Active Subcarriers Modulation (Active Profile) First Active Subcarrier (Hz) 159944K1840QAM 409611083.1 Downstream channelsChannel ID Locked Status RxMER Data (dB) PLC Power (dBmV) Corrected errors (Active Profile) Uncorrectable errors (Active Profile) 159Locked40-3.731204976857152 3.0 Upstream channelsChannel Frequency (Hz) Power (dBmV) Symbol Rate (ksps) Modulation Channel ID 04960000051.55120QAM 64114310000050.85120QAM 64223660000050.55120QAM 643330100000505120QAM 644423600000495120QAM 6453.0 Upstream channelsChannel Channel Type T1 Timeouts T2 Timeouts T3 Timeouts T4 Timeouts 0ATDMA00001ATDMA00002ATDMA00003ATDMA00004ATDMA00003.1 Upstream channelsChannel Channel Width (MHz) Power (dBmV) FFT Type Modulation 61046.02KQAM 2563.1 Upstream channelsChannel Channel Type Number of Active Subcarriers First Active Subcarrier (Hz) T3 Timeouts T4 Timeouts 6OFDMA20074000000100

Network LogTime Priority Description 28-01-2024 19:30:55warningDBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;28-01-2024 19:30:55noticeUS profile assignment change. US Chan ID: 6; Previous Profile: 12 13; New Profile: 11 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;28-01-2024 18:21:34noticeUS profile assignment change. US Chan ID: 6; Previous Profile: 11 13; New Profile: 12 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;28-01-2024 18:21:34warningDBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;28-01-2024 14:58:45noticeUS profile assignment change. US Chan ID: 6; Previous Profile: 12 13; New Profile: 11 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;28-01-2024 14:58:45warningDBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;28-01-2024 13:50:07noticeUS profile assignment change. US Chan ID: 6; Previous Profile: 11 13; New Profile: 12 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;28-01-2024 13:50:07warningDBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;28-01-2024 01:51:53noticeUS profile assignment change. US Chan ID: 6; Previous Profile: 13; New Profile: 11 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;28-01-2024 01:51:53warningDBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;28-01-2024 01:21:20noticeUS profile assignment change. US Chan ID: 6; Previous Profile: 12 13; New Profile: 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;28-01-2024 01:21:20warningDBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;28-01-2024 01:20:55warningDBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;28-01-2024 01:20:55noticeUS profile assignment change. US Chan ID: 6; Previous Profile: 11 13; New Profile: 12 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;28-01-2024 01:20:31warningDBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;28-01-2024 01:20:04criticalNo Ranging Response received - T3 time-out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;28-01-2024 01:19:54criticalStarted Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;27-01-2024 13:34:02warningDBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;27-01-2024 13:34:02noticeUS profile assignment change. US Chan ID: 6; Previous Profile: 13; New Profile: 11 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;27-01-2024 13:33:58noticeREGISTRATION COMPLETE - Waiting for Operational status27-01-2024 13:33:53warningDynamic Range Window violation27-01-2024 13:33:53warningRNG-RSP CCAP Commanded Power Exceeds Value Corresponding to the Top of the DRW;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;27-01-2024 13:33:53warningRNG-RSP CCAP Commanded Power in Excess of 6 dB Below the Value Corresponding to the Top of the DRW;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;27-01-2024 13:33:53warningDynamic Range Window violation27-01-2024 13:33:53warningDynamic Range Window violation27-01-2024 13:33:53warningRNG-RSP CCAP Commanded Power in Excess of 6 dB Below the Value Corresponding to the Top of the DRW;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;27-01-2024 13:33:52warningREG-RSP-MP Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;27-01-2024 13:33:46noticeDS profile assignment change. DS Chan ID: 32; Previous Profile: ; New Profile: 1 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;27-01-2024 13:33:39warningDHCP WARNING - Non-critical field invalid in response ;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;27-01-2024 13:33:37noticeHonoring MDD; IP provisioning mode = IPv427-01-2024 13:33:21criticalCable Modem Reboot because of - HW or Power-On Reset27-01-2024 13:33:21criticalSYNC Timing Synchronization failure - Failed to acquire QAM/QPSK symbol timing;;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;

Just to add, I have also checked the service status phone number and online and no faults for broadband have been raised in my area.I just find it strange that this has only happened within the last 1-2 weeks which is making me think something has been done in the area.

Went on the Virgin Media website last night to check again the service status and to check for any faults on my line. It prompted I had to factory reset my hub for some reason which I have done. After the reset the connection was even worse and to the point I just stopped playing online games as no matter what game I played I was getting spikes of lag. Looking at the graph it also shows spikes which I am guessing is what I was experiecing. Can someone from Virgin please take a look at my connection and my area as this has only started happening within the last 1-2 weeks! - Connection was perfect before then and nothing in my home has changed. Always have been hardwired.Latest Graph for the last 24hrs

Disapointed someone from Virgin has still not messaged regarding this issue I am having. Its clear as day its mostly happening at peak times which is making me think its a Utilisation issue as its mostly always happening during peak times. See below my latest BQM results and also my latest router logs and power levels.Tuesday 30/01/2024Wednesday 31/01/2024Thursday 01/02/2024 (upto 8am) (Some sort of outage during the night)3.0 Downstream channelsChannel Frequency (Hz) Power (dBmV) SNR (dB) Modulation Channel ID 12350000001.141QAM 2561321390000002.340QAM 256131470000002.240QAM 256241550000002.140QAM 256351630000001.740QAM 256461710000001.540QAM 256571790000001.340QAM 256681870000001.440QAM 256791950000001.541QAM 2568102030000001.441QAM 2569112110000001.541QAM 25610122190000001.341QAM 25611132270000001.341QAM 25612142430000000.541QAM 25614152510000000.140QAM 25615162590000000.140QAM 25616172670000000.341QAM 25617182750000000.141QAM 25618192830000000.141QAM 25619202910000000.141QAM 25620212990000000.141QAM 2562122307000000040QAM 25622233150000000.140QAM 25623243230000000.340QAM 25624253310000000.540QAM 25625263390000000.440QAM 25626273470000000.441QAM 25627283550000000.541QAM 25628293630000000.541QAM 2562930371000000-1.141QAM 2563031379000000-2.140QAM 2563132387000000-2.340QAM 256323.0 Downstream channelsChannel Locked Status RxMER (dB) Pre RS Errors Post RS Errors 1Locked41102Locked40503Locked40504Locked40985Locked40576Locked40577Locked40868Locked401279Locked417810Locked414811Locked418812Locked4112813Locked416714Locked419915Locked403816Locked408017Locked418018Locked415019Locked413020Locked416021Locked414022Locked403023Locked406024Locked407025Locked4012026Locked405027Locked412028Locked412029Locked411030Locked411031Locked402032Locked40003.1 Downstream channelsChannel Channel Width (MHz) FFT Type Number of Active Subcarriers Modulation (Active Profile) First Active Subcarrier (Hz) 159944K1840QAM 409611083.1 Downstream channelsChannel ID Locked Status RxMER Data (dB) PLC Power (dBmV) Corrected errors (Active Profile) Uncorrectable errors (Active Profile) 159Locked40-3.934647702794307 3.0 Upstream channelsChannel Frequency (Hz) Power (dBmV) Symbol Rate (ksps) Modulation Channel ID 04960000051.35120QAM 64114310000050.55120QAM 64223660000050.35120QAM 643330100000505120QAM 64442360000048.85120QAM 6453.0 Upstream channelsChannel Channel Type T1 Timeouts T2 Timeouts T3 Timeouts T4 Timeouts 0ATDMA015201ATDMA015002ATDMA015003ATDMA015004ATDMA015503.1 Upstream channelsChannel Channel Width (MHz) Power (dBmV) FFT Type Modulation 61046.02KQAM 2563.1 Upstream channelsChannel Channel Type Number of Active Subcarriers First Active Subcarrier (Hz) T3 Timeouts T4 Timeouts 6OFDMA2007400000000 Network LogTime Priority Description 01-02-2024 01:55:25criticalNo Ranging Response received - T3 time-out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;01-02-2024 01:55:22criticalNo Maintenance Broadcasts for Ranging opportunities received - T2 time-out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;01-02-2024 01:55:00warningTCS Partial Service;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;01-02-2024 01:55:00criticalNo Ranging Response received - T3 time-out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;01-02-2024 01:54:00noticeUS profile assignment change. US Chan ID: 6; Previous Profile: 13; New Profile: 11 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;01-02-2024 01:54:00warningDBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;01-02-2024 01:53:56criticalNo Maintenance Broadcasts for Ranging opportunities received - T2 time-out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;01-02-2024 01:53:56noticeREGISTRATION COMPLETE - Waiting for Operational status01-02-2024 01:53:56warningTCS Partial Service;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;01-02-2024 01:53:47warningDynamic Range Window violation01-02-2024 01:53:47warningRNG-RSP CCAP Commanded Power Exceeds Value Corresponding to the Top of the DRW;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;01-02-2024 01:53:46warningRNG-RSP CCAP Commanded Power in Excess of 6 dB Below the Value Corresponding to the Top of the DRW;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;01-02-2024 01:53:46warningREG-RSP-MP Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;01-02-2024 01:53:46warningRNG-RSP CCAP Commanded Power in Excess of 6 dB Below the Value Corresponding to the Top of the DRW;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;01-02-2024 01:53:46warningDynamic Range Window violation01-02-2024 01:53:46warningDynamic Range Window violation01-02-2024 01:53:46warningDynamic Range Window violation01-02-2024 01:53:46warningRNG-RSP CCAP Commanded Power in Excess of 6 dB Below the Value Corresponding to the Top of the DRW;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;01-02-2024 01:53:41noticeDS profile assignment change. DS Chan ID: 32; Previous Profile: ; New Profile: 1 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;01-02-2024 01:53:34warningDHCP WARNING - Non-critical field invalid in response ;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;01-02-2024 01:53:31noticeHonoring MDD; IP provisioning mode = IPv401-02-2024 01:50:46criticalSYNC Timing Synchronization failure - Failed to acquire QAM/QPSK symbol timing;;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;01-02-2024 01:50:45criticalSYNC Timing Synchronization failure - Failed to acquire FEC framing;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;01-02-2024 01:32:50criticalSYNC Timing Synchronization failure - Failed to acquire QAM/QPSK symbol timing;;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;01-02-2024 01:32:49criticalSYNC Timing Synchronization failure - Failed to acquire FEC framing;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;01-02-2024 01:32:26criticalSYNC Timing Synchronization failure - Failed to acquire FEC framing;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;01-02-2024 01:32:26criticalSYNC Timing Synchronization failure - Failed to acquire QAM/QPSK symbol timing;;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;01-02-2024 01:24:15criticalSYNC Timing Synchronization failure - Failed to acquire QAM/QPSK symbol timing;;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;01-02-2024 01:24:11warningToD request sent - No Response received;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;01-02-2024 01:24:10criticalReceived Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;01-02-2024 01:23:50criticalReceived Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;01-02-2024 01:23:50criticalSYNC Timing Synchronization failure - Failed to acquire QAM/QPSK symbol timing;;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;

Bufferbloat Test at 11:25am (01/02/2024) BQM so far for today 01/02/2024 (11:30am)

TiPs1

Tuning in

2 years ago

Lag issues which have only recently started happening!

Hi, Over the last 1-2 weeks I have noticed I have started getting a lag on my hard wired connection on Xbox on the likes of Call of Duty and kids having issues on Fortnite. I have since ran a BQM for the last few days and noticed I am getting random spikes in latency which roughly matches the time we have issues while gaming and getting lag spikes.

I am not sure if its a network issue or what. I have checked the cable in my house which is only like 1m long as the entry point is right next to the router and the cable is tight. I have even changed ethernet cables just as a precaution but still no change.

Please see below my BQMs for the past few days and my router stats, hopefully its a simple fix (I have rebooted the router etc which hasn't helped. I even disconnected the VM cable and reconnected but nope.

I have also noticed in the Hub 5 log over the last day I have a few entries saying: DBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value

Hub 5 with 1gig connection.

25/01/2024

26/01/2024

27/01/2024 (Red will be when I disconnected everything and made sure all cables were secure)

28/01/2024

29/01/2024 (until 11:40am)

3.0 Downstream channels

Channel Frequency (Hz) Power (dBmV) SNR (dB) Modulation Channel ID

1	427000000	-1.8	40	QAM 256	37
2	211000000	1.8	41	QAM 256	10
3	219000000	1.6	41	QAM 256	11
4	227000000	1.5	41	QAM 256	12
5	235000000	1.3	41	QAM 256	13
6	243000000	0.7	41	QAM 256	14
7	251000000	0.1	40	QAM 256	15
8	259000000	0.2	40	QAM 256	16
9	267000000	0.6	41	QAM 256	17
10	275000000	0.4	40	QAM 256	18
11	283000000	0.4	41	QAM 256	19
12	291000000	0.4	41	QAM 256	20
13	299000000	0.4	41	QAM 256	21
14	307000000	0.3	41	QAM 256	22
15	315000000	0.2	40	QAM 256	23
16	323000000	0.1	40	QAM 256	24
17	331000000	0.2	40	QAM 256	25
18	339000000	0.2	40	QAM 256	26
19	347000000	0.2	41	QAM 256	27
20	355000000	0.3	41	QAM 256	28
21	363000000	0.3	41	QAM 256	29
22	371000000	-1	41	QAM 256	30
23	379000000	-1.8	40	QAM 256	31
24	387000000	-2	40	QAM 256	32
25	395000000	-2	40	QAM 256	33
26	403000000	-1.9	40	QAM 256	34
27	411000000	-2.1	40	QAM 256	35
28	419000000	-2	40	QAM 256	36
29	435000000	-2	40	QAM 256	38
30	443000000	-1.9	40	QAM 256	39
31	451000000	-1.6	40	QAM 256	40

3.0 Downstream channels

Channel Locked Status RxMER (dB) Pre RS Errors Post RS Errors

1	Locked	40	0
2	Locked	41	0
3	Locked	41	0
4	Locked	41	0
5	Locked	41	0
6	Locked	41	0
7	Locked	40	0
8	Locked	40	0
9	Locked	41	0
10	Locked	40	0
11	Locked	41	0
12	Locked	41	0
13	Locked	41	0
14	Locked	41	0
15	Locked	40	0
16	Locked	40	0
17	Locked	40	0
18	Locked	40	0
19	Locked	41	1
20	Locked	41	0
21	Locked	41	1
22	Locked	41	0
23	Locked	40	2
24	Locked	40	1
25	Locked	40	0
26	Locked	40	0
27	Locked	40	1
28	Locked	40	1
29	Locked	40	4
30	Locked	40	3
31	Locked	40	0

3.1 Downstream channels

Channel Channel Width (MHz) FFT Type Number of Active Subcarriers Modulation (Active Profile) First Active Subcarrier (Hz)

159

1840

QAM 4096

1108

3.1 Downstream channels

Channel ID Locked Status RxMER Data (dB) PLC Power (dBmV) Corrected errors (Active Profile) Uncorrectable errors (Active Profile)

159

Locked

-3.7

3120497685

7152

3.0 Upstream channels

Channel Frequency (Hz) Power (dBmV) Symbol Rate (ksps) Modulation Channel ID

0	49600000	51.5	5120	QAM 64	1
1	43100000	50.8	5120	QAM 64	2
2	36600000	50.5	5120	QAM 64	3
3	30100000	50	5120	QAM 64	4
4	23600000	49	5120	QAM 64	5

3.0 Upstream channels

Channel Channel Type T1 Timeouts T2 Timeouts T3 Timeouts T4 Timeouts

0	ATDMA	0	0	0	0
1	ATDMA	0	0	0	0
2	ATDMA	0	0	0	0
3	ATDMA	0	0	0	0
4	ATDMA	0	0	0	0

3.1 Upstream channels

Channel Channel Width (MHz) Power (dBmV) FFT Type Modulation

46.0

QAM 256

3.1 Upstream channels

Channel Channel Type Number of Active Subcarriers First Active Subcarrier (Hz) T3 Timeouts T4 Timeouts

OFDMA

200

74000000

22 Replies

TiPs1
Tuning in
2 years ago

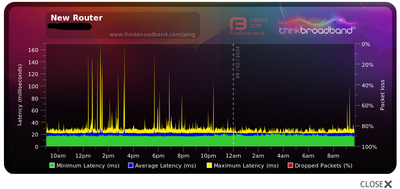

Started a new BQM monitor once I detected I was having the issues still.
legacy1
Alessandro Volta
2 years ago
BQM to hub shows nothing much might be as good as it gets for you so get your own router with 1Gb ports to test BQM past the hub in modem mode
- TiPs1
  Tuning in
  2 years ago
  Considering the fact the hub worked perfectly fine a couple of weeks ago, I won't be buying my own router to get the connection back to how it was lol. It has already been confirmed by forum staff and also the tech who visited that the upstream power levels are too high.
legacy1
Alessandro Volta
2 years ago
If upstream power levels was the problem don't you think your BQM would look worse?
- TiPs1
  Tuning in
  2 years ago
  I don't have a clue which is why I am here asking for help to get the connection back to how it was a few weeks ago. Clearly something has happened within the network. Tech did confirm the hub had stored errors which never cleared so replaced the hub just incase that was to blame and hoped to see the power levels drop within 24hours which they haven't.
  Upstream power levels currently
  3.0 Upstream channels
  Channel Frequency (Hz) Power (dBmV) Symbol Rate (ksps) Modulation Channel ID
  0 49600000 51.5 5120 QAM 64 1
  1 43100000 50.3 5120 QAM 64 2
  2 36600000 49.5 5120 QAM 64 3
  3 30100000 49 5120 QAM 64 4
  4 23600000 49 5120 QAM 64 5

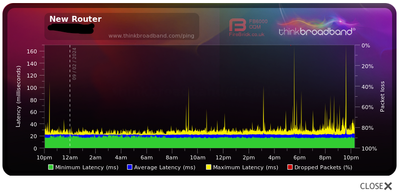

  BQM for the last 24hours.
TiPs1
Tuning in
2 years ago
Tech visited this morning again and discovered a splitter in the box outside that wasn't needed and could be causing issues. Splitter removed and upstream power levels have dropped. Hopefully this has resolved the issue as tech advised max power level should be 49dBmV. So I will find out at peak times if its fixed but hoping it is.
3.0 Upstream channels
Channel Frequency (Hz) Power (dBmV) Symbol Rate (ksps) Modulation Channel ID
0 49600000 47.8 5120 QAM 64 1
1 43100000 47 5120 QAM 64 2
2 36600000 46.3 5120 QAM 64 3
3 30100000 45.8 5120 QAM 64 4
4 23600000 45.8 5120 QAM 64 5
3.0 Upstream channels
Channel Channel Type T1 Timeouts T2 Timeouts T3 Timeouts T4 Timeouts
0 ATDMA 0 0 0 0
1 ATDMA 0 0 0 0
2 ATDMA 0 0 0 0
3 ATDMA 0 0 0 0
4 ATDMA 0 0 0 0
3.1 Upstream channels
Channel Channel Width (MHz) Power (dBmV) FFT Type Modulation
6 10 42.5 2K QAM 256
3.1 Upstream channels
Channel Channel Type Number of Active Subcarriers First Active Subcarrier (Hz) T3 Timeouts T4 Timeouts
6 OFDMA 200 74000000 0 0
- Matthew_ML
  Forum Team
  2 years ago
  Thank you for reaching out and letting us know this,

  How has it been since this work, everything okay now?
  - TiPs1
    Tuning in
    2 years ago
    Everything has been perfect since. Thank you
