Forum Discussion

JoeC87's avatar
JoeC87
On our wavelength
4 days ago

Miserable latency, Sperodic packet loss, Post RS Errors, Pre RS Errors - HUB5 1gb service

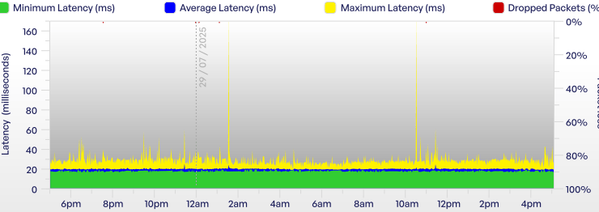

So i've been experiancing poor latency maximum latency on BQM is generally 60+ consistantly, overall very strange gaming performance.

for some reason BQM hasn't logged anything since 21st? fully dropped for week+ but i've had internet, so unsure whats happened there

anyway I've tried several chats over live chat, who have said nothing is wrong and to try the usual reboot/rest - Yes all done prior to going onto chat

these are my hub5 network stats after around 1day uptime (rebooted over weekend)

3.0 Downstream channels

Channel    Frequency (Hz)    Power (dBmV)    SNR (dB)    Modulation    Channel ID
1    203000000    4.3    41    QAM 256    9
2    139000000    4.2    42    QAM 256    1
3    147000000    4.2    42    QAM 256    2
4    155000000    4    41    QAM 256    3
5    163000000    4.1    41    QAM 256    4
6    171000000    3.9    41    QAM 256    5
7    179000000    3.9    41    QAM 256    6
8    187000000    4.1    41    QAM 256    7
9    195000000    4.2    41    QAM 256    8
10    211000000    4.6    42    QAM 256    10
11    219000000    4.4    42    QAM 256    11
12    227000000    4.5    42    QAM 256    12
13    235000000    4.4    42    QAM 256    13
14    243000000    4.4    42    QAM 256    14
15    251000000    4.3    42    QAM 256    15
16    259000000    4    42    QAM 256    16
17    267000000    4    42    QAM 256    17
18    275000000    3.9    42    QAM 256    18
19    283000000    3.9    42    QAM 256    19
20    291000000    3.6    42    QAM 256    20
21    299000000    3.4    42    QAM 256    21
22    307000000    3.4    42    QAM 256    22
23    315000000    3.2    42    QAM 256    23
24    323000000    3.2    42    QAM 256    24
25    331000000    2.8    42    QAM 256    25
26    339000000    3.2    41    QAM 256    26
27    347000000    3.4    42    QAM 256    27
28    355000000    3.4    42    QAM 256    28
29    363000000    3.7    42    QAM 256    29
30    371000000    3.6    42    QAM 256    30
31    379000000    3.8    42    QAM 256    31
32    387000000    3.9    42    QAM 256    32

3.0 Downstream channels

Channel    Locked Status    RxMER (dB)    Pre RS Errors    Post RS Errors
1    Locked    41    182    30
2    Locked    42    1293    227
3    Locked    42    196    9
4    Locked    41    111    0
5    Locked    41    449    53
6    Locked    41    214    0
7    Locked    41    113    0
8    Locked    41    137    28
9    Locked    41    210    27
10    Locked    42    103    28
11    Locked    42    155    2
12    Locked    42    31    0
13    Locked    42    17    0
14    Locked    42    2    0
15    Locked    42    5    0
16    Locked    42    6    0
17    Locked    42    19    0
18    Locked    42    7    0
19    Locked    42    0    0
20    Locked    42    0    0
21    Locked    42    1    0
22    Locked    42    0    0
23    Locked    42    0    0
24    Locked    42    1    0
25    Locked    42    0    0
26    Locked    41    0    0
27    Locked    42    1    0
28    Locked    42    0    0
29    Locked    42    0    0
30    Locked    42    0    0
31    Locked    42    0    0
32    Locked    42    0    0

3.1 Downstream channels

Channel    Channel Width (MHz)    FFT Type    Number of Active Subcarriers    Modulation (Active Profile)    First Active Subcarrier (Hz)
159    94    4K    1840    QAM 4096    1108

3.1 Downstream channels

Channel ID    Locked Status    RxMER Data (dB)    PLC Power (dBmV)    Corrected errors (Active Profile)    Uncorrectable errors (Active Profile)
159    Locked    43    4.9    1778161557    3309

3.0 Upstream channels

Channel    Frequency (Hz)    Power (dBmV)    Symbol Rate (ksps)    Modulation    Channel ID
0    60300000    37    5120    QAM 64    9
1    53700000    37.5    5120    QAM 64    10
2    46200000    37    5120    QAM 64    11
3    39400000    37    5120    QAM 64    12
4    32600000    37    5120    QAM 64    13
5    23600000    37.5    5120    QAM 64    14

3.0 Upstream channels

Channel    Channel Type    T1 Timeouts    T2 Timeouts    T3 Timeouts    T4 Timeouts
0    ATDMA    0    0    0    0
1    ATDMA    0    0    0    0
2    ATDMA    0    0    0    0
3    ATDMA    0    0    0    0
4    ATDMA    0    0    0    0
5    ATDMA    0    0    0    0



I've seen my HUB 5 have pre errors, but never seen so many Post errors.. these numbers are pretty low vs what i saw before a reboot some were in thousands.

my PC is fully wired to the hub.

if any expert on these stats take a look and give some guidance it would be appreicated, as I'm honestly at my wits end with VM broadband, yes it has speed but my word gaming performance feels absolutely awful until my area has true FTTP i'm stuck with HFC or completely kill my overall speeds with another ISP.



13 Replies

  • I've had luck using a VPN to "fix" the latency issue.

     While this is not a permanent solution to the problem, it may help you rule out a hardware fault.

    • legacy1's avatar
      legacy1
      Alessandro Volta

      its likely a routing problem and Docsis is fine

      ping -t 194.168.4.100

  • Client62's avatar
    Client62
    Alessandro Volta

    3.1 Downstream channels

    Channel ID    Locked Status    RxMER Data (dB)    PLC Power (dBmV)    Corrected errors (Active Profile)    Uncorrectable errors (Active Profile)
    159    Locked    43    4.9    1778161557    3309

    Note the hard errors on the 3.1 downstream channel.

    • JoeC87's avatar
      JoeC87
      On our wavelength

      I saw this as i was posting i didn't even notice these at first.

      Was only looking at the post rs pre rs.

      Does this suggest internal issue or external? And what's best course of action live chat haven't been helpful.

  • Client62's avatar
    Client62
    Alessandro Volta

    for info :

    3.0 Pre RS Errors     are much the same as : 3.1 Corrected errors (Active Profile)
    3.0 Post RS Errors   are much the same as : 3.1 Uncorrectable errors (Active Profile)

    These downstream errors suggest noise between the external VM network and the VM Hub.

    The only steps we can take are to make sure the coax cables are all secure from the wall socket to all of our VM kit.    If the external cables are damaged or errors continue to rise it is a job for an engineer to resolve.

    • JoeC87's avatar
      JoeC87
      On our wavelength

      All cables within my home are fully secure, was checking this last night, not easily undone anyway

      I'll check errors when I get home to see any changes and will try organise an engineer.

      Hopefully won't get same one as last time when didn't really care much.

  • Client62's avatar
    Client62
    Alessandro Volta

    Can you see connection issues to the Hub in VM's own test :

    https://www.samknows.com/realspeed/

    Once the test begins click on: Run full test
    to include: Latency, Jitter, Packet loss & Upload speed

    The same “Samknows Realspeed” tests are available as very handy
    apps for iPhone/iPad and Android mobile / tablets.


    • JoeC87's avatar
      JoeC87
      On our wavelength

      Yes all test come back 'ok' not great, speeds are fine latency is hit and miss with the expection of samknows but I'm guessing that's using a perfect routing system.

       expection is  waveform bufferbloat test which show really high latency during load like 300+ Ms spikes. Both on down and up.

      And gaming seems really 'off' hard to explain  doesn't feel consistant like you'd expect

  • Adduxi's avatar
    Adduxi
    Very Insightful Person

    DOCIS is not best for gaming, it was originally designed for TV transmission.  Keep checking the DS PostRS errors, they should be zero or close to it.  If these keep building, there is an issue for VM to fix, could be noise ingress somewhere on your circuit.

    • JoeC87's avatar
      JoeC87
      On our wavelength

      They do keep rising i can bet you when i get home and login to my router they'll have risen.

      At one point before router reset other day two channels had near 1k+ post rs errors

      I had 0 post rs errors previously its only just started

      Only posting here because live chat dont seem to be much help on this matter.

  • Client62's avatar
    Client62
    Alessandro Volta

    AI Chat Bots are rapidly destroying the customer relationship in every sector of business.

  • legacy1's avatar
    legacy1
    Alessandro Volta

    waveform bufferbloat test will be bad the upstream the hub 5 does a bit of QoS/BWM but not perfect downstream spikes a bit I did my my own QoS/BWN to improve this.

    Gaming here seems fine with a hub 5

    post your live BQM you may need to update your IP for it

  • JoeC87's avatar
    JoeC87
    On our wavelength

    so after coming home from work - no ones been in.

    suprised 3.0 Post RS/Pre RS haven't changed

    but 3.1 have gone worse

    3.1 Downstream channels

    Channel ID    Locked Status    RxMER Data (dB)    PLC Power (dBmV)    Corrected errors (Active Profile)    Uncorrectable errors (Active Profile)
    159    Locked    43    4.7    2523814724    8756

    this is previous 24hrs ish, while it shows ok. i'm pretty confident something is off, due to seeing Uncorrectable Errors
