Forum Discussion

ne's avatar
ne
On our wavelength
2 years ago
Solved

LoS No Ranging Responce Received

ourselves and the neybours are getting a lot of LoS NRRR

any reason and resolution for this please?

Network Log

Time Priority Description

11/06/2023 10:30:13criticalNo Ranging Response received - T3 time-out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.0;
11/06/2023 10:30:12criticalUnicast Ranging Received Abort Response - initializing MAC;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.0;
11/06/2023 09:22:25criticalNo Ranging Response received - T3 time-out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.0;
10/06/2023 15:37:45Warning!RCS Partial Service;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.0;
10/06/2023 12:17:47criticalNo Ranging Response received - T3 time-out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.0;
10/06/2023 12:17:47criticalUnicast Ranging Received Abort Response - initializing MAC;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.0;
10/06/2023 12:17:42criticalNo Ranging Response received - T3 time-out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.0;
10/06/2023 12:17:42Warning!RCS Partial Service;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.0;
10/06/2023 09:14:4criticalNo Ranging Response received - T3 time-out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.0;
10/06/2023 09:03:39Warning!RCS Partial Service;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.0;
10/06/2023 05:29:39noticeDHCP Renew - lease parameters tftp file-cmreg-vmdg505-bbt060-b.cm modified;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.0;
10/06/2023 05:29:39ErrorDHCP RENEW WARNING - Field invalid in response v4 option;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.0;
09/06/2023 21:16:9criticalNo Ranging Response received - T3 time-out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.0;
09/06/2023 19:17:41Warning!

RCS Partial Service;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.0;



20 Replies

Sort By
  • ne's avatar
    ne
    On our wavelength
    2 years ago

    Refresh data
    Downstream bonded channels
    Channel Frequency (Hz) Power (dBmV) SNR (dB) Modulation Channel ID
    1 331000000 7.6 38 256 qam 25
    2 203000000 8.6 38 256 qam 9
    3 211000000 8.5 38 256 qam 10
    4 219000000 8.5 37 256 qam 11
    5 227000000 8 37 256 qam 12
    6 235000000 8 38 256 qam 13
    7 243000000 7.8 38 256 qam 14
    8 251000000 7.5 38 256 qam 15
    9 259000000 7.1 38 256 qam 16
    10 267000000 6.9 38 256 qam 17
    11 275000000 6.6 37 256 qam 18
    12 283000000 6.4 37 256 qam 19
    13 291000000 6 37 256 qam 20
    14 299000000 6.3 37 256 qam 21
    15 307000000 6.3 37 256 qam 22
    16 315000000 6.5 38 256 qam 23
    17 323000000 7.3 38 256 qam 24
    18 339000000 8 38 256 qam 26
    19 347000000 8.3 38 256 qam 27
    20 355000000 8.4 38 256 qam 28
    21 363000000 8.5 38 256 qam 29
    22 371000000 8.4 38 256 qam 30
    23 379000000 8.5 38 256 qam 31
    24 387000000 8 38 256 qam 32


    Downstream bonded channels
    Channel Locked Status RxMER (dB) Pre RS Errors Post RS Errors
    1 Locked 38.6 14680 4267
    2 Locked 38.6 58485 7938
    3 Locked 38.6 55951 7949
    4 Locked 37.6 54951 7864
    5 Locked 37.3 47641 7410
    6 Locked 38.6 44164 7277
    7 Locked 38.6 45617 7401
    8 Locked 38.6 47355 7017
    9 Locked 38.6 41712 7087
    10 Locked 38.6 38628 6249
    11 Locked 37.6 36828 6414
    12 Locked 37.6 36197 5769
    13 Locked 37.6 35430 6445
    14 Locked 37.6 30897 5295
    15 Locked 37.6 25687 5220
    16 Locked 38.6 21718 4660
    17 Locked 38.6 16500 4423
    18 Locked 38.9 13024 4153
    19 Locked 38.6 11818 3769
    20 Locked 38.9 10471 3966
    21 Locked 38.9 9275 3697
    22 Locked 38.6 8669 3557
    23 Locked 38.6 7960 4085
    24 Locked 38.9 7123 3433


    • ne's avatar
      ne
      On our wavelength
      2 years ago

      Upstream bonded channels
      Channel Frequency (Hz) Power (dBmV) Symbol Rate (ksps) Modulation Channel ID
      1 49600000 43.5 5120 64 qam 1
      2 23600000 41 5120 32 qam 5
      3 30100000 40.5 5120 64 qam 4
      4 36600000 42.5 5120 64 qam 3
      5 43100000 41.5 5120 64 qam 2


      Upstream bonded channels
      Channel Channel Type T1 Timeouts T2 Timeouts T3 Timeouts T4 Timeouts
      1 ATDMA 0 0 3 0
      2 ATDMA 0 0 23 0
      3 ATDMA 0 0 6 0
      4 ATDMA 0 0 11 0
      5 ATDMA 0 0 4 0

      • Cardiffman282's avatar
        Cardiffman282
        Wise owl
        2 years ago

        Yup loads of post RS errors and T3 timeouts.

        Check first for local faults on 0800 561 0061 and ensure all cables and connections are tight and secure.

  • ne's avatar
    ne
    On our wavelength
    2 years ago

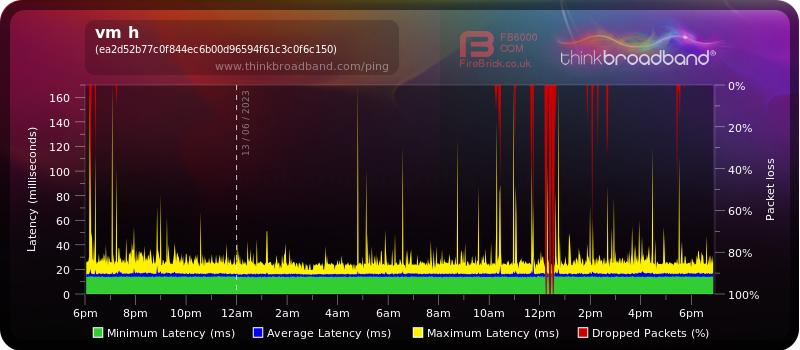

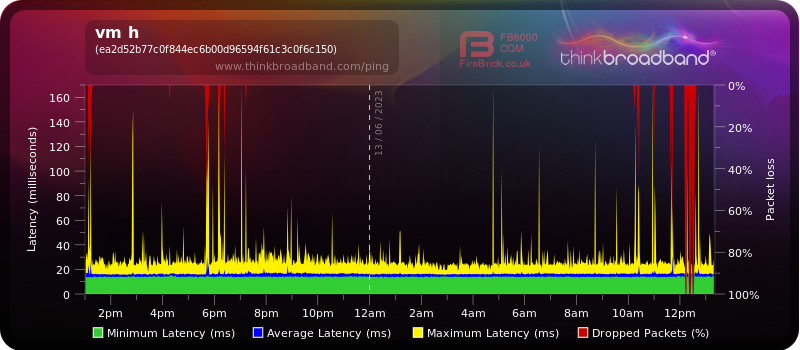

    hi, had tech visit last Saturday, confirmed my findings and noise on the tab board in pit. said it will be passed to networks to visit on mon/tue. but no1 has been yet. can you see where they have got to please, and see tonight's grab of qos. ive has faster dialup  connections.

    • Chris_W1's avatar
      Chris_W1
      Icon for Forum Team rankForum Team
      2 years ago

      Hi ne, thanks for the message, The network teams are independent. The teams will access the network and they if needed make the changes.

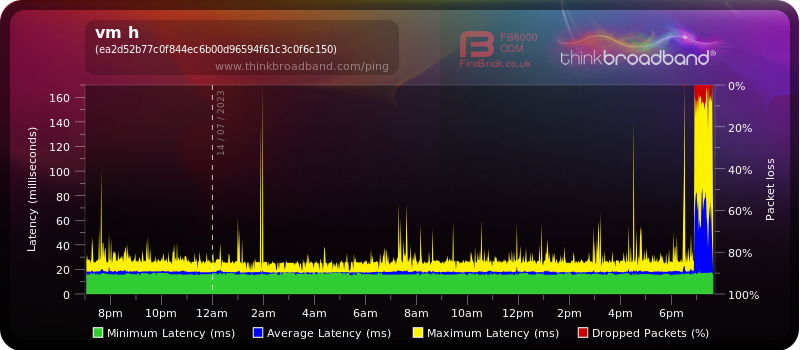

      Can you let us know if anything change after the weekend and continue to monitor the connection with the BQM ^Chris.
