TV360 with AdGuard DNS / VPN

Hi,
As many do I recently put my Hub5 into Modem Mode after purchasing my own router.
GLiNet GL-MT6000 (Flint 2 running v4.8.3)  -  Openwrt-21.02

This router allows me to run AdGuard and OpenVPN.
I have excluded the TV360 box from the VPN and tried to exclude it from the AdGuard DNS but still it is not fully working.
No thumbnails in recordings, broken images and messages for TV, Movies, Apps, etc.

Does anyone have experience with running a VM router in Modem Mode while still using a TV box?
Does anyone know if Virgin uses a specific DNS for its TV service?
Should the LAN cable that is attached to the TV cable be connected to the Virgin router or my own router, or neither?

Thank you

dns
Hub5
modem mode
Tv360
vpn

5 Replies

  • newapollo's avatar
    newapollo
    Very Insightful Person
    23 days ago

    TV360 DNS servers from Settings >  System > Diagnostics



  • Tudor's avatar
    Tudor
    Very Insightful Person
    23 days ago

    I have a V6 not a TV360, but I have never used VM DNS servers. I use Cloudflare encrypted servers, HTTPS (DoH) and CyberSecure Enhanced by Proofpoint and Cloudflare with no problems at all.

  • Roger_Gooner's avatar
    Roger_Gooner
    Alessandro Volta
    23 days ago

    The 360 must run on VM's network with a direct, unmodified LAN path for guaranteed performance. You should therefore create a separate SSID/VLAN for the filtered devices.

    Hub 5 (modem mode)
        ↓
GL‑iNet Flint 2 (OpenWrt)
        ├── VLAN 10 → “Clean LAN” → TV 360 box
        └── VLAN 20 → “Filtered LAN” → Everything else (AdGuard, VPN, etc.)



    • MrPegMan1's avatar
      MrPegMan1
      On our wavelength
      18 days ago

      Thank you for the info, that helped.

      The TV360 cable that splits to ethernet (Lan5 on router) and fibre/coax (tv box).

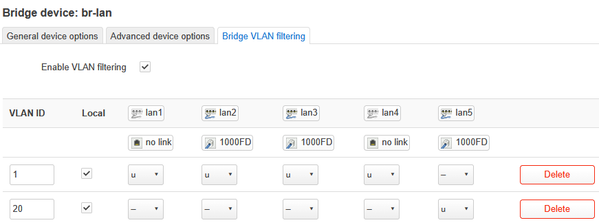

      Put Lan5 onto its own subnet separated from the other LAN traffic.

      To complicate things further I am using AdGuard and WireGuard, two of the main reasons for getting this router.
      WireGuard  - excluded the subnet from the VPN (e.g 192.168.5.0/24). Set the TV360 box to static IP and excluded that too.

      AdGuard  -  DNS is processing 'epg-prod-gb.gnp.cloud.virgintvgo.virginmedia.com' but I would expect that, just the guide. Using: 94.140.14.14, 94.140.15.15. 208.67.222.123
      I also created AdGuard device profiles for the MAC address of the TV box and then apply customer DNS of: 194.168.4.100, 194.168.8.100, 8.8.8.8

      Still getting service suspended.

      • MrPegMan1's avatar
        MrPegMan1
        On our wavelength
        18 days ago

        Its WireGuard / VPN...
        Works when AdGuard and WireGuard off.  Also works with just AdGuard.
        also works when no internet.

        EDIT:
        As soon as i added the VPN filter correctly it works.  Think i need a rest, dangerous when tired!

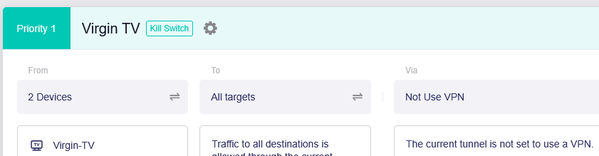

        Some images for the other parts in case someone else hits this problem.
