Millions of post RS Errors and tens of T-timeouts 48H after Hub restart - Constant Drop Outs! 1Gb

My nightmare with this service just got worst. About a month ago I had repull completed by VM contractors. During that re-pull - next doors cable was cur by mistake and to temp cable was then run to next door via our driveway - this was fixed last week but my line got seriously worst than prior to re-pull.

I am now getting millions of post rs errors combined across all channels and numerous of T timeouts - including tones of "16 consecutive T3 timeouts while trying to range on upstream channel" and other critical errors in network log. I rang VM middle of last week (I think it was Wednesday/ Thursday  and requested Engineer visit but was asked to do the usual restart the modem and monitor. So I did that and line was ok until Saturday when post RS errors and timeouts starter to show up in high numbers again. Sunday was absolute chaos - constant disconnection of hub - literally every few seconds. watching TV, working from home all impossible. I checks for fault in my area and nothing reported via the phone number but when logged on to VM website at first it was showing things in green - then all of the sudden Intermittent Signal in your area.

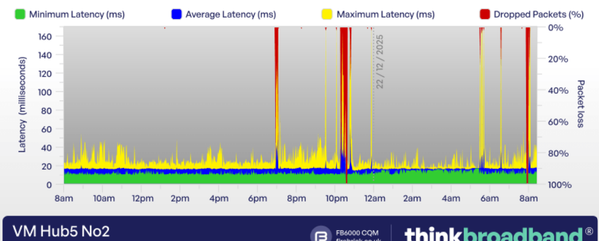

 BQM can be seen here

When I log in to the hub I often get 1 channel displayed in upstream section, sometimes 3 - and sometimes 5 - its an absolute mess!

I suspect there is something wrong with that new cable as when I went to check the external connection (literally just touched the cable) and power levels dropped down from near 0 values as they were earlier in the week to negative 12 and more.

I also noticed that the new cable (supposedly new) looks way thinker than the previous one (not sure if that can cause any problems)

Can someone look at those stats and let me know if this is acceptable and advise what the next move should be?

Cable Modem Status
Item    Status    Type
Cable Modem Status    Online    DOCSIS 3.0
Primary downstream channel    Locked    SC-QAM
Channel Overview    Downstream    Upstream
DOCSIS 3.0 channels    32    5
DOCSIS 3.1 channels    1    1

3.0 Downstream channels

Channel    Frequency (Hz)    Power (dBmV)    SNR (dB)    Modulation    Channel ID
1    411000000    -12.5    35    QAM 256    1
2    419000000    -12.1    35    QAM 256    2
3    427000000    -12    35    QAM 256    3
4    435000000    -11.7    36    QAM 256    4
5    443000000    -11.7    36    QAM 256    5
6    451000000    -11.5    36    QAM 256    6
7    459000000    -11.7    36    QAM 256    7
8    467000000    -11.7    36    QAM 256    8
9    475000000    -11.6    36    QAM 256    9
10    483000000    -11.4    36    QAM 256    10
11    491000000    -11.5    33    QAM 256    11
12    499000000    -11.3    36    QAM 256    12
13    507000000    -11.5    36    QAM 256    13
14    515000000    -11.3    36    QAM 256    14
15    523000000    -11.2    36    QAM 256    15
16    531000000    -11    36    QAM 256    16
17    539000000    -10.7    36    QAM 256    17
18    547000000    -10.6    36    QAM 256    18
19    555000000    -10.4    36    QAM 256    19
20    563000000    -10.4    36    QAM 256    20
21    571000000    -10.2    36    QAM 256    21
22    579000000    -10.3    36    QAM 256    22
23    587000000    -10.1    36    QAM 256    23
24    595000000    -10.1    36    QAM 256    24
25    603000000    -9.9    36    QAM 256    25
26    611000000    -10.1    36    QAM 256    26
27    619000000    -9.9    37    QAM 256    27
28    627000000    -9.9    36    QAM 256    28
29    635000000    -10    37    QAM 256    29
30    643000000    -10.1    36    QAM 256    30
31    651000000    -10.1    36    QAM 256    31
32    659000000    -10    36    QAM 256    32
3.0 Downstream channels

Channel    Locked Status    RxMER (dB)    Pre RS Errors    Post RS Errors
1    Locked    35    2147240    746045
2    Locked    35    1649407    829640
3    Locked    35    1779154    826672
4    Locked    36    1637048    779661
5    Locked    36    1574387    720347
6    Locked    36    1367248    732399
7    Locked    36    1226821    726725
8    Locked    36    1419478    732098
9    Locked    36    1374667    668955
10    Locked    36    1123059    634560
11    Locked    33    1442674    701972
12    Locked    36    1523424    623943
13    Locked    36    1280346    614059
14    Locked    36    1281925    579078
15    Locked    36    1634662    617257
16    Locked    36    1407485    562081
17    Locked    36    1255135    516151
18    Locked    36    1528127    510582
19    Locked    36    1382873    467749
20    Locked    36    1290050    397560
21    Locked    36    1393079    412513
22    Locked    36    1301666    343833
23    Locked    36    1285487    323387
24    Locked    36    1413370    276365
25    Locked    36    1355594    263598
26    Locked    36    1428656    258933
27    Locked    37    1417542    242427
28    Locked    36    1424205    225552
29    Locked    37    1514628    221598
30    Locked    36    1601472    214122
31    Locked    36    1526975    200639
32    Locked    36    1488501    178692
3.1 Downstream channels

Channel    Channel Width (MHz)    FFT Type    Number of Active Subcarriers    Modulation (Active Profile)    First Active Subcarrier (Hz)
159    94    4K    1840    QAM 4096    1108
3.1 Downstream channels

Channel ID    Locked Status    RxMER Data (dB)    PLC Power (dBmV)    Corrected errors (Active Profile)    Uncorrectable errors (Active Profile)
159    Locked    0    -9.5    974889254    1104110



5 Replies

  • Adduxi's avatar
    Adduxi
    Very Insightful Person

    I'm surprised the engineer left a connection like this, your lucky you get any connection at all.

    • jpeg1's avatar
      jpeg1
      Alessandro Volta

      Your connection is seriously at fault. Both downstream and upstream levels are way out of spec. You need a technician to sort it.

  • buchosmambo's avatar
    buchosmambo
    On our wavelength

    Time    Priority    Description
    22-12-2025 08:04:28    notice    CM-STATUS message sent. Event Type Code: 24; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 2.;CM-MAC=9c:24:72:28:90:41;CMTS-MAC=04:62:73:e4:91:d1;CM-QOS=1.1;CM-VER=3.1;
    22-12-2025 08:02:26    notice    CM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 2 3.;CM-MAC=9c:24:72:28:90:41;CMTS-MAC=04:62:73:e4:91:d1;CM-QOS=1.1;CM-VER=3.1;
    22-12-2025 08:02:12    critical    Started Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=9c:24:72:28:90:41;CMTS-MAC=04:62:73:e4:91:d1;CM-QOS=1.1;CM-VER=3.1;
    22-12-2025 07:59:18    notice    CM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 3.;CM-MAC=9c:24:72:28:90:41;CMTS-MAC=04:62:73:e4:91:d1;CM-QOS=1.1;CM-VER=3.1;
    22-12-2025 07:55:45    critical    Received Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=9c:24:72:28:90:41;CMTS-MAC=04:62:73:e4:91:d1;CM-QOS=1.1;CM-VER=3.1;
    22-12-2025 07:54:24    notice    CM-STATUS message sent. Event Type Code: 24; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 2 3.;CM-MAC=9c:24:72:28:90:41;CMTS-MAC=04:62:73:e4:91:d1;CM-QOS=1.1;CM-VER=3.1;
    22-12-2025 07:38:58    critical    16 consecutive T3 timeouts while trying to range on upstream channel 0;CM-MAC=9c:24:72:28:90:41;CMTS-MAC=04:62:73:e4:91:d1;CM-QOS=1.1;CM-VER=3.1;
    22-12-2025 07:38:58    critical    Unicast Maintenance Ranging attempted - No response - Retries exhausted;CM-MAC=9c:24:72:28:90:41;CMTS-MAC=04:62:73:e4:91:d1;CM-QOS=1.1;CM-VER=3.1;
    22-12-2025 07:38:53    critical    Started Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=9c:24:72:28:90:41;CMTS-MAC=04:62:73:e4:91:d1;CM-QOS=1.1;CM-VER=3.1;
    22-12-2025 07:38:18    critical    Unicast Maintenance Ranging attempted - No response - Retries exhausted;CM-MAC=9c:24:72:28:90:41;CMTS-MAC=04:62:73:e4:91:d1;CM-QOS=1.1;CM-VER=3.1;
    22-12-2025 07:38:18    critical    16 consecutive T3 timeouts while trying to range on upstream channel 4;CM-MAC=9c:24:72:28:90:41;CMTS-MAC=04:62:73:e4:91:d1;CM-QOS=1.1;CM-VER=3.1;
    22-12-2025 07:38:15    notice    US profile assignment change. US Chan ID: 14; Previous Profile: 12 13; New Profile: 13.;CM-MAC=9c:24:72:28:90:41;CMTS-MAC=04:62:73:e4:91:d1;CM-QOS=1.1;CM-VER=3.1;
    22-12-2025 07:38:15    warning    DBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=9c:24:72:28:90:41;CMTS-MAC=04:62:73:e4:91:d1;CM-QOS=1.1;CM-VER=3.1;
    22-12-2025 07:38:15    critical    Started Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=9c:24:72:28:90:41;CMTS-MAC=04:62:73:e4:91:d1;CM-QOS=1.1;CM-VER=3.1;
    22-12-2025 07:38:13    critical    Started Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=9c:24:72:28:90:41;CMTS-MAC=04:62:73:e4:91:d1;CM-QOS=1.1;CM-VER=3.1;
    22-12-2025 07:37:48    notice    CM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 3.;CM-MAC=9c:24:72:28:90:41;CMTS-MAC=04:62:73:e4:91:d1;CM-QOS=1.1;CM-VER=3.1;
    22-12-2025 07:34:38    notice    CM-STATUS message sent. Event Type Code: 24; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 2 3.;CM-MAC=9c:24:72:28:90:41;CMTS-MAC=04:62:73:e4:91:d1;CM-QOS=1.1;CM-VER=3.1;
    22-12-2025 07:32:40    notice    CM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 3.;CM-MAC=9c:24:72:28:90:41;CMTS-MAC=04:62:73:e4:91:d1;CM-QOS=1.1;CM-VER=3.1;
    22-12-2025 07:29:44    notice    CM-STATUS message sent. Event Type Code: 24; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 2 3.;CM-MAC=9c:24:72:28:90:41;CMTS-MAC=04:62:73:e4:91:d1;CM-QOS=1.1;CM-VER=3.1;
    22-12-2025 07:19:06    notice    CM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 3.;CM-MAC=9c:24:72:28:90:41;CMTS-MAC=04:62:73:e4:91:d1;CM-QOS=1.1;CM-VER=3.1;
    22-12-2025 07:17:42    notice    CM-STATUS message sent. Event Type Code: 24; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 2 3.;CM-MAC=9c:24:72:28:90:41;CMTS-MAC=04:62:73:e4:91:d1;CM-QOS=1.1;CM-VER=3.1;
    22-12-2025 07:14:13    notice    CM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 3.;CM-MAC=9c:24:72:28:90:41;CMTS-MAC=04:62:73:e4:91:d1;CM-QOS=1.1;CM-VER=3.1;
    22-12-2025 06:35:00    notice    US profile assignment change. US Chan ID: 14; Previous Profile: 11 13; New Profile: 12 13.;CM-MAC=9c:24:72:28:90:41;CMTS-MAC=04:62:73:e4:91:d1;CM-QOS=1.1;CM-VER=3.1;
    22-12-2025 06:35:00    warning    DBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=9c:24:72:28:90:41;CMTS-MAC=04:62:73:e4:91:d1;CM-QOS=1.1;CM-VER=3.1;
    22-12-2025 06:32:03    warning    DBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=9c:24:72:28:90:41;CMTS-MAC=04:62:73:e4:91:d1;CM-QOS=1.1;CM-VER=3.1;
    22-12-2025 06:32:03    notice    US profile assignment change. US Chan ID: 14; Previous Profile: 13; New Profile: 11 13.;CM-MAC=9c:24:72:28:90:41;CMTS-MAC=04:62:73:e4:91:d1;CM-QOS=1.1;CM-VER=3.1;
    22-12-2025 06:28:27    notice    CM-STATUS message sent. Event Type Code: 24; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 2 3.;CM-MAC=9c:24:72:28:90:41;CMTS-MAC=04:62:73:e4:91:d1;CM-QOS=1.1;CM-VER=3.1;
    22-12-2025 06:26:26    notice    CM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 3.;CM-MAC=9c:24:72:28:90:41;CMTS-MAC=04:62:73:e4:91:d1;CM-QOS=1.1;CM-VER=3.1;
    22-12-2025 06:24:09    notice    CM-STATUS message sent. Event Type Code: 24; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 2 3.;CM-MAC=9c:24:72:28:90:41;CMTS-MAC=04:62:73:e4:91:d1;CM-QOS=1.1;CM-VER=3.1;
    22-12-2025 05:44:04    notice    CM-STATUS message sent. Event Type Code: 24; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 2.;CM-MAC=9c:24:72:28:90:41;CMTS-MAC=04:62:73:e4:91:d1;CM-QOS=1.1;CM-VER=3.1;
    22-12-2025 05:41:56    notice    CM-STATUS message sent. Event Type Code: 5; Chan ID: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: N/A.;CM-MAC=9c:24:72:28:90:41;CMTS-MAC=04:62:73:e4:91:d1;CM-QOS=
    22-12-2025 05:41:38    notice    CM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 2 3.;CM-MAC=9c:24:72:28:90:41;CMTS-MAC=04:62:73:e4:91:d1;CM-QOS=1.1;CM-VER=3.1;

  • buchosmambo's avatar
    buchosmambo
    On our wavelength

    .0 Upstream channels

    Channel    Frequency (Hz)    Power (dBmV)    Symbol Rate (ksps)    Modulation    Channel ID
    0    49600000    56.5    5120    QAM 64    9
    1    43100000    56.5    5120    QAM 64    10
    2    36600000    56.5    5120    QAM 64    11
    3    30100000    56.5    5120    QAM 64    12
    4    23600000    56.5    5120    QAM 64    13
    3.0 Upstream channels

    Channel    Channel Type    T1 Timeouts    T2 Timeouts    T3 Timeouts    T4 Timeouts
    0    ATDMA    0    0    12    0
    1    ATDMA    0    0    6    0
    2    ATDMA    0    0    12    0
    3    ATDMA    0    0    12    0
    4    ATDMA    0    0    13    0
    3.1 Upstream channels

    Channel    Channel Width (MHz)    Power (dBmV)    FFT Type    Modulation
    14    10    50.5    2K    QAM 256
    3.1 Upstream channels

    Channel    Channel Type    Number of Active Subcarriers    First Active Subcarrier (Hz)    T3 Timeouts    T4 Timeouts
    14    OFDMA    200    74000000    26    2

    General Configuration

    Network access    Allowed
    Maximum Number of CPEs    3
    Baseline Privacy    Enabled
    DOCSIS Mode    3.1
    Config file    sfd;kfoA,.iyewrkldJKDHSUBsgvc
    Primary Downstream Service Flow

    SFID    730
    Max Traffic Rate    1200000450 bps
    Max Traffic Burst    42600bytes
    Min Traffic Rate    0 bps
    SFID    27680
    Max Traffic Rate    128000 bps
    Max Traffic Burst    4000bytes
    Min Traffic Rate    0 bps
    Primary Upstream Service Flow

    SFID    729
    Max Traffic Rate    110000274 bps
    Max Traffic Burst    42600bytes
    Min Traffic Rate    0 bps
    Max Concatenated Burst    42600bytes
    Scheduling Type    Best Effort
    SFID    27679
    Max Traffic Rate    128000 bps
    Max Traffic Burst    4000bytes
    Min Traffic Rate    0 bps
    Max Concatenated Burst    1522bytes
    Scheduling Type    Best Effort
