Frequent daily dropouts and packet loss

Hi,



Was wonderinfg if someone on the forum mods team could help?

I'm experiencing frequent packet loss and drop outs on a daily basis. Note, my router is sat in modem mode and i'm monitoring both the gateway and an external service. Upon looking at the logs i can see a lot of post errors on the 3.1 channel but all other channels are pretty much perfect, just seems to be an issue with the 3.1 channel.

Rebooting the modem does nothing, same scenario thorughout the day. Luckily i have a 4G backup, so it's not much of an issue but i'd like this looking at please.

- All Coax connections have been re-seated internally and external of the property and are tight. No visible damge either

- Modem has been rebooted multiple times





See below:

3.0 Downstream channels
Channel Frequency (Hz) Power (dBmV) SNR (dB) Modulation Channel ID
1 330000000 4.7 40 QAM 256 25
2 202000000 4.2 40 QAM 256 9
3 210000000 4.7 40 QAM 256 10
4 218000000 5 40 QAM 256 11
5 226000000 5 40 QAM 256 12
6 234000000 4.9 40 QAM 256 13
7 242000000 4.7 40 QAM 256 14
8 250000000 4.7 40 QAM 256 15
9 258000000 4.6 40 QAM 256 16
10 266000000 4.8 40 QAM 256 17
11 274000000 4.9 40 QAM 256 18
12 282000000 5.2 40 QAM 256 19
13 290000000 5.2 40 QAM 256 20
14 298000000 5.3 40 QAM 256 21
15 306000000 5.2 40 QAM 256 22
16 314000000 5 40 QAM 256 23
17 322000000 5 40 QAM 256 24
18 338000000 5.2 40 QAM 256 26
19 346000000 5.1 40 QAM 256 27
20 354000000 5.3 40 QAM 256 28
21 362000000 5.3 40 QAM 256 29
22 370000000 5.1 40 QAM 256 30
23 378000000 5 40 QAM 256 31
24 386000000 4.5 39 QAM 256 32
25 394000000 4.6 41 QAM 256 33
26 402000000 4.2 41 QAM 256 34
27 410000000 4.5 41 QAM 256 35
28 418000000 4.3 41 QAM 256 36
29 426000000 4.6 40 QAM 256 37
30 434000000 4.6 41 QAM 256 38
31 442000000 4.6 41 QAM 256 39
32 450000000 5 41 QAM 256 40

3.0 Downstream channels
Channel Locked Status RxMER (dB) Pre RS Errors Post RS Errors
1 Locked 40 0 0
2 Locked 40 7 0
3 Locked 40 13 0
4 Locked 40 11 0
5 Locked 40 5 0
6 Locked 40 1 0
7 Locked 40 0 0
8 Locked 40 0 0
9 Locked 40 0 0
10 Locked 40 0 0
11 Locked 40 0 0
12 Locked 40 0 0
13 Locked 40 0 0
14 Locked 40 0 0
15 Locked 40 0 0
16 Locked 40 0 0
17 Locked 40 0 0
18 Locked 40 1 0
19 Locked 40 0 0
20 Locked 40 0 0
21 Locked 40 0 0
22 Locked 40 0 0
23 Locked 40 0 0
24 Locked 39 0 0
25 Locked 41 0 0
26 Locked 41 1 0
27 Locked 41 0 0
28 Locked 41 0 0
29 Locked 40 0 0
30 Locked 41 0 0
31 Locked 41 0 0
32 Locked 41 0 0

3.1 Downstream channels
Channel Channel Width (MHz) FFT Type Number of Active Subcarriers Modulation (Active Profile) First Active Subcarrier (Hz)
159 94 4K 1840 QAM 4096 1108

3.1 Downstream channels
Channel ID Locked Status RxMER Data (dB) PLC Power (dBmV) Corrected errors (Active Profile) Uncorrectable errors (Active Profile)
159 Locked 37 2.6 2456731718 44199




Router status

Status
Downstream
Upstream
Configuration
Network Log

Refresh data

Network Log
Time Priority Description
01-05-2024 10:33:02 notice CM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
01-05-2024 10:28:56 notice CM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
01-05-2024 10:28:49 notice CM-STATUS message sent. Event Type Code: 24; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 2.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
01-05-2024 10:24:02 notice CM-STATUS message sent. Event Type Code: 24; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
01-05-2024 10:14:56 notice GUI Login Status - Login Success from LAN interface
01-05-2024 10:08:20 notice CM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
01-05-2024 10:03:56 notice CM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
01-05-2024 09:59:55 notice GUI Login Status - Login Success from LAN interface
01-05-2024 09:59:33 notice GUI Login Status - Login Fail from LAN interface
01-05-2024 09:42:24 notice CM-STATUS message sent. Event Type Code: 24; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
01-05-2024 09:39:19 notice CM-STATUS message sent. Event Type Code: 24; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 2.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
01-05-2024 09:37:36 notice CM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
01-05-2024 09:36:38 notice CM-STATUS message sent. Event Type Code: 24; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 2.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
01-05-2024 09:20:25 notice CM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
01-05-2024 09:19:21 notice CM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
01-05-2024 09:19:06 notice CM-STATUS message sent. Event Type Code: 24; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
01-05-2024 09:14:37 notice CM-STATUS message sent. Event Type Code: 24; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 2.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
01-05-2024 09:07:13 notice CM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
01-05-2024 09:03:57 notice CM-STATUS message sent. Event Type Code: 24; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 2.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
01-05-2024 08:54:34 notice US profile assignment change. US Chan ID: 6; Previous Profile: 12 13; New Profile: 11 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
01-05-2024 08:54:34 warning DBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
01-05-2024 08:36:39 notice CM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
01-05-2024 08:34:23 notice CM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 2.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
01-05-2024 08:31:21 notice CM-STATUS message sent. Event Type Code: 24; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
01-05-2024 08:24:59 notice CM-STATUS message sent. Event Type Code: 24; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 2.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
01-05-2024 08:20:37 notice CM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
01-05-2024 07:45:08 notice US profile assignment change. US Chan ID: 6; Previous Profile: 11 13; New Profile: 12 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
01-05-2024 07:45:08 warning DBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
01-05-2024 07:23:53 notice US profile assignment change. US Chan ID: 6; Previous Profile: 13; New Profile: 11 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
01-05-2024 07:23:53 warning DBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
01-05-2024 07:03:42 notice CM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
01-05-2024 07:00:11 notice CM-STATUS message sent. Event Type Code: 24; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
01-05-2024 06:51:10 notice CM-STATUS message sent. Event Type Code: 24; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
01-05-2024 06:48:47 notice CM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
01-05-2024 06:46:34 notice CM-STATUS message sent. Event Type Code: 24; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 2.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
Log out Language

Home
Modem mode
Advanced settings
Tools
Network status
LED light
Admin

Cable Modem Status

Status
Downstream
Upstream
Configuration
Network Log

Refresh data

3.0 Downstream channels
Channel Frequency (Hz) Power (dBmV) SNR (dB) Modulation Channel ID
1 330000000 4.9 40 QAM 256 25
2 202000000 4.4 40 QAM 256 9
3 210000000 4.9 40 QAM 256 10
4 218000000 5.2 40 QAM 256 11
5 226000000 5.2 40 QAM 256 12
6 234000000 5.1 40 QAM 256 13
7 242000000 4.9 40 QAM 256 14
8 250000000 4.8 40 QAM 256 15
9 258000000 4.8 40 QAM 256 16
10 266000000 5 40 QAM 256 17
11 274000000 5 40 QAM 256 18
12 282000000 5.3 40 QAM 256 19
13 290000000 5.4 40 QAM 256 20
14 298000000 5.5 40 QAM 256 21
15 306000000 5.4 40 QAM 256 22
16 314000000 5.2 40 QAM 256 23
17 322000000 5.3 40 QAM 256 24
18 338000000 5.5 40 QAM 256 26
19 346000000 5.4 40 QAM 256 27
20 354000000 5.4 40 QAM 256 28
21 362000000 5.5 40 QAM 256 29
22 370000000 5.3 40 QAM 256 30
23 378000000 5.4 40 QAM 256 31
24 386000000 4.8 40 QAM 256 32
25 394000000 4.8 41 QAM 256 33
26 402000000 4.4 41 QAM 256 34
27 410000000 4.7 41 QAM 256 35
28 418000000 4.6 41 QAM 256 36
29 426000000 4.8 41 QAM 256 37
30 434000000 4.8 41 QAM 256 38
31 442000000 4.8 41 QAM 256 39
32 450000000 5.3 41 QAM 256 40

3.0 Downstream channels
Channel Locked Status RxMER (dB) Pre RS Errors Post RS Errors
1 Locked 40 0 0
2 Locked 40 7 0
3 Locked 40 13 0
4 Locked 40 11 0
5 Locked 40 5 0
6 Locked 40 1 0
7 Locked 40 0 0
8 Locked 40 0 0
9 Locked 40 0 0
10 Locked 40 0 0
11 Locked 40 0 0
12 Locked 40 0 0
13 Locked 40 0 0
14 Locked 40 0 0
15 Locked 40 0 0
16 Locked 40 0 0
17 Locked 40 0 0
18 Locked 40 1 0
19 Locked 40 0 0
20 Locked 40 0 0
21 Locked 40 0 0
22 Locked 40 0 0
23 Locked 40 0 0
24 Locked 40 0 0
25 Locked 41 0 0
26 Locked 41 1 0
27 Locked 41 0 0
28 Locked 41 0 0
29 Locked 41 0 0
30 Locked 41 0 0
31 Locked 41 0 0
32 Locked 41 0 0

3.1 Downstream channels
Channel Channel Width (MHz) FFT Type Number of Active Subcarriers Modulation (Active Profile) First Active Subcarrier (Hz)
159 94 4K 1840 QAM 4096 1108

3.1 Downstream channels
Channel ID Locked Status RxMER Data (dB) PLC Power (dBmV) Corrected errors (Active Profile) Uncorrectable errors (Active Profile)
159 Locked 37 2.9 2446644265 44145



  • Sephiroth's avatar
    Sephiroth
    Alessandro Volta

    I know you asked for help from the Forum Team - and in a couple of days you’ll get your turn.

    Frustratingly, they may ask you to put your hub into router mode so that they can do all of their tests.  This will waste your time as the problem lies 100% on the DOCSIS 3.1 side - their network.  The error codes 16 & 24 in the network log report that the FEC error limits have been broken and recovery has been instituted.  This is what the Forum Team need to deal with and nothing else.

    From your side, it would help if you can monitor this, looking for the events in the Network Log and seriously rising Uncorrectable Errors and reporting back via ths thread.

    If you’re really “lucky”, the Forum Team will accept the downstream problem and offer you a tech visit which will achieve nothing other than the possibility of the tech raising the problem with Networks.  If you’re really lucky, the Forum Team will raise this with network bit evidence of continuous issues should be posted for that to happen.

    Do keep us posted.

  • Thanks for the reply. Appreciate the time and effort.



    just looked again, 3.1 channel is constantly rising with pre and post errors. All other channels absolutely fine and zero. Been like this for a few weeks, didn't really notice it because the primary WAN was failing over in the background to the 4G connection and my alerting stopped working from telegram.

    3.1 Downstream channels
    Channel ID Locked Status RxMER Data (dB) PLC Power (dBmV)

    Corrected errors (Active Profile) Uncorrectable errors (Active Profile)
    159 Locked 36 2.8 2565890714              47437



    More in the network referring to error codes 16 & 24

    Network Log
    Time Priority Description
    01-05-2024 13:36:51 notice US profile assignment change. US Chan ID: 6; Previous Profile: 13; New Profile: 11 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    01-05-2024 13:36:51 warning DBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    01-05-2024 13:34:28 notice CM-STATUS message sent. Event Type Code: 24; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 2.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    01-05-2024 13:28:24 notice CM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    01-05-2024 13:23:06 notice CM-STATUS message sent. Event Type Code: 24; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 2.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    01-05-2024 13:11:26 notice CM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    01-05-2024 13:11:08 notice CM-STATUS message sent. Event Type Code: 24; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    01-05-2024 12:58:52 notice CM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    01-05-2024 12:54:00 notice CM-STATUS message sent. Event Type Code: 24; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 2.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    01-05-2024 12:50:53 notice CM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    01-05-2024 12:49:29 notice CM-STATUS message sent. Event Type Code: 24; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 2.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    01-05-2024 12:41:16 notice CM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    01-05-2024 12:35:32 notice CM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    01-05-2024 12:32:27 notice CM-STATUS message sent. Event Type Code: 24; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    01-05-2024 12:28:00 notice US profile assignment change. US Chan ID: 6; Previous Profile: 12 13; New Profile: 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    01-05-2024 12:28:00 warning DBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    01-05-2024 12:26:14 notice US profile assignment change. US Chan ID: 6; Previous Profile: 11 13; New Profile: 12 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    01-05-2024 12:26:14 warning DBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    01-05-2024 12:24:09 notice CM-STATUS message sent. Event Type Code: 24; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    01-05-2024 12:17:38 notice CM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    01-05-2024 12:16:37 notice CM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    01-05-2024 12:16:10 notice US profile assignment change. US Chan ID: 6; Previous Profile: 12 13; New Profile: 11 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    01-05-2024 12:16:10 warning DBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    01-05-2024 12:15:38 notice CM-STATUS message sent. Event Type Code: 24; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    01-05-2024 12:14:28 notice CM-STATUS message sent. Event Type Code: 24; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 2.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    01-05-2024 12:12:32 notice CM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    01-05-2024 12:12:12 notice CM-STATUS message sent. Event Type Code: 24; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    01-05-2024 12:10:18 notice CM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    01-05-2024 12:09:55 notice CM-STATUS message sent. Event Type Code: 24; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    01-05-2024 12:06:45 notice CM-STATUS message sent. Event Type Code: 24; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    01-05-2024 12:06:42 notice CM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    01-05-2024 12:04:43 notice CM-STATUS message sent. Event Type Code: 24; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;

    • Robert_P's avatar
      Robert_P
      Forum Team

      Hello monks600



      Sorry to hear of the connection issues experienced, we appreciate you raising this via the forums.



      I will send you a Private Message to get some more details from you to assist. Check the envelope in the top right of the forum when signed in for the message.



      Rob

      • monks600's avatar
        monks600
        Tuning in

        Hi there,


        Engineer attended, advised nothing wrong with the power levels and nothing being shown on the tester faults wise. Advised the 3.1 channel is really bad and showed him the status page and he's advsed there's not much he can do apart from swap out the Modem/Router.

        Modem/Router has since been swapped, the issue still persists, if not worse than before. I'm still seeing really frequent/high post RS on the 3.1 channel. Everything else is absolutely fine on the other channels, no pre or post errors at all.



        Seems everything is pointing towards the 3.1 channel again. Below is with the new router (installed yesterday):

        Note: Modem was rebooted 5 mins prior to the below:

        3.1 Downstream channels

        Channel ID Locked Status RxMER Data (dB) PLC Power (dBmV) Corrected errors (Active Profile) Uncorrectable errors (Active Profile)
        159Locked372.26405230747


        and as you can see, all other bondend channels are fine:



        3.0 Downstream channels

        Channel Frequency (Hz) Power (dBmV) SNR (dB) Modulation Channel ID
        13300000004.440QAM 25625
        21380000004.540QAM 2561
        31460000004.340QAM 2562
        41540000004.140QAM 2563
        51620000003.940QAM 2564
        61700000003.740QAM 2565
        71940000003.740QAM 2568
        82020000003.940QAM 2569
        92260000004.740QAM 25612
        102340000004.640QAM 25613
        112580000004.340QAM 25616
        122660000004.440QAM 25617
        132740000004.440QAM 25618
        142820000004.740QAM 25619
        152900000004.740QAM 25620
        162980000004.940QAM 25621
        173060000004.740QAM 25622
        183140000004.640QAM 25623
        193220000004.640QAM 25624
        203380000004.840QAM 25626
        213460000004.740QAM 25627
        223540000004.940QAM 25628
        233620000004.940QAM 25629
        243700000004.840QAM 25630
        253780000004.840QAM 25631
        263860000004.240QAM 25632
        273940000004.241QAM 25633
        284020000003.840QAM 25634
        294100000004.141QAM 25635
        30418000000440QAM 25636
        314260000004.241QAM 25637
        324420000004.241QAM 25639

        3.0 Downstream channels

        Channel Locked Status RxMER (dB) Pre RS Errors Post RS Errors
        1Locked4000
        2Locked4000
        3Locked4000
        4Locked4000
        5Locked4000
        6Locked4000
        7Locked4000
        8Locked4000
        9Locked4000
        10Locked4000
        11Locked4000
        12Locked4000
        13Locked4000
        14Locked4000
        15Locked4000
        16Locked4000
        17Locked4000
        18Locked4000
        19Locked4000
        20Locked4000
        21Locked4000
        22Locked4000
        23Locked4000
        24Locked4000
        25Locked4000
        26Locked4000
        27Locked4100
        28Locked4000
        29Locked4100
        30Locked4000
        31Locked4100
        32Locked4100
  • Sephiroth's avatar
    Sephiroth
    Alessandro Volta

    Yes - your downstream is failing.   The D3.1 channel is the workhorse.  Corrected errors are quite normal given the very high speed, encoding and modulation.  The uncorrected errors, as you know, are lost data.  This will need a tech in the first instance who can try a replacement hub.

  • Latency is constntly high with little to no load on the network.

    • monks600's avatar
      monks600
      Tuning in

      Anyone able to advise on the next steps? I can only now assume it's the hardward upstream that's having issues.

  • Sephiroth's avatar
    Sephiroth
    Alessandro Volta

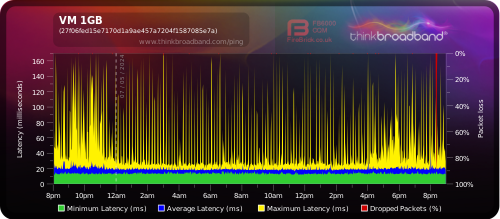

    What high post-RS errors on the D3.1 channel?  The BQM is at odds with what you posted.  When the yellow spikes are high, it's usually a downstream problem (blue would indicate upstream).  So a refresh on the D3.1 figures and an indication of the uptime would be helpful.

    • monks600's avatar
      monks600
      Tuning in

      Downstream on 3.1 as per the below:

      3.1 Downstream channels

      Channel ID Locked Status RxMER Data (dB) PLC Power (dBmV) Corrected errors (Active Profile) Uncorrectable errors (Active Profile)
      159Locked361.5257716474247452



      And 3.0 channels:

      3.0 Downstream channels

      Channel Locked Status RxMER (dB) Pre RS Errors Post RS Errors
      1Locked4000
      2Locked4000
      3Locked4000
      4Locked4000
      5Locked4000
      6Locked4000
      7Locked4000
      8Locked4000
      9Locked4000
      10Locked4000
      11Locked4000
      12Locked4000
      13Locked4000
      14Locked4000
      15Locked4000
      16Locked4000
      17Locked4000
      18Locked4000
      19Locked4000
      20Locked4000
      21Locked4000
      22Locked4000
      23Locked4000
      24Locked4000
      25Locked4000
      26Locked4000
      27Locked4100
      28Locked4100
      29Locked4100
      30Locked4100
      31Locked4100
      32Locked4100
      • Martin_N's avatar
        Martin_N
        Forum Team

        Thank you for the updated monks600. We are happy to take a further look into this.

        I will private message you now.

        ^Martin

  • Sephiroth's avatar
    Sephiroth
    Alessandro Volta

    @ForumTeam - you've got your proof that the D3.1 downstream has significant problems.  Please get that sorted for the OP.



  • Engineer attended on wednesday, replaced all internal cabeling and removed a booster out of the equation. Still the same outcome, 3.1 channel has lots of pre and post RS errors. The engineer advised this could be my kit possibly causing the interferance and advised to try router mode for a few days.


    I've done this, and it's made no difference what so ever. Don't understand how internal ethernet devices would cause pre and post RS errors on a single channel. But yeah, willing to try anything at this point.

    Here's a copy of the logs and how i currently stand:

    3.1 Downstream channels
    Channel Channel Width (MHz) FFT Type Number of Active Subcarriers Modulation (Active Profile) First Active Subcarrier (Hz)
    159 94 4K 1840 QAM 4096 1108

    3.1 Downstream channels
    Channel ID Locked Status RxMER Data (dB) PLC Power (dBmV) Corrected errors (Active Profile) Uncorrectable errors (Active Profile)
    159 Locked 36 2.5 3020730151 39220

    Network Log
    Time Priority Description
    20-05-2024 10:59:58 notice CM-STATUS message sent. Event Type Code: 24; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 2.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    20-05-2024 10:45:46 notice CM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    20-05-2024 10:30:01 notice CM-STATUS message sent. Event Type Code: 24; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    20-05-2024 10:05:53 notice CM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    20-05-2024 10:02:40 notice CM-STATUS message sent. Event Type Code: 24; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 2.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    20-05-2024 09:57:03 notice CM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    20-05-2024 09:54:22 notice CM-STATUS message sent. Event Type Code: 24; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 2.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    20-05-2024 09:37:06 notice CM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    20-05-2024 09:35:12 notice CM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    20-05-2024 09:28:54 notice CM-STATUS message sent. Event Type Code: 24; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    20-05-2024 09:27:34 notice CM-STATUS message sent. Event Type Code: 24; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    20-05-2024 09:23:32 notice CM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    20-05-2024 09:22:21 notice CM-STATUS message sent. Event Type Code: 24; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 2.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    20-05-2024 09:06:53 notice CM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    20-05-2024 09:06:14 notice US profile assignment change. US Chan ID: 6; Previous Profile: 12 13; New Profile: 11 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    20-05-2024 09:06:14 warning DBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    20-05-2024 09:04:12 notice CM-STATUS message sent. Event Type Code: 24; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    20-05-2024 08:45:45 notice CM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    20-05-2024 08:44:43 notice CM-STATUS message sent. Event Type Code: 24; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    20-05-2024 08:42:37 notice CM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    20-05-2024 08:40:08 notice CM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    20-05-2024 08:39:39 notice CM-STATUS message sent. Event Type Code: 24; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    20-05-2024 08:39:09 notice CM-STATUS message sent. Event Type Code: 24; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    20-05-2024 08:37:53 notice CM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    20-05-2024 08:36:00 notice CM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    20-05-2024 08:32:43 notice CM-STATUS message sent. Event Type Code: 24; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    20-05-2024 08:25:23 notice CM-STATUS message sent. Event Type Code: 24; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    20-05-2024 08:21:35 notice CM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    20-05-2024 08:20:34 notice CM-STATUS message sent. Event Type Code: 24; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 2.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    20-05-2024 08:16:57 notice CM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    20-05-2024 08:13:00 notice CM-STATUS message sent. Event Type Code: 24; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 2.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    20-05-2024 08:06:43 notice CM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;



  • Sephiroth's avatar
    Sephiroth
    Alessandro Volta

    I do understand how it might be suspected that faulty equipment attached to the Hub could propagate noise.  That is so unlikely, however and even less likely on a specific frequency (though not impossible).  The next step would be for the same technician to raise the matter to Network Team.  How will that be done?  After all the Forum Team have already said on this Forum that they have no path to Networks.  It means another tech visit, more delay etc.

    Any chance you can check with a neighbour for a similar issue?  Area faults attract greater attention.

    • monks600's avatar
      monks600
      Tuning in

      Have another engineer booked for tomorrow morning so will see what the outcome is.

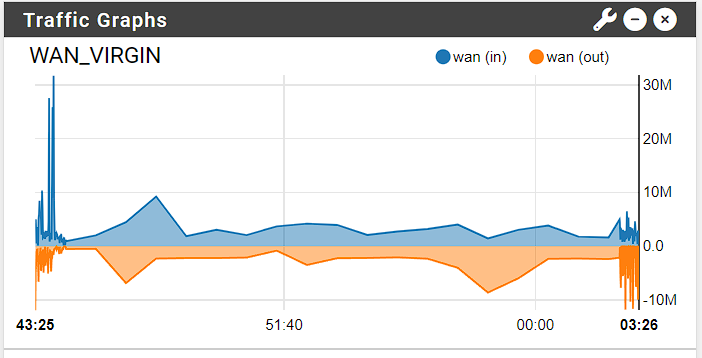

      100% not my kit, left the hub in router mode with nothing attached via Ethernet and the issue is still apparent. I’ve even gone down the route of swapping physical cat5e drops as I pulled in spares and re terminating the ends and on the patch panel. Also glass ended both sides and still the same.

      i have two firewalls in a HA Pair and swapped the interfaces around and ran them in standalone mode, still the same. Fluke tested all my internal runs and they pass with little to no loss and are within the thresholds.

      curiousity got the better of me so I trace route out from my connection and went 3 hops down. Looks like there’s an issue with the edge cabinet (street cabinet) and the run back to the main hub. Doesn’t seem to be an issues from my property back to the edge cabinet. Running basics ping monitoring on each hop confirms this and the packet loss correlates with what I’m seeing. I have no experience with coax, as all the connections I deal with from isps on a daily basis are usually fiber, radio link or our own dark fiber. At this stage, networks team probably does need to get involved but I’m assuming this requires escalation from an on-site engineer.

      I’ve already requested on the past 2 visits to put me on a different feed in the cab as the main cable run seems to be fine from my property to the edge cabinet, this went on deaf ears though.



      we shall see what the outcome is. Pretty frustrating I’m nearly a month in and no one has a clue. Checked with neighbors but they’re all still on copper lines with open reach.



  • Multiple engineers and still no fix in sight. One of the engineers did find a ‘nick’ in the coax half way down the ducting and repaired this. Seems to have stabilised the connection somewhat… few weeks after this, back to frequent packet loss and the latency had gone really poor again. This can be shown in the screen shots. The lower latency was just after the nick in the cable was fixed, still had packet loss though. And the other screen shot is from now. Ironically, no one is at the house as the moment and it’s just all over the show. Constant alerts from my firewall advising the main WAN connection has failed over to my 4G backup. If you look carefully at the top, you will see little red dots frequently which indicate communication loss to the modem.



    • newapollo's avatar
      newapollo
      Very Insightful Person

      Hi monks600

      Sorry to see the problems still existing.

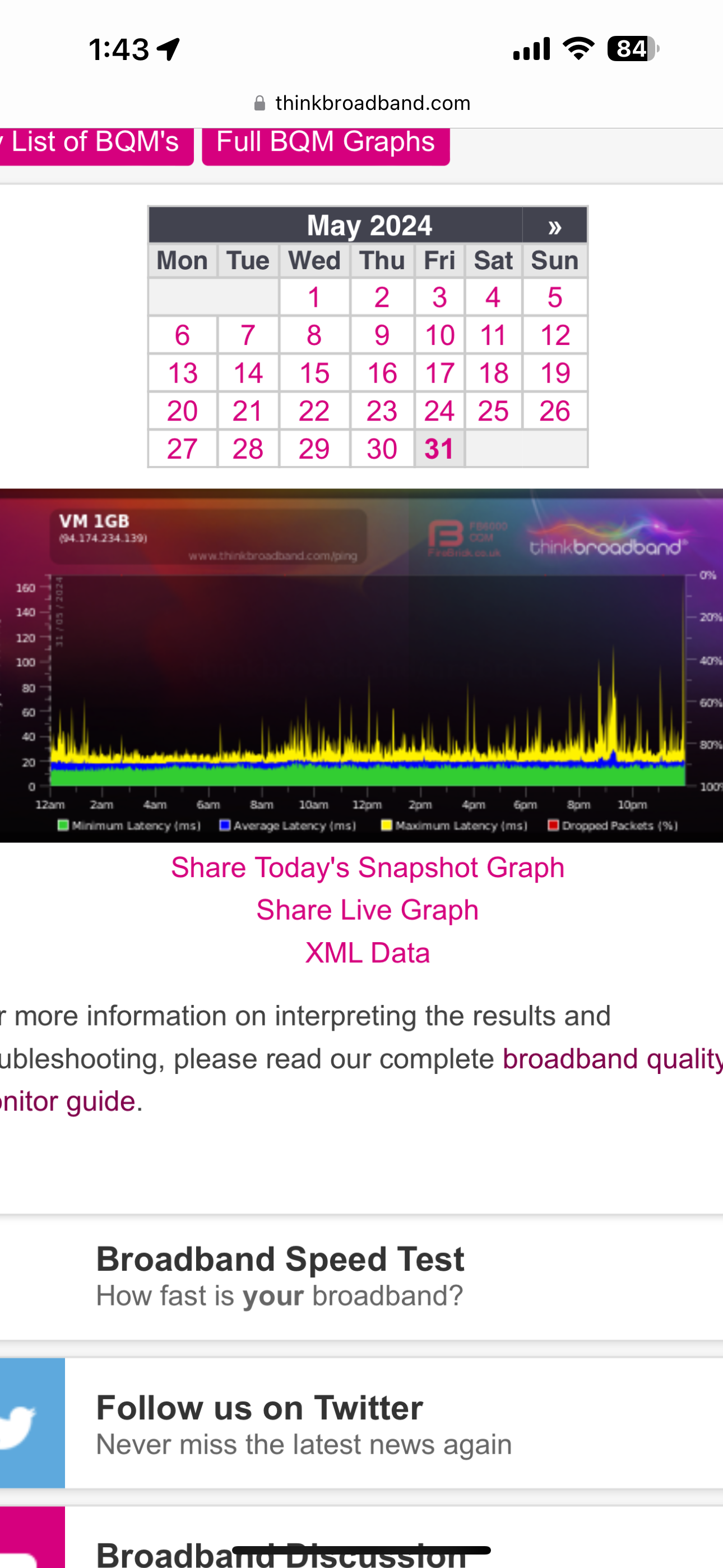

      You need to repost the BQM's with the IP address redacted. Pictures are declined as they show your IP address.

      You could also set up a live BQM which automatically redacts the IP address and prrovides continious updates (it wil take a couple of hours to start showing the results)

      On Think Broadband go to your  BQM and under the options you will see

      Today | Previous Days | Edit | Delete | Share

      Click on the Share option and on the screen that opens click on Share

      On the next screen click on Share Live Graph

      Copy the text in the Direct Link box (beware there may be more text than you can see so make sure you highlight it all)

      On here when creating your post click the Link icon (2 links chain to the left of the camera icon)

       In the URL box paste the link you copied and then click OK.
