Broadband connection dropping

Hello,

On Friday 22nd of March, some time in the evening, my connection dropped out for around 1 minute, then came back. It has since happened every day since then, in the evenings. Sometimes every hour, sometimes 2 times per evening, but always every evening. Service status shows no faults in my area any day I checked, my SuperHub 5 has no error lights, it just stays white as usual.

I submitted a complaint, got what was an awfully worded and seemingly AI generated response, but it did say there were faults in the area (which I could find no info about otherwise). It said to wait 24 hours and then contact support if nothing changed.

I don't see a way to do that via the open complaint ticket so I figured I'd post here and see if anyone has any ideas on what the problem could be. I'm thinking it might be an issue with the Hub itself. The issue also effects both WiFi and Ethernet connections, so that rules out a WiFi or ethernet cable fault. I have factory reset and power cycled it, but nothing changed. I guess I'll probably have to call support tomorrow

I set up a BQM for the last few days, today's is here:

https://www.thinkbroadband.com/broadband/monitoring/quality/share/58b7236d9d72152c3374f9e156a7e7665f294072

Thanks for any suggestions

8 Replies

Sort By
  • Adduxi's avatar
    Adduxi
    Very Insightful Person
    2 years ago

    You need to post the power levels and network log.   Your BQM does show drops in the circuit.

    • MartinD63's avatar
      MartinD63
      Tuning in
      2 years ago

      Hello,

      Sorry for the late reply, didn't get notified by email like I thought I would. This is everything in my log, my connection did drop out a bit around 7pm today, which is at the very bottom of the log:

      Network Log

      Time                    Priority      Description
      29-03-2024 20:48:38noticeGUI Login Status - Login Success from LAN interface
      29-03-2024 19:30:30noticeCM-STATUS message sent. Event Type Code: 24; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:27:41noticeCM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:25:45criticalReceived Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:22:28criticalStarted Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:21:35criticalSYNC Timing Synchronization failure - Loss of Sync;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:05:47warningRNG-RSP CCAP Commanded Power in Excess of 6 dB Below the Value Corresponding to the Top of the DRW;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:05:46criticalReceived Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:04:12warningRNG-RSP CCAP Commanded Power in Excess of 6 dB Below the Value Corresponding to the Top of the DRW;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:04:10criticalReceived Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:03:50warningRNG-RSP CCAP Commanded Power in Excess of 6 dB Below the Value Corresponding to the Top of the DRW;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:03:45noticeCM-STATUS message sent. Event Type Code: 24; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:03:30noticeCM-STATUS message sent. Event Type Code: 4; Chan ID: 19; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: N/A.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:03:30warningRNG-RSP CCAP Commanded Power in Excess of 6 dB Below the Value Corresponding to the Top of the DRW;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:03:09noticeCM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:03:08noticeCM-STATUS message sent. Event Type Code: 5; Chan ID: 19; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: N/A.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:03:00noticeCM-STATUS message sent. Event Type Code: 4; Chan ID: 19; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: N/A.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:02:50warningRNG-RSP CCAP Commanded Power in Excess of 6 dB Below the Value Corresponding to the Top of the DRW;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:02:39criticalStarted Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:02:39noticeCM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:02:38criticalStarted Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:02:38noticeCM-STATUS message sent. Event Type Code: 5; Chan ID: 19; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: N/A.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:02:30criticalStarted Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:02:29noticeCM-STATUS message sent. Event Type Code: 4; Chan ID: 19; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: N/A.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:02:10warningRNG-RSP CCAP Commanded Power in Excess of 6 dB Below the Value Corresponding to the Top of the DRW;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:02:09noticeCM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:02:07noticeCM-STATUS message sent. Event Type Code: 5; Chan ID: 19; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: N/A.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:01:59noticeCM-STATUS message sent. Event Type Code: 4; Chan ID: 19; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: N/A.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:01:50warningRNG-RSP CCAP Commanded Power in Excess of 6 dB Below the Value Corresponding to the Top of the DRW;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:01:38noticeCM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:01:37noticeCM-STATUS message sent. Event Type Code: 5; Chan ID: 19; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: N/A.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:01:30warningRNG-RSP CCAP Commanded Power in Excess of 6 dB Below the Value Corresponding to the Top of the DRW;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:01:29noticeCM-STATUS message sent. Event Type Code: 4; Chan ID: 19; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: N/A.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;

      Here is last 24 hours of BQM, the only drop I saw was today at 7pm:

      https://www.thinkbroadband.com/broadband/monitoring/quality/share/58b7236d9d72152c3374f9e156a7e7665f294072

      Here is the status info:

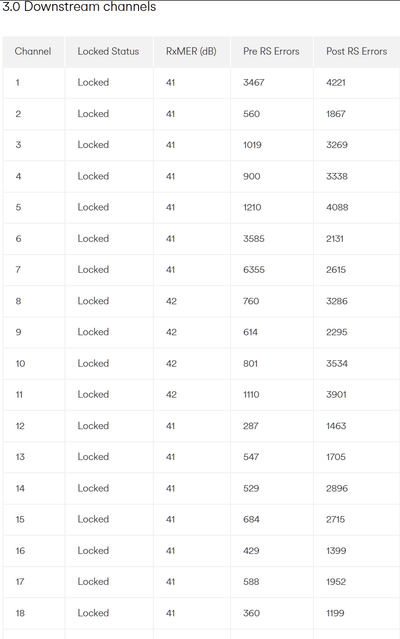

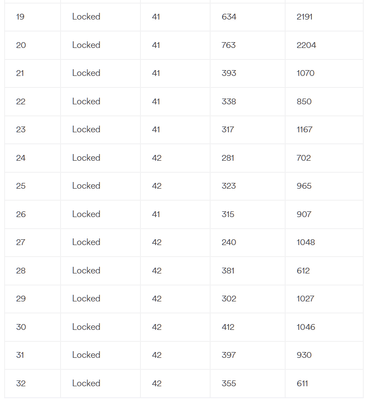

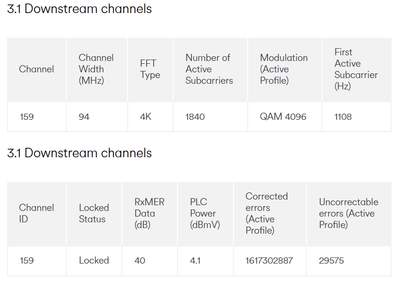

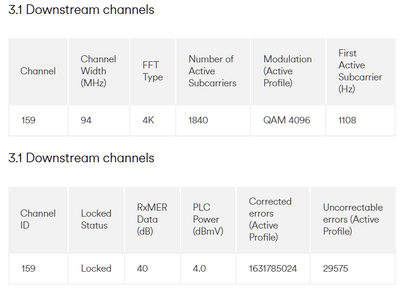

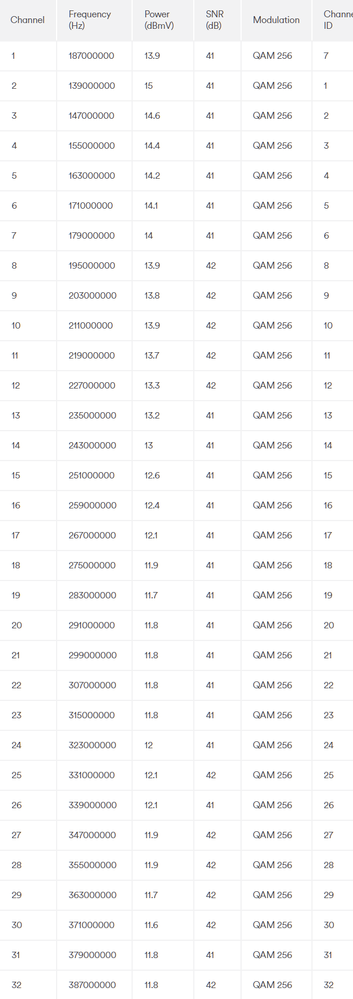

      Downstream

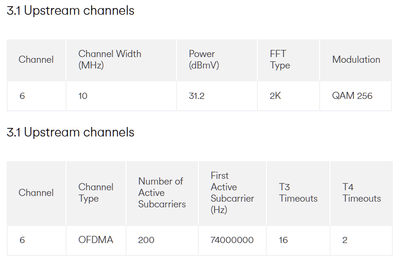

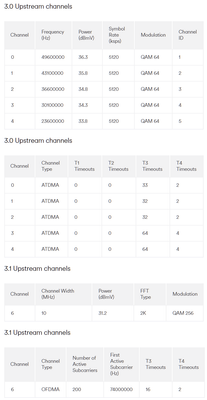

      Upstream

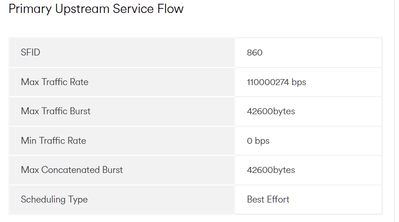

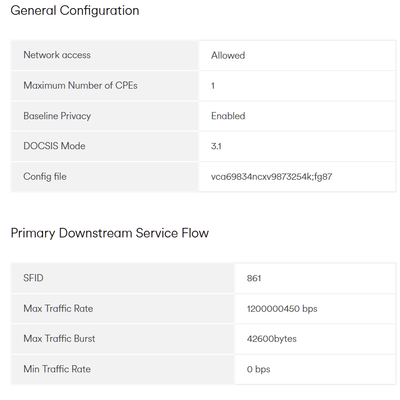

      Config

      Thanks for the response, any further help is greatly appreciated
    • MartinD63's avatar
      MartinD63
      Tuning in
      2 years ago

      Hello, thanks for the reply. I posted a reply just now but it seems to have... disappeared? I will post it again. I had no connection drops yesterday evening, but I did experience one at 7pm today, which is shown at the bottom of the network log

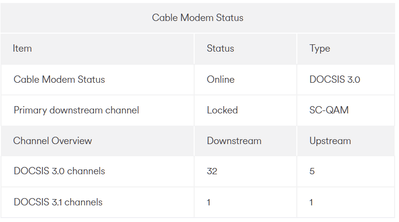

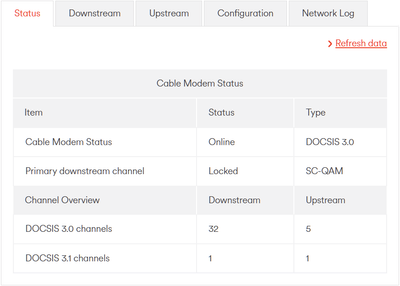

      Status

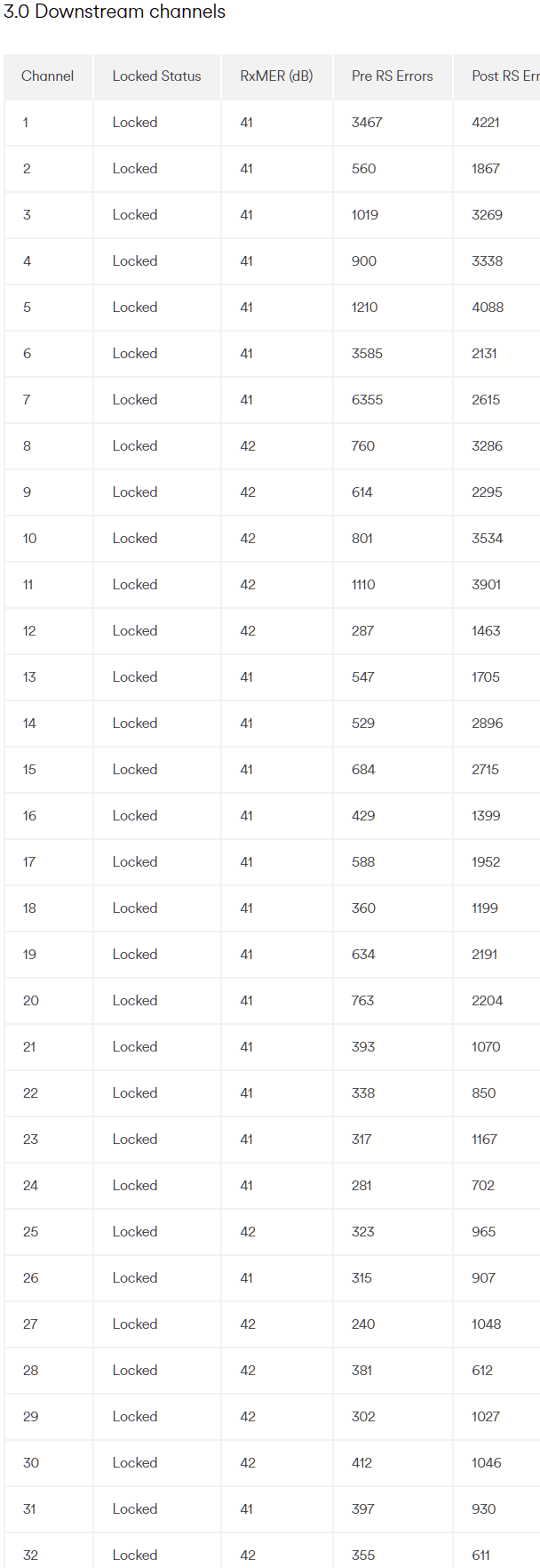

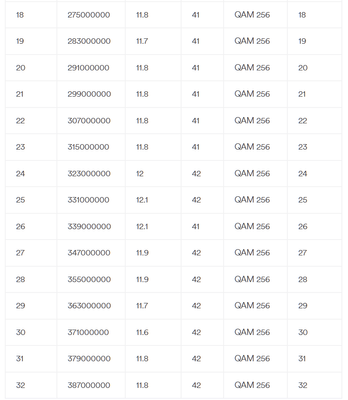

      Downstream

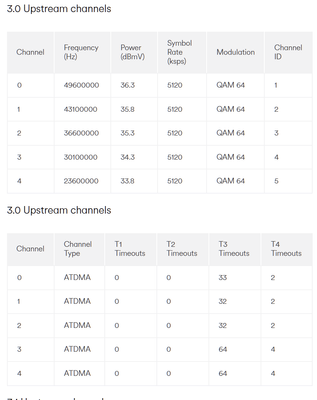

      Upstream

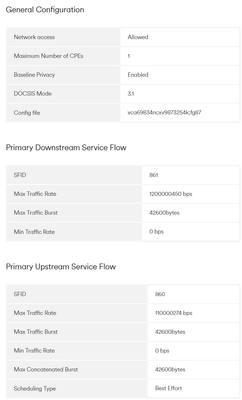

      Config

      Log

      Time Priority Description

      29-03-2024 20:48:38noticeGUI Login Status - Login Success from LAN interface
      29-03-2024 19:30:30noticeCM-STATUS message sent. Event Type Code: 24; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:27:41noticeCM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:25:45criticalReceived Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:22:28criticalStarted Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:21:35criticalSYNC Timing Synchronization failure - Loss of Sync;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:05:47warningRNG-RSP CCAP Commanded Power in Excess of 6 dB Below the Value Corresponding to the Top of the DRW;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:05:46criticalReceived Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:04:12warningRNG-RSP CCAP Commanded Power in Excess of 6 dB Below the Value Corresponding to the Top of the DRW;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:04:10criticalReceived Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:03:50warningRNG-RSP CCAP Commanded Power in Excess of 6 dB Below the Value Corresponding to the Top of the DRW;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:03:45noticeCM-STATUS message sent. Event Type Code: 24; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:03:30noticeCM-STATUS message sent. Event Type Code: 4; Chan ID: 19; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: N/A.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:03:30warningRNG-RSP CCAP Commanded Power in Excess of 6 dB Below the Value Corresponding to the Top of the DRW;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:03:09noticeCM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:03:08noticeCM-STATUS message sent. Event Type Code: 5; Chan ID: 19; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: N/A.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:03:00noticeCM-STATUS message sent. Event Type Code: 4; Chan ID: 19; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: N/A.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:02:50warningRNG-RSP CCAP Commanded Power in Excess of 6 dB Below the Value Corresponding to the Top of the DRW;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:02:39noticeCM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:02:39criticalStarted Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:02:38criticalStarted Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:02:38noticeCM-STATUS message sent. Event Type Code: 5; Chan ID: 19; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: N/A.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:02:30criticalStarted Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:02:29noticeCM-STATUS message sent. Event Type Code: 4; Chan ID: 19; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: N/A.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:02:10warningRNG-RSP CCAP Commanded Power in Excess of 6 dB Below the Value Corresponding to the Top of the DRW;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:02:09noticeCM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:02:07noticeCM-STATUS message sent. Event Type Code: 5; Chan ID: 19; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: N/A.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:01:59noticeCM-STATUS message sent. Event Type Code: 4; Chan ID: 19; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: N/A.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:01:50warningRNG-RSP CCAP Commanded Power in Excess of 6 dB Below the Value Corresponding to the Top of the DRW;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:01:38noticeCM-STATUS message sent. Event Type Code: 16; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:01:37noticeCM-STATUS message sent. Event Type Code: 5; Chan ID: 19; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: N/A.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:01:30warningRNG-RSP CCAP Commanded Power in Excess of 6 dB Below the Value Corresponding to the Top of the DRW;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
      29-03-2024 19:01:29noticeCM-STATUS message sent. Event Type Code: 4; Chan ID: 19; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: N/A.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;

      Thanks for any further assistance, it is greatly appreciated

      • jbrennand's avatar
        jbrennand
        Very Insightful Person
        2 years ago

        Difficult to see as you posted screen shots rather than text - but, your down power levels are all too high and ill be the cause of your issues.  A tech visit will be needed to get then in range (-6 to +10 dBmV)

        A VM person will respond here soon.

  • MartinD63's avatar
    MartinD63
    Tuning in
    2 years ago

    Just updating to say a technician is visiting on Monday and hopefully will get the issue resolved. Will update this post after the visit

  • Alex_RM's avatar
    Alex_RM
    Icon for Forum Team rankForum Team
    2 years ago

    Hi MartinD63,

    We've had a look at things from our side and can see you've been able to contact us since posting.

    If you do still need help with anything please let us know.

    Alex_Rm

  • MartinD63's avatar
    MartinD63
    Tuning in
    2 years ago

    Hello,

    Just providing an update that since the technician visit, I have had no issues. The issue was indeed caused by the power levels being too high. My hardware other than the hub hadn't been modified for well over a decade, so that's probably the root of the issue. Thanks for the support

    • Ashleigh_C's avatar
      Ashleigh_C
      Icon for Forum Team rankForum Team
      2 years ago

      Thank you for popping back to us MartinD63 and we are so glad to hear things are looking better now.

      If you do need any help at all in the future please do pop back here to the forums and we will do all we can to help!

      Thanks again.
