Virgin Hub 4 Modem mode - Tp Link Omada

Does anyone have any information on how I can put the router into modem mode and use the TP Link ER605 router to pass through the traffic?

I have set the Virgin hub into modem mode and entered the virgin hubs mac address into the ER605 as this seems to be required to get a WAN connection.

Upon doing this and the WAN showing as online however, it's not passing through the traffic from the Virgin hub to the ER605 thus not assigning IP addresses to my devices and the ER605 isn't getting an internet connection, I have been at this for days to no avail.

Virgin wants to charge me for technical support and to change settings which I don't understand as the feature is built into their hub.

I do not see why it's being so awkward (is the light on the Virgin hub supposed to go a different colour in modem mode) because it just stays white.

Any help will be appreciated.

  • legacy1's avatar
    legacy1
    Alessandro Volta
    3 years ago
    Connect just a PC to the hub and change to modem mode get this working you may need to power off hub for 2mins or unplug replug ethernet cable.

    Then connect PC to your router and use MAC clone to copy PC MAC to router and connect router to hub and should work.
    • Tudor's avatar
      Tudor
      Very Insightful Person
      3 years ago

      You do not need to play around with MAC addresses to get a WAN connection, but you must follow a set sequence to set up modem mode.

      How to put a VM hub into modem mode:

      1) Access your hub on 192.168.0.1, sign on and put it into modem mode. On the Hub3 the bottom LED will change to magenta, on a Hub4 the LED band will be green, on a Hub5 the LED will be green. Best done from a wired connection.

      2) Turn off the hub and disconnect any Ethernet cables

      3) Fully initialise your own router or mesh master unit and make sure the WAN port is set to DHCP (for some routers or mesh this may have to be done in router mode before entering modem mode)

      4) Connect your router or mesh master unit to the VM hub with an Ethernet cable, Cat5e or Cat6, any higher specification is a waste of money. On a Hub5 use port 4.

      5) Turn on the VM hub.

      6) You should now be able to access the internet and the hub will now be on 192.168.100.1

      Note1: this only needs doing once for each new router or when VM changes your WAN IP address.

      Note2: If you have a Hub4 and your own router is NOT 192.168.0.1 then it’s possible that you can still access the VM hub on 192.168.0.1

  • Adduxi's avatar
    Adduxi
    Very Insightful Person
    3 years ago
    logan55 wrote:

    <Snip>

    I have set the Virgin hub into modem mode and entered the virgin hubs mac address into the ER605 as this seems to be required to get a WAN connection.

    Not necessary to do this.

    Upon doing this and the WAN showing as online however, it's not passing through the traffic from the Virgin hub to the ER605 thus not assigning IP addresses to my devices and the ER605 isn't getting an internet connection, I have been at this for days to no avail.

    In Modem mode there will be no DHCP from the Hub, as your ER605 will be doing all the routing. The Hub will just be bridging to the WAN.

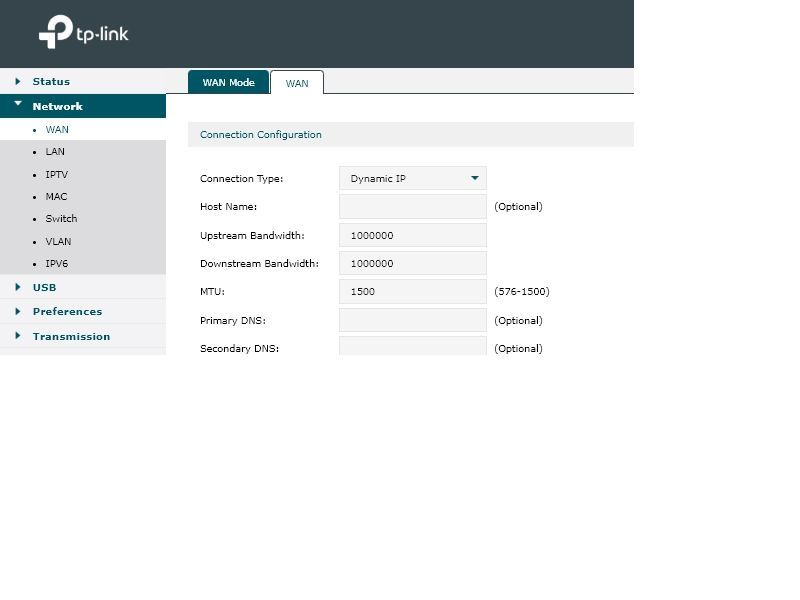

    See inline replies and good advice from Tudor     ER605 WAN link should be as below screenshot from the TP-Link emulator

    • goulding52's avatar
      goulding52
      Just joined
      2 years ago

      Hi, sorry I am late to reply to this but I only just got my new ER605 and seem to be having similar issues. I have a superhub 3, which is in modem mode already. It works with my old (and unreliable, hence the change) D-Link Router but I wanted to replace it with an ER605. The image you posted shows I should be connecting to the router as Dynamic IP (which matches most of the info I have seen online) however it is unable to connect when I do that. I am not sure if I have a damaged unit or I am just not configuring it properly.

      • carl_pearce's avatar
        carl_pearce
        Community elder
        2 years ago

        Did you reboot the HUB after swapping over the routers?

  • Carley_S's avatar
    Carley_S
    Forum Team
    3 years ago

    Hi logan55

    Welcome to community forums

    Sorry to hear that you're having issues setting up your 3rd party equipment. Though we aren't able to support 3rd party set ups, I can see that our helpful VIP's and community members have given some great support in hopes to resolve this for you.

    Please let us know if you are having any further issues or have any questions at all. We'll be here to help on the community forums if needed :).


  • CrazyRam's avatar
    CrazyRam
    Joining in
    31 days ago

    This issue as plagued me since Monday when I had to reboot my Hub3 modem and my IP changed. My er605 router is failing to pick up the new IP, previously it has worked flawlessly since December 2021. I've reset everything, will give this a try later today.

    • CrazyRam's avatar
      CrazyRam
      Joining in
      31 days ago

      Just to update. all working again thanks to Tudor's post above. Initially the hub3 passed a NAT'd address to the er605 router (which it hadn't done before) then changed to my new "again" VM supplied and populated the rest of the data i.e. subnet mask, gateway & dns.
