After a recent outage I've been seeing a lot of T3 and T4 errors.The below is following a reboot of the HUB (5) two days ago: https://www.thinkbroadband.com/broadband/monitoring/quality/share/f456cb37eb5964be55ad4b06a2cd7bb8604b6d51The connection itself appears 'ok', however, something is amiss.Service status shows ok sometimes, and local issues occasionally.Would be useful to know if VM are are aware and looking into it.Thanks.

Cable Modem StatusItem Status TypeChannel Overview Downstream UpstreamCable Modem StatusOnlineDOCSIS 3.0Primary downstream channelLockedSC-QAMDOCSIS 3.0 channels325DOCSIS 3.1 channels113.0 Downstream channelsChannel Frequency (Hz) Power (dBmV) SNR (dB) Modulation Channel ID 13550000003.338QAM 256282139000000438QAM 25613147000000438QAM 25624155000000438QAM 256351630000003.738QAM 256461710000003.638QAM 256571790000003.438QAM 256681870000003.439QAM 256791950000003.539QAM 2568102030000003.339QAM 2569112110000003.439QAM 25610122190000002.939QAM 25611132270000002.739QAM 25612142350000002.439QAM 2561315243000000239QAM 25614162510000001.939QAM 25615172590000001.639QAM 25616182670000001.739QAM 25617192750000002.139QAM 25618202830000002.338QAM 25619212910000002.838QAM 25620222990000002.938QAM 2562123307000000338QAM 25622243150000003.238QAM 2562325323000000338QAM 25624263310000003.238QAM 25625273390000003.338QAM 25626283470000003.338QAM 25627293630000002.939QAM 25629303710000003.239QAM 25630313790000003.139QAM 2563132387000000339QAM 256323.0 Downstream channelsChannel Locked Status RxMER (dB) Pre RS Errors Post RS Errors 1Locked385943002Locked386333143Locked386673694Locked386103655Locked386193656Locked386023977Locked385623168Locked395752299Locked3955034310Locked3953536711Locked3951226012Locked3950336913Locked3949917014Locked3951731115Locked3958439116Locked3953435717Locked3951639318Locked3953521219Locked3952722420Locked3856524221Locked3865626322Locked3866028423Locked3868323524Locked3865326825Locked3868622226Locked3867325427Locked3870133028Locked3867827129Locked3955341730Locked3949617531Locked3953126332Locked394833193.1 Downstream channelsChannel Channel Width (MHz) FFT Type Number of Active Subcarriers Modulation (Active Profile) First Active Subcarrier (Hz) 159944K1840QAM 409611083.1 Downstream channelsChannel ID Locked Status RxMER Data (dB) PLC Power (dBmV) Corrected errors (Active Profile) Uncorrectable errors (Active Profile) 159Locked38-1.7284953014439

Network LogTime Priority Description 12-08-2024 19:04:54noticeGUI Login Status - Login Success from LAN interface12-08-2024 17:26:50warningDBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;12-08-2024 17:26:50noticeUS profile assignment change. US Chan ID: 6; Previous Profile: 12 13; New Profile: 11 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;12-08-2024 16:25:17noticeUS profile assignment change. US Chan ID: 6; Previous Profile: 11 13; New Profile: 12 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;12-08-2024 16:25:17warningDBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;12-08-2024 15:15:39warningDBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;12-08-2024 15:15:39noticeUS profile assignment change. US Chan ID: 6; Previous Profile: 12 13; New Profile: 11 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;12-08-2024 15:05:36warningDBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;12-08-2024 15:05:36noticeUS profile assignment change. US Chan ID: 6; Previous Profile: 11 13; New Profile: 12 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;12-08-2024 14:05:06warningRNG-RSP CCAP Commanded Power Exceeds Value Corresponding to the Top of the DRW;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;12-08-2024 14:05:06warningDynamic Range Window violation12-08-2024 13:44:58warningDBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;12-08-2024 13:44:58noticeUS profile assignment change. US Chan ID: 6; Previous Profile: 12 13; New Profile: 11 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;12-08-2024 13:31:30critical16 consecutive T3 timeouts while trying to range on upstream channel 8;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;12-08-2024 13:31:30criticalUnicast Maintenance Ranging attempted - No response - Retries exhausted;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;12-08-2024 13:26:30criticalStarted Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;12-08-2024 13:24:46warningDBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;12-08-2024 13:24:46warningTCS Partial Service;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;12-08-2024 13:24:45noticeUS profile assignment change. US Chan ID: 6; Previous Profile: 11 13; New Profile: 12 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;12-08-2024 10:48:22criticalReceived Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;12-08-2024 10:45:06criticalStarted Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;12-08-2024 10:43:24noticeUS profile assignment change. US Chan ID: 6; Previous Profile: 12 13; New Profile: 11 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;12-08-2024 10:43:24warningTCS Partial Service;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;12-08-2024 10:43:24warningDBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;12-08-2024 10:37:37criticalReceived Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;12-08-2024 10:34:21criticalStarted Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;12-08-2024 10:33:19noticeUS profile assignment change. US Chan ID: 6; Previous Profile: 11 13; New Profile: 12 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;12-08-2024 10:33:19warningTCS Partial Service;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;12-08-2024 10:33:19warningDBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;12-08-2024 10:03:00warningDBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;12-08-2024 10:03:00noticeUS profile assignment change. US Chan ID: 6; Previous Profile: 12 13; New Profile: 11 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;12-08-2024 08:51:56noticeUS profile assignment change. US Chan ID: 6; Previous Profile: 11 13; New Profile: 12 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;12-08-2024 08:51:56warningDBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;

3.0 Upstream channelsChannel Frequency (Hz) Power (dBmV) Symbol Rate (ksps) Modulation Channel ID 04960000041.85120QAM 64114310000041.55120QAM 64223660000040.55120QAM 64333010000040.35120QAM 64442360000039.85120QAM 6453.0 Upstream channelsChannel Channel Type T1 Timeouts T2 Timeouts T3 Timeouts T4 Timeouts 0ATDMA00001ATDMA00002ATDMA001713ATDMA003224ATDMA003223.1 Upstream channelsChannel Channel Width (MHz) Power (dBmV) FFT Type Modulation 61035.72KQAM 2563.1 Upstream channelsChannel Channel Type Number of Active Subcarriers First Active Subcarrier (Hz) T3 Timeouts T4 Timeouts 6OFDMA200740000001809

Hi carl_pearce, Sorry to see there's been some errors with the hub, I've had a look at things from our side and it looks like we've identified a network issue and a engineer is needed. I've popped you over a private message to get a few more details from you. Alex_Rm

This issue is still occuring. The engineer did some checks and asked me to try generic things like reseting the HUB. He also stated that the local cabinet may need a fan fitting due to overheating and to give it a few weeks.This is the number of errors, so far, with a HUB uptime of 8 days:3.0 Upstream channelsChannel Channel Type T1 Timeouts T2 Timeouts T3 Timeouts T4 Timeouts 0ATDMA00001ATDMA00002ATDMA00003ATDMA00304ATDMA00003.1 Upstream channelsChannel Channel Width (MHz) Power (dBmV) FFT Type Modulation 61035.52KQAM 2563.1 Upstream channelsChannel Channel Type Number of Active Subcarriers First Active Subcarrier (Hz) T3 Timeouts T4 Timeouts 6OFDMA2007400000038614 Network LogTime Priority Description 19-09-2024 13:48:44noticeGUI Login Status - Login Success from LAN interface19-09-2024 13:46:51noticeGUI Login Status - Login Success from LAN interface19-09-2024 11:58:23criticalReceived Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;19-09-2024 11:55:07criticalStarted Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;19-09-2024 11:53:10warningTCS Partial Service;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;19-09-2024 11:53:10noticeUS profile assignment change. US Chan ID: 6; Previous Profile: 12 13; New Profile: 11 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;19-09-2024 11:53:10warningDBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;19-09-2024 11:43:04noticeUS profile assignment change. US Chan ID: 6; Previous Profile: 11 13; New Profile: 12 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;19-09-2024 11:43:04warningDBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;19-09-2024 11:12:46warningDBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;19-09-2024 11:12:46noticeUS profile assignment change. US Chan ID: 6; Previous Profile: 12 13; New Profile: 11 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;19-09-2024 11:02:43noticeUS profile assignment change. US Chan ID: 6; Previous Profile: 11 13; New Profile: 12 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;19-09-2024 11:02:43warningDBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;19-09-2024 09:32:08noticeUS profile assignment change. US Chan ID: 6; Previous Profile: 12 13; New Profile: 11 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;19-09-2024 09:32:08warningDBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;19-09-2024 09:27:18criticalReceived Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;19-09-2024 09:24:02criticalStarted Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;19-09-2024 09:22:05warningTCS Partial Service;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;19-09-2024 09:22:05warningDBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;19-09-2024 09:22:05noticeUS profile assignment change. US Chan ID: 6; Previous Profile: 11 13; New Profile: 12 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;19-09-2024 08:11:33warningDBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;19-09-2024 08:11:33noticeUS profile assignment change. US Chan ID: 6; Previous Profile: 12 13; New Profile: 11 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;19-09-2024 08:07:29criticalUnicast Maintenance Ranging attempted - No response - Retries exhausted;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;19-09-2024 08:07:29critical16 consecutive T3 timeouts while trying to range on upstream channel 8;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;19-09-2024 08:03:09criticalStarted Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;19-09-2024 08:01:26warningTCS Partial Service;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;19-09-2024 08:01:26warningDBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;19-09-2024 08:01:26noticeUS profile assignment change. US Chan ID: 6; Previous Profile: 11 13; New Profile: 12 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;19-09-2024 03:09:01warningDBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;19-09-2024 03:09:01noticeUS profile assignment change. US Chan ID: 6; Previous Profile: 12 13; New Profile: 11 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;19-09-2024 02:59:00noticeUS profile assignment change. US Chan ID: 6; Previous Profile: 11 13; New Profile: 12 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;19-09-2024 02:59:00warningDBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;19-09-2024 01:48:19noticeUS profile assignment change. US Chan ID: 6; Previous Profile: 12 13; New Profile: 11 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;19-09-2024 01:48:19warningDBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;

T3 and T4 timeouts after outage | Virgin Media Community

carl_pearce

Community elder

6 months ago

Cable Modem StatusItem Status TypeChannel Overview Downstream Upstream

Cable Modem Status	Online	DOCSIS 3.0
Primary downstream channel	Locked	SC-QAM
DOCSIS 3.0 channels	32	5
DOCSIS 3.1 channels	1	1

3.0 Downstream channels

Channel Frequency (Hz) Power (dBmV) SNR (dB) Modulation Channel ID

1	355000000	3.3	38	QAM 256	28
2	139000000	4	38	QAM 256	1
3	147000000	4	38	QAM 256	2
4	155000000	4	38	QAM 256	3
5	163000000	3.7	38	QAM 256	4
6	171000000	3.6	38	QAM 256	5
7	179000000	3.4	38	QAM 256	6
8	187000000	3.4	39	QAM 256	7
9	195000000	3.5	39	QAM 256	8
10	203000000	3.3	39	QAM 256	9
11	211000000	3.4	39	QAM 256	10
12	219000000	2.9	39	QAM 256	11
13	227000000	2.7	39	QAM 256	12
14	235000000	2.4	39	QAM 256	13
15	243000000	2	39	QAM 256	14
16	251000000	1.9	39	QAM 256	15
17	259000000	1.6	39	QAM 256	16
18	267000000	1.7	39	QAM 256	17
19	275000000	2.1	39	QAM 256	18
20	283000000	2.3	38	QAM 256	19
21	291000000	2.8	38	QAM 256	20
22	299000000	2.9	38	QAM 256	21
23	307000000	3	38	QAM 256	22
24	315000000	3.2	38	QAM 256	23
25	323000000	3	38	QAM 256	24
26	331000000	3.2	38	QAM 256	25
27	339000000	3.3	38	QAM 256	26
28	347000000	3.3	38	QAM 256	27
29	363000000	2.9	39	QAM 256	29
30	371000000	3.2	39	QAM 256	30
31	379000000	3.1	39	QAM 256	31
32	387000000	3	39	QAM 256	32

3.0 Downstream channels

Channel Locked Status RxMER (dB) Pre RS Errors Post RS Errors

1	Locked	38	594	300
2	Locked	38	633	314
3	Locked	38	667	369
4	Locked	38	610	365
5	Locked	38	619	365
6	Locked	38	602	397
7	Locked	38	562	316
8	Locked	39	575	229
9	Locked	39	550	343
10	Locked	39	535	367
11	Locked	39	512	260
12	Locked	39	503	369
13	Locked	39	499	170
14	Locked	39	517	311
15	Locked	39	584	391
16	Locked	39	534	357
17	Locked	39	516	393
18	Locked	39	535	212
19	Locked	39	527	224
20	Locked	38	565	242
21	Locked	38	656	263
22	Locked	38	660	284
23	Locked	38	683	235
24	Locked	38	653	268
25	Locked	38	686	222
26	Locked	38	673	254
27	Locked	38	701	330
28	Locked	38	678	271
29	Locked	39	553	417
30	Locked	39	496	175
31	Locked	39	531	263
32	Locked	39	483	319

3.1 Downstream channels

Channel Channel Width (MHz) FFT Type Number of Active Subcarriers Modulation (Active Profile) First Active Subcarrier (Hz)

159

1840

QAM 4096

1108

3.1 Downstream channels

Channel ID Locked Status RxMER Data (dB) PLC Power (dBmV) Corrected errors (Active Profile) Uncorrectable errors (Active Profile)

159

Locked

-1.7

2849530144

carl_pearce

Community elder

6 months ago

Network Log

Time Priority Description

12-08-2024 19:04:54	notice	GUI Login Status - Login Success from LAN interface
12-08-2024 17:26:50	warning	DBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
12-08-2024 17:26:50	notice	US profile assignment change. US Chan ID: 6; Previous Profile: 12 13; New Profile: 11 13.;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
12-08-2024 16:25:17	notice	US profile assignment change. US Chan ID: 6; Previous Profile: 11 13; New Profile: 12 13.;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
12-08-2024 16:25:17	warning	DBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
12-08-2024 15:15:39	warning	DBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
12-08-2024 15:15:39	notice	US profile assignment change. US Chan ID: 6; Previous Profile: 12 13; New Profile: 11 13.;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
12-08-2024 15:05:36	warning	DBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
12-08-2024 15:05:36	notice	US profile assignment change. US Chan ID: 6; Previous Profile: 11 13; New Profile: 12 13.;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
12-08-2024 14:05:06	warning	RNG-RSP CCAP Commanded Power Exceeds Value Corresponding to the Top of the DRW;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
12-08-2024 14:05:06	warning	Dynamic Range Window violation
12-08-2024 13:44:58	warning	DBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
12-08-2024 13:44:58	notice	US profile assignment change. US Chan ID: 6; Previous Profile: 12 13; New Profile: 11 13.;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
12-08-2024 13:31:30	critical	16 consecutive T3 timeouts while trying to range on upstream channel 8;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
12-08-2024 13:31:30	critical	Unicast Maintenance Ranging attempted - No response - Retries exhausted;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
12-08-2024 13:26:30	critical	Started Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
12-08-2024 13:24:46	warning	DBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
12-08-2024 13:24:46	warning	TCS Partial Service;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
12-08-2024 13:24:45	notice	US profile assignment change. US Chan ID: 6; Previous Profile: 11 13; New Profile: 12 13.;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
12-08-2024 10:48:22	critical	Received Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
12-08-2024 10:45:06	critical	Started Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
12-08-2024 10:43:24	notice	US profile assignment change. US Chan ID: 6; Previous Profile: 12 13; New Profile: 11 13.;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
12-08-2024 10:43:24	warning	TCS Partial Service;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
12-08-2024 10:43:24	warning	DBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
12-08-2024 10:37:37	critical	Received Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
12-08-2024 10:34:21	critical	Started Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
12-08-2024 10:33:19	notice	US profile assignment change. US Chan ID: 6; Previous Profile: 11 13; New Profile: 12 13.;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
12-08-2024 10:33:19	warning	TCS Partial Service;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
12-08-2024 10:33:19	warning	DBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
12-08-2024 10:03:00	warning	DBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
12-08-2024 10:03:00	notice	US profile assignment change. US Chan ID: 6; Previous Profile: 12 13; New Profile: 11 13.;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
12-08-2024 08:51:56	notice	US profile assignment change. US Chan ID: 6; Previous Profile: 11 13; New Profile: 12 13.;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
12-08-2024 08:51:56	warning	DBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;

carl_pearce
Community elder
6 months ago
3.0 Upstream channels
Channel Frequency (Hz) Power (dBmV) Symbol Rate (ksps) Modulation Channel ID
0 49600000 41.8 5120 QAM 64 1
1 43100000 41.5 5120 QAM 64 2
2 36600000 40.5 5120 QAM 64 3
3 30100000 40.3 5120 QAM 64 4
4 23600000 39.8 5120 QAM 64 5
3.0 Upstream channels
Channel Channel Type T1 Timeouts T2 Timeouts T3 Timeouts T4 Timeouts
0 ATDMA 0 0 0 0
1 ATDMA 0 0 0 0
2 ATDMA 0 0 17 1
3 ATDMA 0 0 32 2
4 ATDMA 0 0 32 2
3.1 Upstream channels
Channel Channel Width (MHz) Power (dBmV) FFT Type Modulation
6 10 35.7 2K QAM 256
3.1 Upstream channels
Channel Channel Type Number of Active Subcarriers First Active Subcarrier (Hz) T3 Timeouts T4 Timeouts
6 OFDMA 200 74000000 180 9
- Alex_RM
  Forum Team
  6 months ago
  Hi carl_pearce,

  Sorry to see there's been some errors with the hub, I've had a look at things from our side and it looks like we've identified a network issue and a engineer is needed.

  I've popped you over a private message to get a few more details from you.

  Alex_Rm

carl_pearce

Community elder

4 months ago

This issue is still occuring. The engineer did some checks and asked me to try generic things like reseting the HUB. He also stated that the local cabinet may need a fan fitting due to overheating and to give it a few weeks.

This is the number of errors, so far, with a HUB uptime of 8 days:

3.0 Upstream channels

Channel Channel Type T1 Timeouts T2 Timeouts T3 Timeouts T4 Timeouts

0	ATDMA	0
1	ATDMA	0
2	ATDMA	0
3	ATDMA	3
4	ATDMA	0

3.1 Upstream channels

Channel Channel Width (MHz) Power (dBmV) FFT Type Modulation

35.5

QAM 256

3.1 Upstream channels

Channel Channel Type Number of Active Subcarriers First Active Subcarrier (Hz) T3 Timeouts T4 Timeouts

OFDMA

200

74000000

386

Network Log

Time Priority Description

19-09-2024 13:48:44	notice	GUI Login Status - Login Success from LAN interface
19-09-2024 13:46:51	notice	GUI Login Status - Login Success from LAN interface
19-09-2024 11:58:23	critical	Received Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
19-09-2024 11:55:07	critical	Started Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
19-09-2024 11:53:10	warning	TCS Partial Service;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
19-09-2024 11:53:10	notice	US profile assignment change. US Chan ID: 6; Previous Profile: 12 13; New Profile: 11 13.;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
19-09-2024 11:53:10	warning	DBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
19-09-2024 11:43:04	notice	US profile assignment change. US Chan ID: 6; Previous Profile: 11 13; New Profile: 12 13.;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
19-09-2024 11:43:04	warning	DBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
19-09-2024 11:12:46	warning	DBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
19-09-2024 11:12:46	notice	US profile assignment change. US Chan ID: 6; Previous Profile: 12 13; New Profile: 11 13.;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
19-09-2024 11:02:43	notice	US profile assignment change. US Chan ID: 6; Previous Profile: 11 13; New Profile: 12 13.;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
19-09-2024 11:02:43	warning	DBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
19-09-2024 09:32:08	notice	US profile assignment change. US Chan ID: 6; Previous Profile: 12 13; New Profile: 11 13.;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
19-09-2024 09:32:08	warning	DBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
19-09-2024 09:27:18	critical	Received Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
19-09-2024 09:24:02	critical	Started Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
19-09-2024 09:22:05	warning	TCS Partial Service;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
19-09-2024 09:22:05	warning	DBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
19-09-2024 09:22:05	notice	US profile assignment change. US Chan ID: 6; Previous Profile: 11 13; New Profile: 12 13.;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
19-09-2024 08:11:33	warning	DBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
19-09-2024 08:11:33	notice	US profile assignment change. US Chan ID: 6; Previous Profile: 12 13; New Profile: 11 13.;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
19-09-2024 08:07:29	critical	Unicast Maintenance Ranging attempted - No response - Retries exhausted;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
19-09-2024 08:07:29	critical	16 consecutive T3 timeouts while trying to range on upstream channel 8;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
19-09-2024 08:03:09	critical	Started Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
19-09-2024 08:01:26	warning	TCS Partial Service;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
19-09-2024 08:01:26	warning	DBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
19-09-2024 08:01:26	notice	US profile assignment change. US Chan ID: 6; Previous Profile: 11 13; New Profile: 12 13.;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
19-09-2024 03:09:01	warning	DBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
19-09-2024 03:09:01	notice	US profile assignment change. US Chan ID: 6; Previous Profile: 12 13; New Profile: 11 13.;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
19-09-2024 02:59:00	notice	US profile assignment change. US Chan ID: 6; Previous Profile: 11 13; New Profile: 12 13.;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
19-09-2024 02:59:00	warning	DBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
19-09-2024 01:48:19	notice	US profile assignment change. US Chan ID: 6; Previous Profile: 12 13; New Profile: 11 13.;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
19-09-2024 01:48:19	warning	DBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;

Steven_L

Forum Team

4 months ago

Thanks for coming back to us carl_pearce, I've looked further into this and have checked the local area and your connection and cannot see anything that would be causing the issues that you're experiencing, has anything changed on your side since you last posted?

Kind Regards,

Steven_L

carl_pearce

Community elder

4 months ago

No, other than more errors:

3.0 Upstream channels

Channel Channel Type T1 Timeouts T2 Timeouts T3 Timeouts T4 Timeouts

0	ATDMA	0
1	ATDMA	0
2	ATDMA	0
3	ATDMA	3
4	ATDMA	18

3.1 Upstream channels

Channel Channel Width (MHz) Power (dBmV) FFT Type Modulation

34.0

QAM 256

3.1 Upstream channels

Channel Channel Type Number of Active Subcarriers First Active Subcarrier (Hz) T3 Timeouts T4 Timeouts

OFDMA

200

74000000

818

Network Log

Time Priority Description

23-09-2024 04:52:12	critical	Received Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
23-09-2024 04:48:56	critical	Started Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
23-09-2024 04:47:06	warning	DBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
23-09-2024 04:47:06	notice	US profile assignment change. US Chan ID: 6; Previous Profile: 12 13; New Profile: 11 13.;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
23-09-2024 04:47:06	warning	TCS Partial Service;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
23-09-2024 03:37:04	notice	US profile assignment change. US Chan ID: 6; Previous Profile: 11 13; New Profile: 12 13.;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
23-09-2024 03:37:04	warning	DBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
22-09-2024 23:50:44	critical	Unicast Maintenance Ranging attempted - No response - Retries exhausted;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
22-09-2024 23:50:44	critical	16 consecutive T3 timeouts while trying to range on upstream channel 8;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
22-09-2024 23:46:44	critical	Started Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
22-09-2024 23:44:53	notice	US profile assignment change. US Chan ID: 6; Previous Profile: 12 13; New Profile: 11 13.;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
22-09-2024 23:44:53	warning	TCS Partial Service;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
22-09-2024 23:44:53	warning	DBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
22-09-2024 23:34:48	notice	US profile assignment change. US Chan ID: 6; Previous Profile: 11 13; New Profile: 12 13.;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
22-09-2024 23:34:48	warning	DBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
22-09-2024 22:24:08	notice	US profile assignment change. US Chan ID: 6; Previous Profile: 12 13; New Profile: 11 13.;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
22-09-2024 22:24:08	warning	DBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
22-09-2024 22:18:23	critical	Received Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
22-09-2024 22:15:07	critical	Started Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
22-09-2024 22:14:05	warning	DBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
22-09-2024 22:14:05	notice	US profile assignment change. US Chan ID: 6; Previous Profile: 11 13; New Profile: 12 13.;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
22-09-2024 22:14:05	warning	TCS Partial Service;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
22-09-2024 22:04:04	notice	US profile assignment change. US Chan ID: 6; Previous Profile: 12 13; New Profile: 11 13.;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
22-09-2024 22:04:04	warning	DBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
22-09-2024 21:49:12	critical	Received Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
22-09-2024 21:45:56	critical	Started Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
22-09-2024 21:43:59	warning	TCS Partial Service;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
22-09-2024 21:43:59	notice	US profile assignment change. US Chan ID: 6; Previous Profile: 11 13; New Profile: 12 13.;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
22-09-2024 21:43:59	warning	DBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
22-09-2024 21:33:58	notice	US profile assignment change. US Chan ID: 6; Previous Profile: 12 13; New Profile: 11 13.;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
22-09-2024 21:33:58	warning	DBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;
22-09-2024 21:23:56	warning	DBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=:::::;CMTS-MAC=:::::;CM-QOS=1.1;CM-VER=3.1;

carl_pearce
Community elder
4 months ago
3.1 Upstream channels
Channel Channel Width (MHz) Power (dBmV) FFT Type Modulation
6 10 34.7 2K QAM 256
3.1 Upstream channels
Channel Channel Type Number of Active Subcarriers First Active Subcarrier (Hz) T3 Timeouts T4 Timeouts
6 OFDMA 200 74000000 452 17
carl_pearce
Community elder
4 months ago
3.1 Upstream channels
Channel Channel Width (MHz) Power (dBmV) FFT Type Modulation
6 10 34.2 2K QAM 256
3.1 Upstream channels
Channel Channel Type Number of Active Subcarriers First Active Subcarrier (Hz) T3 Timeouts T4 Timeouts
6 OFDMA 200 74000000 850 34

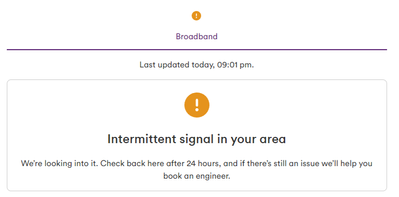

I've been seeing "Intermittent signal in your area" in the status checker, which disappears the next day, for over a month now.
- Kath_P
  Forum Team
  4 months ago
  Hi carl_pearce,

  Thanks for coming back to us on this one. Checking things here, the hub is showing online, power and signal levels are all within the optimal range and there is nothing showing for your area. The hub is showing an uptime of 15 days so please reboot the hub fully. This will reset the errors and refresh your connection.

  Keep an eye on how the connection is and let us know if you have any issues. A few timeouts isn't uncommon but do let us know what issues with the connection you're having too so we can help further.

  Thanks,
  - carl_pearce
    Community elder
    4 months ago
    Over 800 timeouts in three days is not what I would consider normal.
    I will do as you ask and report back.
legacy1
Alessandro Volta
4 months ago

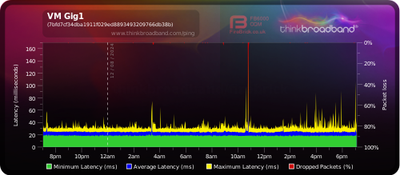

Your BQM for today looks ok
- carl_pearce
  Community elder
  4 months ago
  legacy1 wrote:
  Your BQM for today looks ok
  It always has looked 'ok', yet the timeouts persist.
  - David_Bn
    Forum Team
    4 months ago
    Good Morning carl_pearce, can you please confirm if you've been able to run the test advised by legacy1 to offer us any updates?

    Thanks,

    David_Bn
legacy1
Alessandro Volta
4 months ago
what about if you run this test
Continuous internet speed test tool (startrinity.com)
carl_pearce
Community elder
4 months ago
carl_pearce
Community elder
4 months ago
3.1 Upstream channels
Channel Channel Width (MHz) Power (dBmV) FFT Type Modulation
6 10 35.0 2K QAM 256
3.1 Upstream channels
Channel Channel Type Number of Active Subcarriers First Active Subcarrier (Hz) T3 Timeouts T4 Timeouts
6 OFDMA 200 74000000 448 19
