Forum Discussion

chunkos's avatar
chunkos
Tuning in
20 days ago

Random disconnects and drop outs

I have been getting frequent drop outs and have now found that when I have a drop out I get these in the network log, is this something to look into or? On a Hub 4... and using Orb for my wifi mesh..

Time    Priority Description

Thu 30/01/2025

16:30:12          6          US profile assignment change. US Chan ID: 6; Previous Profile: 12; New Profile: 11.;CM-MAC=[MOD EDIT: Removed];CMTS-MAC=04:2a:e2:c6:f6:40;CM-QOS=1.1;CM-VER=3.1;

Thu 30/01/2025

16:30:12          5          DBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;CM-MAC=[MOD EDIT: Removed];CMTS-MAC=04:2a:e2:c6:f6:40;CM-QOS=1.1;CM-VER=3.1;

Thu 30/01/2025

14:08:52          6          US profile assignment change. US Chan ID: 6; Previous Profile: 12; New Profile: 11.;CM-MAC=[MOD EDIT: Removed];CMTS-MAC=04:2a:e2:c6:f6:40;CM-QOS=1.1;CM-VER=3.1;

Thu 30/01/2025

13:40:58          3          No Ranging Response received - T3 time-out;CM-MAC=[MOD EDIT: Removed];CMTS-MAC=04:2a:e2:c6:f6:40;CM-QOS=1.1;CM-VER=3.1;

Thu 30/01/2025

13:09:36          6          CM-STATUS message sent. Event Type Code: 23; Chan ID: 159; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: N/A.;CM-MAC=[MOD EDIT: Removed];CMTS-MAC=04:2a:e2:c6:f6:40;CM-QOS=1.1;CM-VER=3.1;

Thu 30/01/2025

13:09:22          3          SYNC Timing Synchronization failure - Loss of Sync;CM-MAC=[MOD EDIT: Removed];CMTS-MAC=04:2a:e2:c6:f6:40;CM-QOS=1.1;CM-VER=3.1;





  • Client62's avatar
    Client62
    Alessandro Volta

    Is it the VM connection or the Orb that is having the beauty school dropouts ?

    How are you determining which is the culprit ?

    • chunkos's avatar
      chunkos
      Tuning in

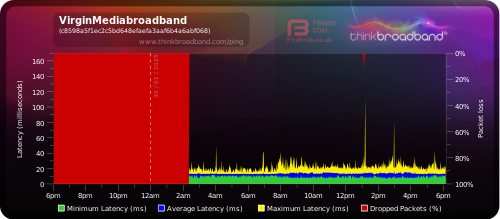

      I don't see any issues logged in the Orbi logs plus setup quality monitor for hub at following address for last few days: https://www.thinkbroadband.com/broadband/monitoring/quality/share/3e260255247c31a427a2e0bc59a5c43138741c55

    • chunkos's avatar
      chunkos
      Tuning in

      Plus see dropouts on upstream:

      3.1 Upstream channels

      Channel           Channel Type  Number of Active Subcarriers First Active Subcarrier (Hz)     T3 Timeouts    T4 Timeouts

      6          OFDMA           200      53.9     5          0

      • Carley_S's avatar
        Carley_S
        Forum Team

        Hi chunkos

        Welcome to the Community Forums.

        Sorry to hear that you're experiencing connection issues.

        Checking the systems on our side we can see that there was an issue identified over the weekend which now looks to have been resolved as of Sunday.

        Please let us know if you've any further questions or concerns, we can provide general help and support via social media if needed.

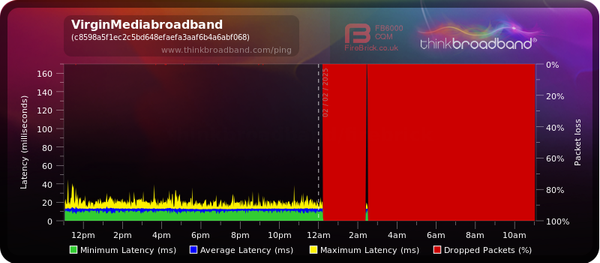

  • And again https://www.thinkbroadband.com/broadband/monitoring/quality/share/3e260255247c31a427a2e0bc59a5c43138741c55



  • Client62's avatar
    Client62
    Alessandro Volta

    What happened during the hours of the red period on the BQM ?

    • chunkos's avatar
      chunkos
      Tuning in

      I still seem to get Internet access but strange why shows this pocketless!

  • had a few disconnects again... hub log states the following:

    Sun 02/02/2025

    14:55:55          6          US profile assignment change. US Chan ID: 6; Previous Profile: ; New Profile: 11.;[MOD EDIT: PERSONAL INFORMATION REMOVED];CMTS-MAC=04:2a:e2:c6:f6:40;CM-QOS=1.1;CM-VER=3.1;

    Sun 02/02/2025

    14:55:55          5          DBC-REQ Mismatch Between Calculated Value for P1.6hi Compared to CCAP Provided Value;[MOD EDIT: PERSONAL INFORMATION REMOVED ;CMTS-MAC=04:2a:e2:c6:f6:40;CM-QOS=1.1;CM-VER=3.1;

    Sun 02/02/2025

    14:55:37          6          CMSTATUS:US_Diplexer_Mode_Change_Ignore: (TLV-9) , (5-85) ;CM-[MOD EDIT: PERSONAL INFORMATION REMOVED]MAC=04:2a:e2:c6:f6:40;CM-QOS=1.1;CM-VER=3.1;

    Sun 02/02/2025

    14:55:37          5          MIMO Event MIMO: Stored MIMO=-1 post cfg file MIMO=-1;CM-[MOD EDIT: PERSONAL INFORMATION REMOVED];CMTS-MAC=04:2a:e2:c6:f6:40;CM-QOS=1.1;CM-VER=3.1;

  • Client62's avatar
    Client62
    Alessandro Volta

    "I still seem to get Internet access but strange why shows this ... "

    The #1 reason for seeing this is using a BQM that does not point to your Public IP.

    The #2 reason would be your Hub and / or ORB router were powered off in that period,
    from your comments, this was not the case.

    • Winelist's avatar
      Winelist
      On our wavelength

      You know, in the past people would be advised to NOT send screenshots but instead copy and paste the Hub details because the forum software would automatically filter out MAC addresses.

      Except in the above example which are a copy and paste it hasn’t - do you suppose that the ‘new’ forum software no longer has that facility? In which case the forum mods now have a lot more work to do!

    • chunkos's avatar
      chunkos
      Tuning in

      I checked my public ip address through whatismyip when adding to BQM so is correct. Both Hub and Orbi router haven't been off. So very strange...

      • Client62's avatar
        Client62
        Alessandro Volta

        Any use of a VPN or Web Proxy or use Apple Relay and whatismyip  will return the IP of a VPN exit point & not your VM connection.

        Locate your IP from the VM Hub or from your ORB Router.

        If you did not suffer a total black out during the BQM red zone - that is not your Public IP.

  • Client62's avatar
    Client62
    Alessandro Volta

    I'd pass on posting the Hub's Log status tab.

    The far more informative info about why there is a VM connection
    issue is detailed in the Hub's Upload / Download status tabs.

    • chunkos's avatar
      chunkos
      Tuning in

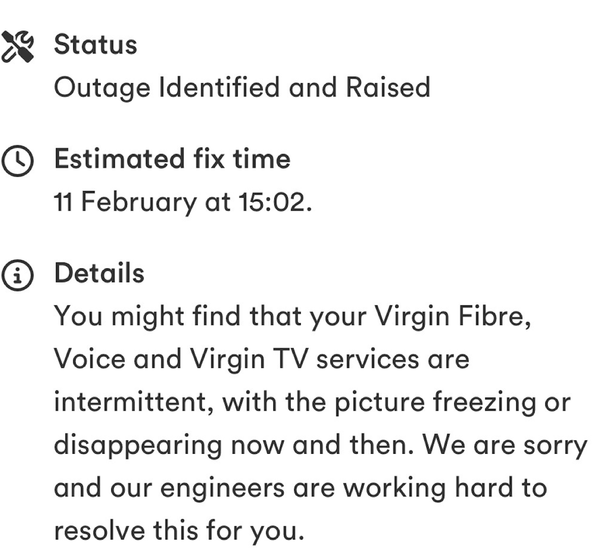

      Now have an outage with potential fix of 4 days.. not great service at all...
