TV360 Signal Connection, Short Connecting Cable

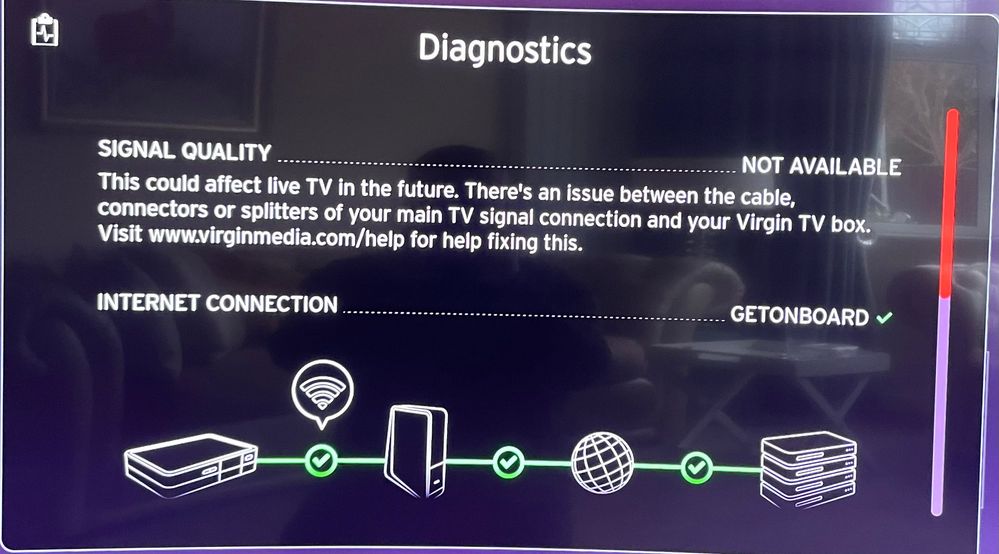

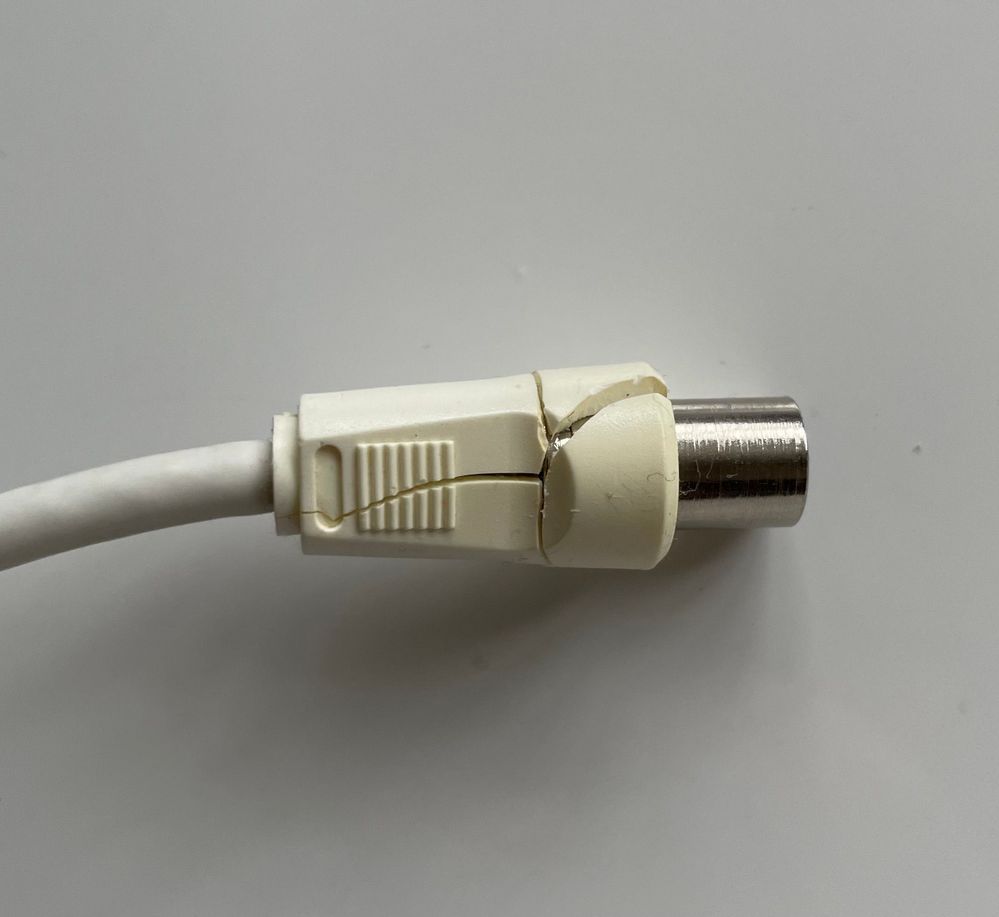

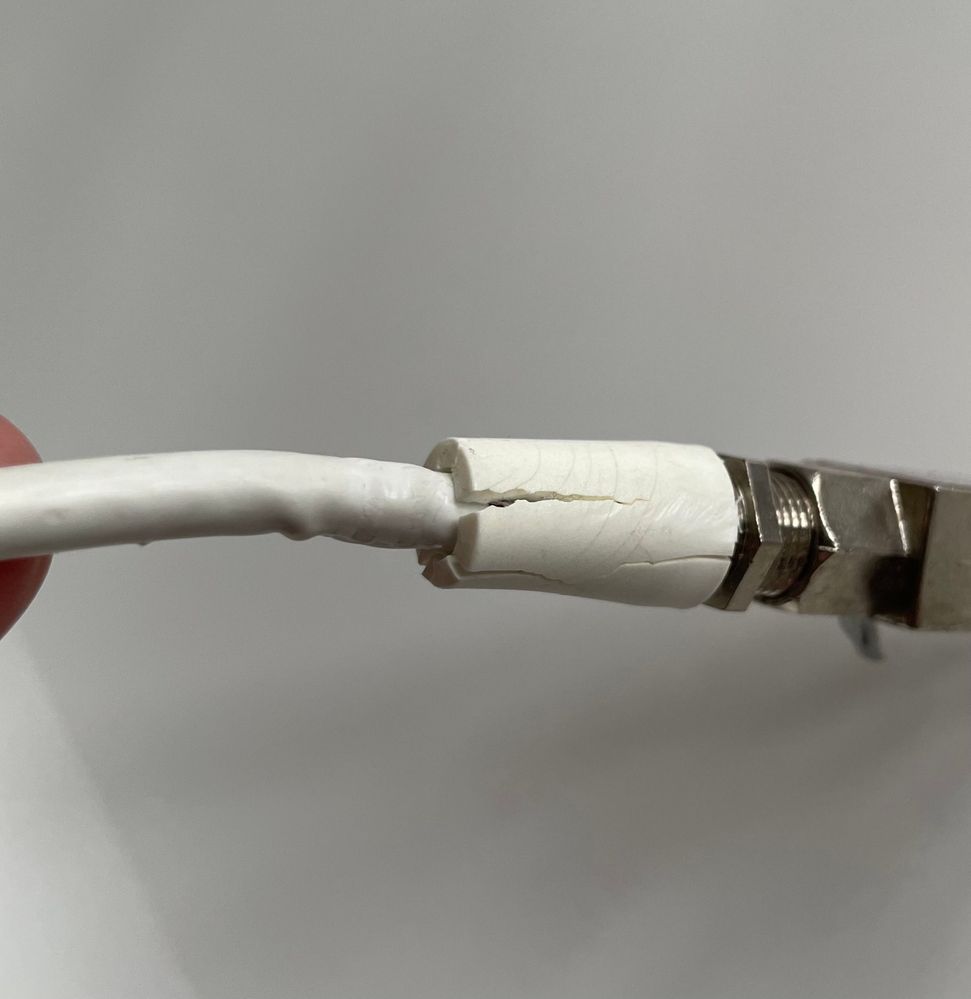

I have been having issues with the picture quality and when I ran the diagnostics it says “Signal quality not available” and gives an explanation what it could be, when I have checked the cable you can see it has started to break down and looks like it has been getting hot? I have added a few screen shots of the issue.

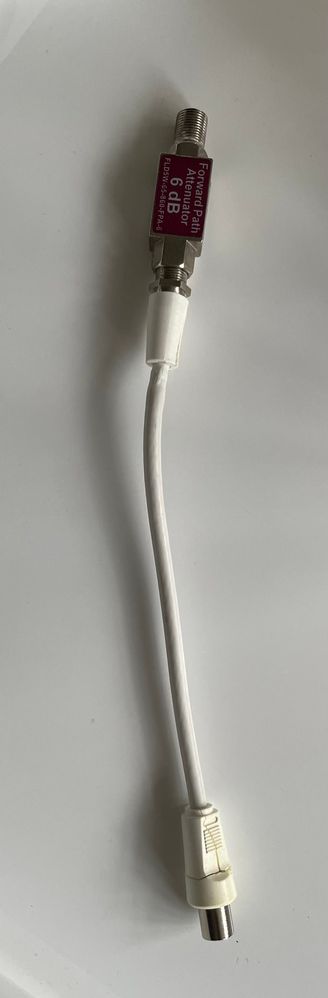

Where do I get a replacement cable from as pictured below. I tried to explain what was needed but they didn’t understand.



9 Replies

Sort By
  • Roger_Gooner's avatar
    Roger_Gooner
    Alessandro Volta
    2 years ago

    Remove the attenuator and see if that makes a difference.

    • DavidM71's avatar
      DavidM71
      On our wavelength
      2 years ago

      Hi Roger. Thanks for your input, I have removed it and now the signal quality is good. Can it go better than that or is that the norm? Just need to request a new cable from them now.

      • roy247's avatar
        roy247
        Hero
        2 years ago

        The attenuator may have been installed by a Virgin engineer to help balance the signal levels between the hub and the 360 box.



  • Tudor's avatar
    Tudor
    Very Insightful Person
    2 years ago

    Quickest way is to just buy an adapter on Amazon, female ‘F’ to TV coax. You then have no trouble with take short silly bit of coax.

    • DavidM71's avatar
      DavidM71
      On our wavelength
      2 years ago

      Thank you Tudor. Ordered and here tomorrow. 👍🏼

  • Roger_Gooner's avatar
    Roger_Gooner
    Alessandro Volta
    2 years ago

    If the signal strength is too strong I'd expect the attenuator to be fitted upstream of the splitter so that a weaker signal is received by both the hub and box. Sometime the attenuator can be the cause of a problem.

    • roy247's avatar
      roy247
      Hero
      2 years ago

      That might depend on the where the hub and 360 boxes are located in the house, upstairs / downstairs and how much cable is involved, if they are next to each other then I agree with what you say. It might also be that someone has reconnected the cables and put the attenuator back in the wrong place.



      • DavidM71's avatar
        DavidM71
        On our wavelength
        2 years ago

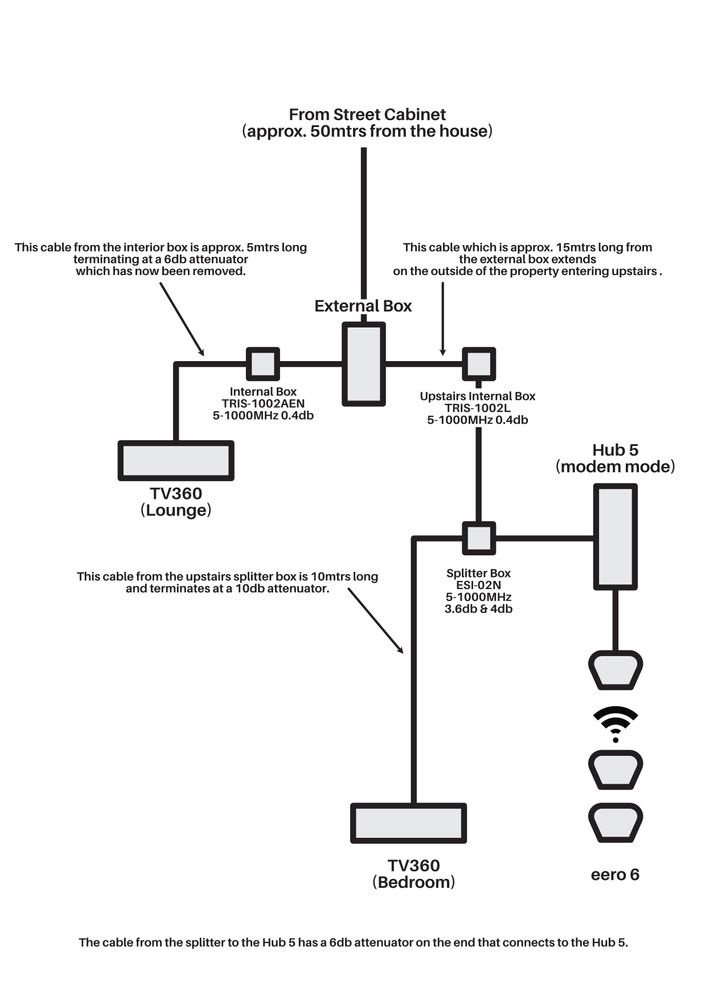

        Thanks for all your replies and help. I thought it might be better to explaining my setup with a diagram.

    • unisoft's avatar
      unisoft
      Knows their stuff
      2 years ago

      depends on the splitter. Some of the older ones do not give equal output on each tap point. That may be why the attenuator was put after the splitter, just for one output.

      What is interesting now, is that the old style attenuators used, should not be used if you have DocSIS 3.1 service. An "equalizer" attenuator is now used instead. On 1gbps service for example, your sync speed will be 1230000450bps instead of a lower figure with an old style attenuator (which is what I had until replaced). The equalizer ones curtail some stronger frequencies, whilst not being so heavy handed on others that are naturally weaker because of higher frequency.
