1GBS & upload limited to 85 Mbps

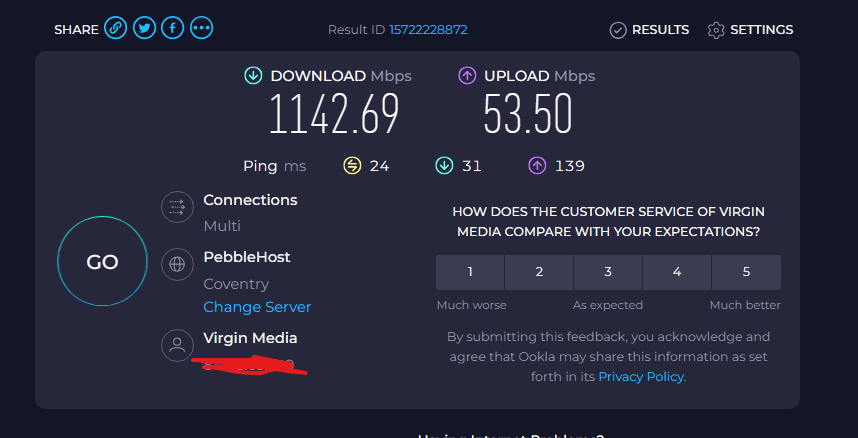

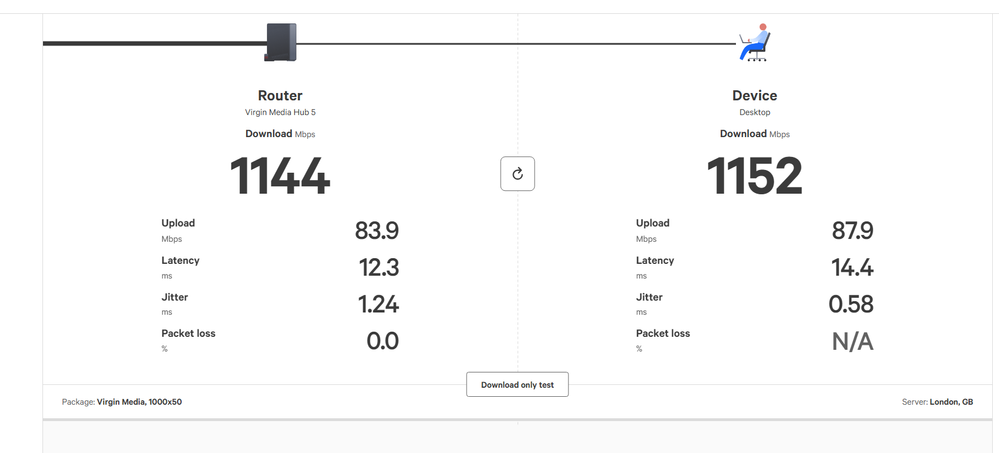

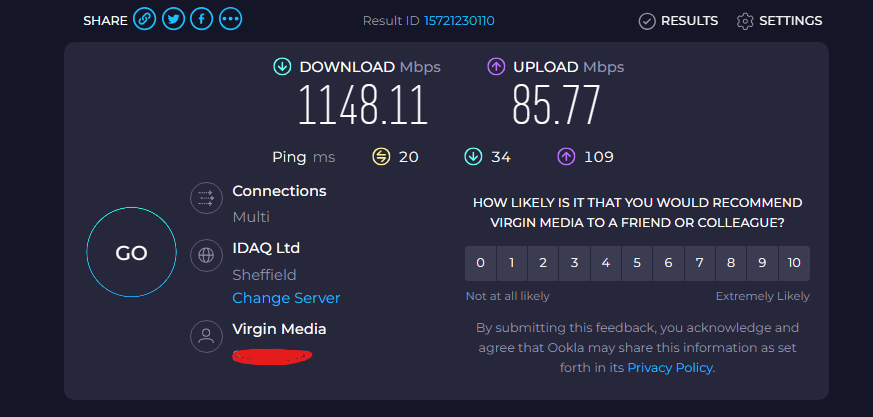

My upload is limited to about 85 MBS average sometimes its 70 sometimes its up to 90.
I used to be able to get 104mbs on speedtests but now I can't and I recall another user having this issue.

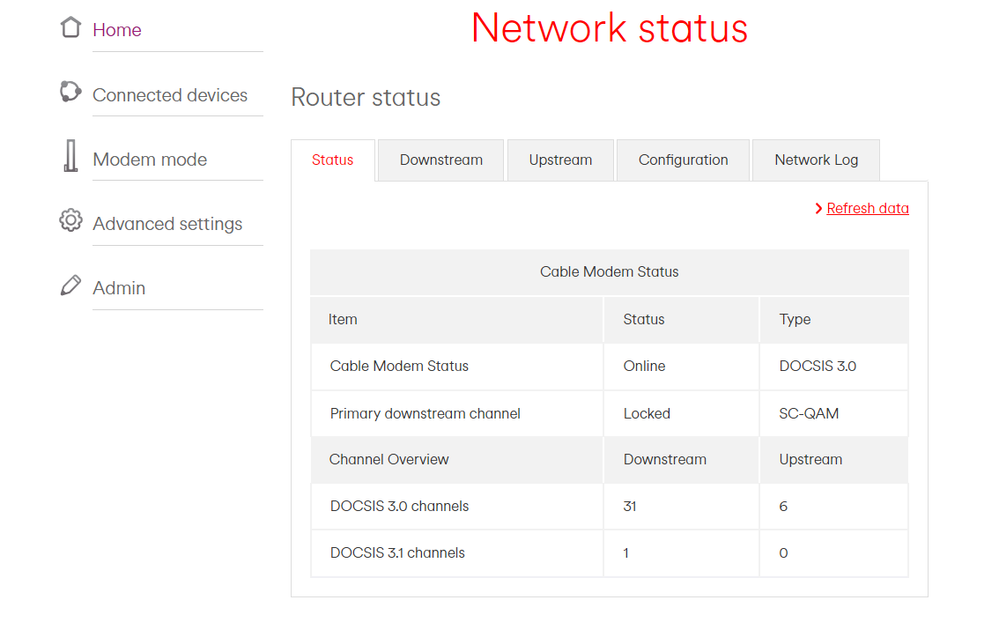

3.0 Upstream channels

Channel Frequency (Hz) Power (dBmV) Symbol Rate (ksps) Modulation Channel ID
06030000035.35120QAM 641
15370000035.35120QAM 642
24620000035.35120QAM 643
33940000035.35120QAM 644
43260000035.35120QAM 645
52360000035.35120QAM 64





3.0 Upstream channels

Channel Channel Type T1 Timeouts T2 Timeouts T3 Timeouts T4 Timeouts
0ATDMA0000
1ATDMA0000
2ATDMA0000
3ATDMA0000
4ATDMA0000
5ATDMA0000

Primary Upstream Service Flow

SFIDMax Traffic RateMax Traffic BurstMin Traffic RateMax Concatenated BurstScheduling TypeSFIDMax Traffic RateMax Traffic BurstMin Traffic RateMax Concatenated BurstScheduling Type
3151
128000 bps
4000bytes
0 bps
1522bytes
Best Effort
31755
110000274 bps
42600bytes
0 bps
42600bytes
Best Effort



23 Replies

  • legacy1's avatar
    legacy1
    Alessandro Volta
    2 years ago

    save some bandwidth for the rest of the people in your area😋

    • locky1's avatar
      locky1
      Dialled in
      2 years ago

      No but that wasn't an issue before and mine is a RFOG connection which doesn't use 3.1 on upload and why I have 6 upload channels.


  • legacy1's avatar
    legacy1
    Alessandro Volta
    2 years ago

    Yes your being rate limit so that everyone else can have bandwidth looks like VM have found a way to QoS the upstream HFQ for your area so you all don't buffer and ping spike at a low bandwidth use in gaming

    • locky1's avatar
      locky1
      Dialled in
      2 years ago

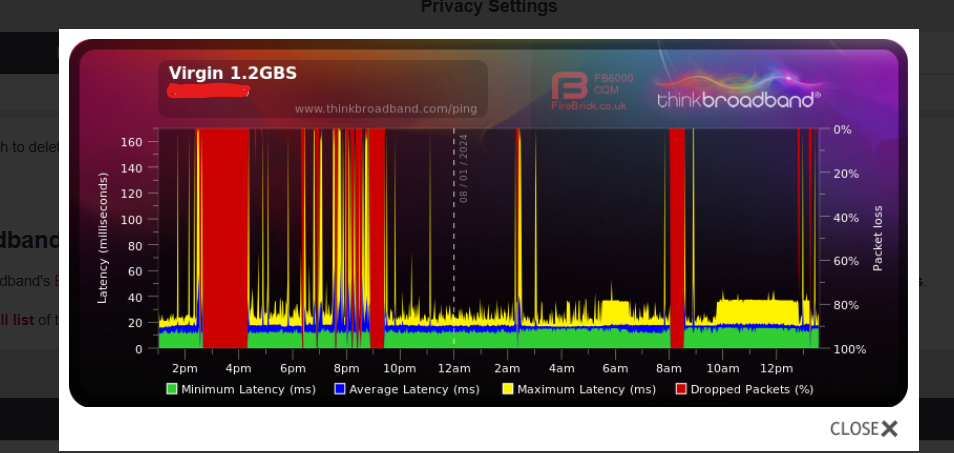

      If that was the case I would get full speed at say 3am which I don't and my BQM wouldn't go from perfect to this..

      • legacy1's avatar
        legacy1
        Alessandro Volta
        2 years ago
        locky1 wrote:

        If that was the case I would get full speed at say 3am which I don't and my BQM wouldn't go from perfect to this..

        Well with all that going on I would think your 1st post would show many T# timeouts

    • IPFreely's avatar
      IPFreely
      Rising star
      2 years ago
      legacy1 wrote:

      Yes your being rate limit so that everyone else can have bandwidth looks like VM have found a way to QoS the upstream HFQ for your area so you all don't buffer and ping spike at a low bandwidth use in gaming

      Word soup. HFQ is a queuing strategy used in QoS deployments, it's not QoS'd itself: interfaces and in turn flows are. VM do not apply additional QoS upstream it's all handled by the upstream scheduler on the CMTS. RFoG looks a little different from HFC however that's a function of RFoG, not some secret sauce QoS.

  • locky1's avatar
    locky1
    Dialled in
    2 years ago

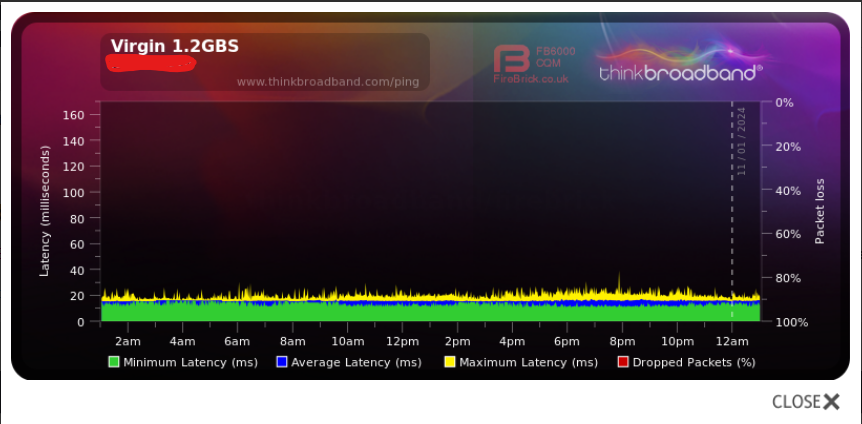

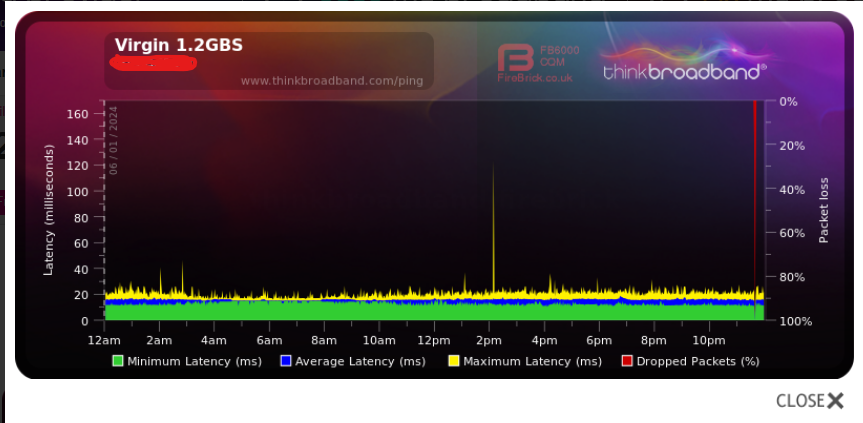

    Just for reference this was my BQM on the 6th of Jan..

  • locky1's avatar
    locky1
    Dialled in
    2 years ago

    So an Virgin tech has been out today and change the router and checked a few things and there is still NO CHANGE and no response from support workers on here..

  • locky1's avatar
    locky1
    Dialled in
    2 years ago

    I am also getting these errors now which I have seen before the this issue started..

    Network Log

    Time Priority Description
    08-01-2024 19:22:50noticeCM-STATUS message sent. Event Type Code: 3; Chan ID: N/A; DSID: 918454; MAC Addr: N/A; OFDM/OFDMA Profile ID: N/A.;CM-MAC=XXXXXXXXXXXX;CMTS-MAC=XXXXXXXXXXXXX;CM-QOS=1.1;CM-VER=3.1;
    08-01-2024 19:22:34warningUnicast DSID PSN startup error
    08-01-2024 19:22:25noticeREGISTRATION COMPLETE - Waiting for Operational status
  • IPFreely's avatar
    IPFreely
    Rising star
    2 years ago

    Looks like upstream congestion RFoG style.

    Either one or more people wanting to use the upload heavily have signed up or an existing customer is using the upstream more.

    Think I mentioned a while back likely on one of your threads that selling 100 up on the RFoG was potentially problematic. If someone's discovered torrents and is letting them rip seeding 24x7 that'll do it.

    Not the same issue as the guy seeing maximum 85. His issue was 4 channels.

  • locky1's avatar
    locky1
    Dialled in
    2 years ago

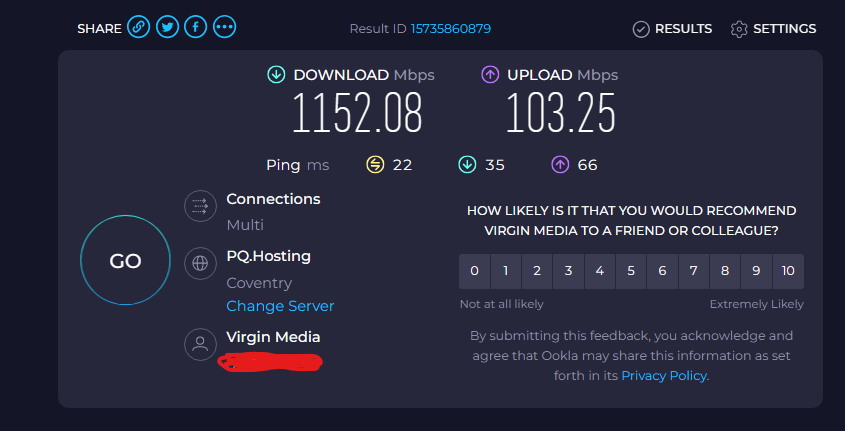

    The issue has now been resolved. Tech been put and replaced the Hub and cleaned the optical connector.
    He escalated it as that didn't solve the issue some "back end work was done" and now fixed..

    • David_Bn's avatar
      David_Bn
      Icon for Forum Team rankForum Team
      2 years ago

      Thanks for the update locky1, and I'm pleased to hear that this has now been resolved for you.

      Do feel free to come back to us if you experience any further issues with the services, and we'll be on hand to assist where possible.

      Thanks,

      David_Bn

      • locky1's avatar
        locky1
        Dialled in
        2 years ago

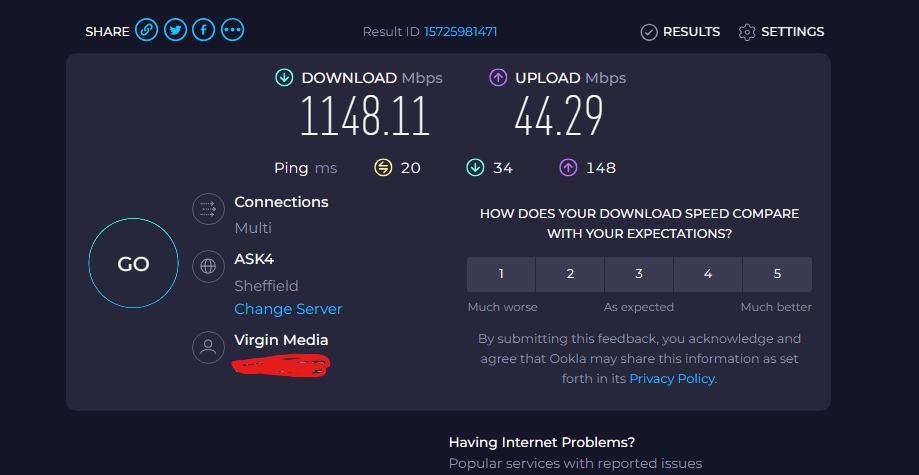

        Well its back to slow upload speeds again and poor BQM...
