Technician installed the fiber and box in the machine room instead of the living room

Machine roomLiving room wall


I moved into my new apartment where the Virgin fiber was eligible but a technician had to come because no one has ever lived in the apartment and it was a first connection.

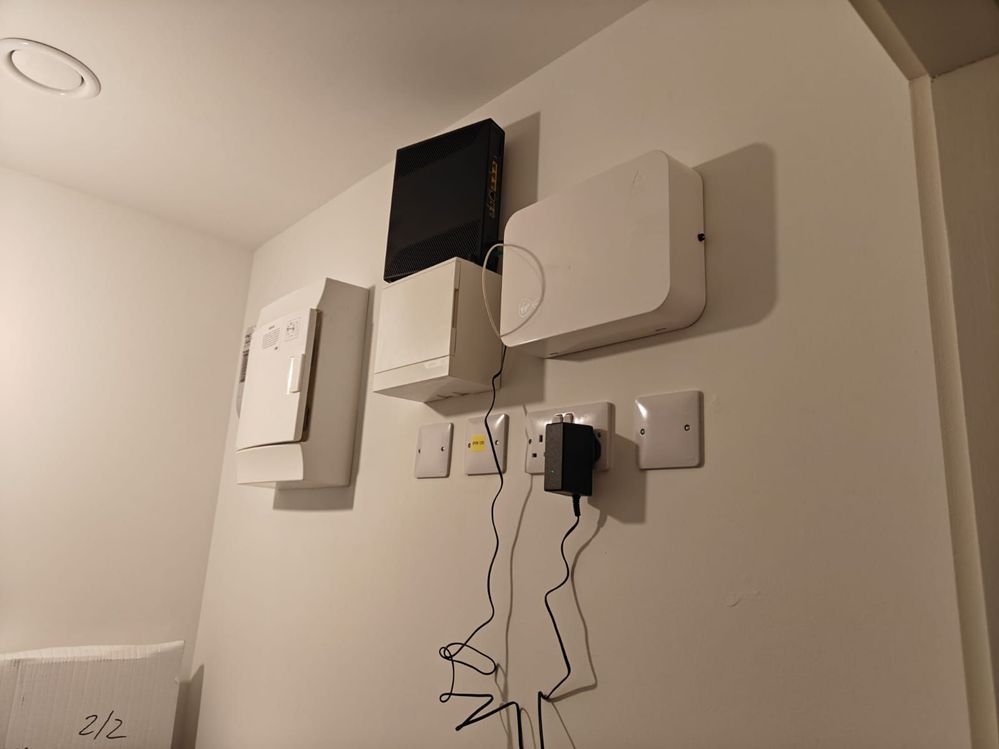

The fiber arrival to the apartment is in the machine room (picture 1 with box), where you'll find the washing machine, the ventilation system and all the things you need to store.

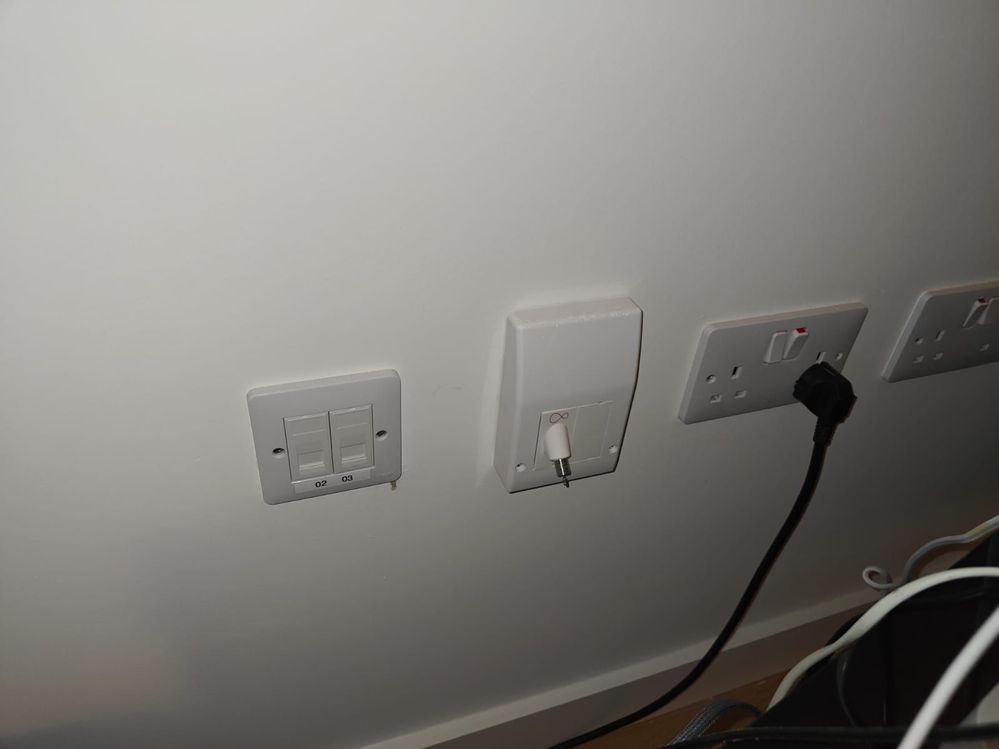

In the living room, there's a second connection next to the TV (picture 2 - wall living room). I needed to have the box there because I need to connect devices using RJ45 for low latency, stability and speed.

The technician made the connection in the machine room and plugged in the box on top of the Virgin set-top box.

He left, telling me that the box could never be installed anywhere else in the apartment, and I know that's not true because I've seen Virgin fibre boxes installed on the living room socket in other apartments in the residence (they're the same apartments throughout the residence). I end up with a high speed fiber that is completly pointless as I need to connect all the devices in wifi with low latency and poor signal that need to cross the walls. Otherwise, I would need to pull a 10m RJ45 across the apartment and the living room.


4 Replies

  • Adduxi's avatar
    Adduxi
    Very Insightful Person

    That looks like the new fibre Hub 5X?  If so, the connection in the living room is no use for that Hub.  However there seems to be ethernet sockets in the room?  Where are those connected to?  You might be able to use those points to connect to the Hub?

  • nodrogd's avatar
    nodrogd
    Very Insightful Person

    Your living room connection is copper coaxial cabling (for DOCSIS internet). The Hub5x you have been given is next generation XGS-PON full fibre kit, so has to be installed where the fibre terminates as you have fibre going directly into the hub. As per the above post, the adjacent RJ45 ports should connect to the central location, so all you have to do is patch these into the hub ports..

  • Tudor's avatar
    Tudor
    Very Insightful Person

    Those sockets marked 03 & 04 a definitely RJ45s, you need to find where these go. Also have a look behind the blank plates in machine room, especially the one with yellow on it. Why is there a European 2 pin plug in that socket in the living room?
