Unstable broadband connection

I have had years of totally reliable connection with Virgin Media until about 3-4 weeks ago. Since then I have been experiencing 'reliably unreliable' connection, with reduced bandwidth and dropouts tending to occur morning and evening.

A VM engineer visited (excellent service!), replaced my old hub with a nice new Hub5, but this has not made any difference.

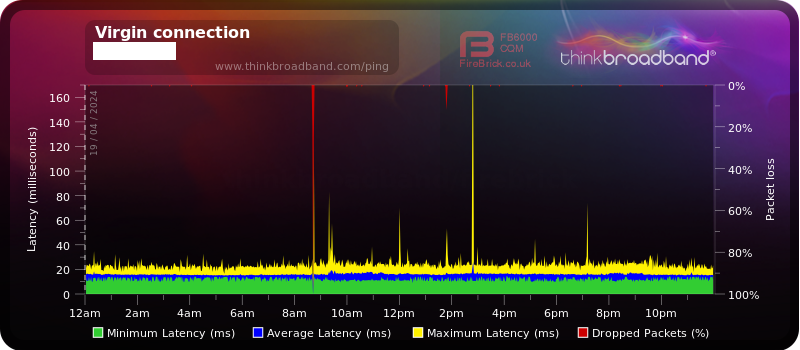

BQM shows latency spikes matching the periods of dropped connection (see attached files). Ookla indicates my bandwidth is going from 368Mbps/ 18ms ping /30ms jitter to 6Mbps / 160ms ping /1184ms jitter in the space of a few mins.

I've tried a factory reset on the hub, tried the hub in modem mode and confirmed that the problem persists across ethernet and WiFi. I mostly use ethernet so this is not a WiFI problem.

I would welcome any assistance or advice about resolving this.



  • jbrennand's avatar
    jbrennand
    Very Insightful Person
    9 months ago

    Your images have been rejected - probably showing your ip address.  So can you do it again with those blacked out - or do it as below.

    Also can you post the rest of the Hub data - as per below.

    __________________________________

    Post up your Hub/network connection details and someone will check to see if there is a problem there.  In your browser’s URL box type in http://192.168.0.1 (or http://192.168.100.1 - if in modem mode) (DONT click these links) - and hit return. No need to log in - just click on the “Router Status” icon/text at bottom-middle (Hub3/4/5) or top/right (SH’s) - of the Login page.
    Then… Navigate to these “data pages” and just copy/paste the normal “Formatted Text” (not images) 3 FULL sets of data onto here – 2 tables from the Downstream, 2 from the Upstream, & the Network Logs pages. Don't worry too much about the formatting it can be easily read & DON’T include personal data or MAC addresses - blank them out - if you copy/paste the data, the board software will do this for you (you may need to click the "submit" button again). If character limits are “exceeded” - just do two posts

    Also, If you haven’t already, set up a free, secure and “offlsite” - “Broadband Quality Monitor” to continually monitor the state of your connection and record any true network dropouts , latency issues, packet drops, etc - it will thus allow you to differentiate between those and simple wifi dropouts. It does it 24/7/365 and it keeps a visual record of any/all of your network disconnections, useful data to have to match to the Network logs (in your Hub settings) and also in discussions with VM - note it will take a few hours to start seeing a sensible picture - post up the “link” to the “share live graph”. Click the lower link (Share Live Graph) then, click generate. Copy the text in the Direct Link box, beware, there may be more text than you can see. On here click the Link icon (2 links chain to the left of the camera icon) In the URL box paste the link you copied and then click OK
    https://www.thinkbroadband.com/broadband/monitoring/quality

  • DeltaVee595's avatar
    DeltaVee595
    Tuning in
    9 months ago

    3.0 Downstream channels

    Channel Frequency (Hz) Power (dBmV) SNR (dB) Modulation Channel ID
    1331000000-1.941QAM 25625
    2147000000-2.140QAM 2562
    3155000000-240QAM 2563
    4163000000-1.840QAM 2564
    5171000000-1.640QAM 2565
    6179000000-1.640QAM 2566
    7187000000-1.640QAM 2567
    8195000000-1.440QAM 2568
    9203000000-1.540QAM 2569
    10211000000-1.241QAM 25610
    11219000000-1.440QAM 25611
    12227000000-1.840QAM 25612
    13235000000-1.940QAM 25613
    14243000000-240QAM 25614
    15251000000-2.140QAM 25615
    16259000000-1.841QAM 25616
    17267000000-1.840QAM 25617
    18275000000-241QAM 25618
    19283000000-241QAM 25619
    20291000000-2.340QAM 25620
    21299000000-2.340QAM 25621
    22307000000-2.240QAM 25622
    23315000000-2.140QAM 25623
    24323000000-240QAM 25624
    25339000000-1.741QAM 25626
    26347000000-1.641QAM 25627
    27355000000-1.641QAM 25628
    28363000000-1.341QAM 25629
    29371000000-1.441QAM 25630
    30379000000-1.441QAM 25631
    31387000000-1.541QAM 25632

    3.0 Downstream channels





    Channel Locked Status RxMER (dB) Pre RS Errors Post RS Errors
    1Locked4193730858753
    2Locked4080977617050783
    3Locked4080418805242898
    4Locked401404225312692733
    5Locked40793279713018428
    6Locked4056894909734948
    7Locked401151913914523340
    8Locked402726645743261
    9Locked401561419304476
    10Locked411697857465670
    11Locked402030453611855
    12Locked401845234324805
    13Locked401861620318106
    14Locked401859031464521
    15Locked401697405423109
    16Locked411630144333401
    17Locked401965933424185
    18Locked412348416530848
    19Locked413770355851290
    20Locked403951959967653
    21Locked404263714999799
    22Locked403339523904610
    23Locked401974514264774
    24Locked40102879364198
    25Locked4190413659464
    26Locked4185687759875
    27Locked4167926335243
    28Locked4161985323949
    29Locked4159573724428
    30Locked4161630628907
    31Locked4184617249991

    3.1 Downstream channels

    Channel Channel Width (MHz) FFT Type Number of Active Subcarriers Modulation (Active Profile) First Active Subcarrier (Hz)
    33944K1840QAM 40961108

    3.1 Downstream channels

    Channel ID Locked Status RxMER Data (dB) PLC Power (dBmV) Corrected errors (Active Profile) Uncorrectable errors (Active Profile)
    33Locked41-1.93723809170257001

  • DeltaVee595's avatar
    DeltaVee595
    Tuning in
    9 months ago



    3.0 Upstream channels

    Channel Frequency (Hz) Power (dBmV) Symbol Rate (ksps) Modulation Channel ID
    04960000046.35120QAM 641
    143100000465120QAM 642
    23660000046.35120QAM 643
    330100000465120QAM 644
    42360000045.85120QAM 645

    3.0 Upstream channels

    Channel Channel Type T1 Timeouts T2 Timeouts T3 Timeouts T4 Timeouts
    0ATDMA0000
    1ATDMA0000
    2ATDMA0000
    3ATDMA0000
    4ATDMA00360

    3.1 Upstream channels

    Channel Channel Width (MHz) Power (dBmV) FFT Type Modulation
    61141.52KQAM 256

    3.1 Upstream channels

    Channel Channel Type Number of Active Subcarriers First Active Subcarrier (Hz) T3 Timeouts T4 Timeouts
    6OFDMA2207400000000



    Network Log


      GUI Login Status - Login Success from LAN interface
    23-04-2024 06:00:50noticeUS profile assignment change. US Chan ID: 6; Previous Profile: 11 13; New Profile: 12 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    23-04-2024 04:57:01noticeUS profile assignment change. US Chan ID: 6; Previous Profile: 12 13; New Profile: 11 13.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    22-04-2024 18:11:10noticeCM-STATUS message sent. Event Type Code: 24; Chan ID: 33; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    22-04-2024 18:00:11noticeCM-STATUS message sent. Event Type Code: 24; Chan ID: 33; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 2.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    22-04-2024 17:55:40noticeCM-STATUS message sent. Event Type Code: 16; Chan ID: 33; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    22-04-2024 17:51:04noticeCM-STATUS message sent. Event Type Code: 16; Chan ID: 33; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    22-04-2024 17:45:41noticeCM-STATUS message sent. Event Type Code: 16; Chan ID: 33; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    22-04-2024 17:11:38noticeCM-STATUS message sent. Event Type Code: 24; Chan ID: 33; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    22-04-2024 16:57:57noticeCM-STATUS message sent. Event Type Code: 16; Chan ID: 33; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    22-04-2024 16:48:56noticeCM-STATUS message sent. Event Type Code: 24; Chan ID: 33; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    22-04-2024 16:42:08noticeCM-STATUS message sent. Event Type Code: 16; Chan ID: 33; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    22-04-2024 16:07:04noticeCM-STATUS message sent. Event Type Code: 24; Chan ID: 33; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    22-04-2024 16:04:55noticeCM-STATUS message sent. Event Type Code: 16; Chan ID: 33; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    22-04-2024 16:04:54noticeCM-STATUS message sent. Event Type Code: 4; Chan ID: 2 4 5 6 7 8 9 13 15 18 19; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: N/A.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    22-04-2024 16:04:46warningMDD message timeout;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    22-04-2024 15:58:29noticeCM-STATUS message sent. Event Type Code: 24; Chan ID: 33; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    22-04-2024 15:53:25warningRNG-RSP CCAP Commanded Power in Excess of 6 dB Below the Value Corresponding to the Top of the DRW;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    22-04-2024 15:52:25noticeCM-STATUS message sent. Event Type Code: 16; Chan ID: 33; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    22-04-2024 15:31:52noticeCM-STATUS message sent. Event Type Code: 24; Chan ID: 33; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    22-04-2024 15:29:39noticeCM-STATUS message sent. Event Type Code: 16; Chan ID: 33; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    22-04-2024 14:49:22noticeCM-STATUS message sent. Event Type Code: 24; Chan ID: 33; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    22-04-2024 14:47:26noticeCM-STATUS message sent. Event Type Code: 16; Chan ID: 33; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    22-04-2024 14:11:10noticeCM-STATUS message sent. Event Type Code: 24; Chan ID: 33; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    22-04-2024 14:09:14noticeCM-STATUS message sent. Event Type Code: 16; Chan ID: 33; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    22-04-2024 14:00:48noticeCM-STATUS message sent. Event Type Code: 24; Chan ID: 33; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    22-04-2024 13:57:56noticeCM-STATUS message sent. Event Type Code: 16; Chan ID: 33; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    22-04-2024 13:52:18noticeCM-STATUS message sent. Event Type Code: 24; Chan ID: 33; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    22-04-2024 13:50:03noticeCM-STATUS message sent. Event Type Code: 16; Chan ID: 33; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    22-04-2024 13:36:33noticeCM-STATUS message sent. Event Type Code: 24; Chan ID: 33; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 2 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    22-04-2024 13:34:14noticeCM-STATUS message sent. Event Type Code: 16; Chan ID: 33; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 3.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    22-04-2024 13:18:25noticeCM-STATUS message sent. Event Type Code: 4; Chan ID: 2 4 5 6 7 8 9 13 15 18 19; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: N/A.;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    22-04-2024 13:18:12warningMDD message timeout;CM-MAC=**:**:**:**:**:**;CMTS-MAC=**:**:**:**:**:**;CM-QOS=1.1;CM-VER=3.1;
    17-04-2024 15:51:35noticeGUI Login Status - Login Success from LAN interface
    17-04-2024 15:51:09noticeGUI Login Status - Login Fail from LAN interface
    17-04-2024 15:44:51noticeGUI Login Status - Login Success from LAN interface
    17-04-2024 15:43:35noticeGUI Login Status - Login Success from LAN interface
  • fizz's avatar
    fizz
    Fibre optic
    9 months ago

    looking at all your pre and post rs errors that hub needs a reboot. Power it down and restart it.. I would also then recommend reposting the stats for other more knowledgeable people to look at. 🙂

    • DeltaVee595's avatar
      DeltaVee595
      Tuning in
      9 months ago

      Thanks. I've tried several reboots and a factory reset but I'm happy to try it again.

  • fizz's avatar
    fizz
    Fibre optic
    9 months ago

    ah when was the last reboot because if the errors are for say a couple of days then you do have a problem!



    • DeltaVee595's avatar
      DeltaVee595
      Tuning in
      9 months ago

      Last reboot was 5 days ago. I've rebooted now and can see the error Pre and Post RS error counts are all zeroed. All other data looks similar to earlier.

      3.0 Downstream channels

      Channel Frequency (Hz) Power (dBmV) SNR (dB) Modulation Channel ID
      1331000000-1.841QAM 25625
      2139000000-1.740QAM 2561
      3147000000-240QAM 2562
      4155000000-240QAM 2563
      5163000000-1.740QAM 2564
      6171000000-1.640QAM 2565
      7179000000-1.640QAM 2566
      8187000000-1.641QAM 2567
      9195000000-1.441QAM 2568
      10203000000-1.440QAM 2569
      11211000000-1.241QAM 25610
      12219000000-1.340QAM 25611
      13227000000-1.740QAM 25612
      14235000000-1.840QAM 25613
      15243000000-240QAM 25614
      16251000000-240QAM 25615
      17259000000-1.841QAM 25616
      18267000000-1.741QAM 25617
      19275000000-1.941QAM 25618
      20283000000-241QAM 25619
      21291000000-2.241QAM 25620
      22299000000-2.240QAM 25621
      23307000000-2.140QAM 25622
      24315000000-240QAM 25623
      25323000000-1.940QAM 25624
      26339000000-1.741QAM 25626
      27347000000-1.641QAM 25627
      28355000000-1.541QAM 25628
      29363000000-1.241QAM 25629
      30371000000-1.341QAM 25630
      31379000000-1.441QAM 25631

      3.0 Downstream channels

      Channel Locked Status RxMER (dB) Pre RS Errors Post RS Errors
      1Locked4100
      2Locked4000
      3Locked4000
      4Locked4000
      5Locked4000
      6Locked4000
      7Locked4000
      8Locked4100
      9Locked4100
      10Locked4000
      11Locked4100
      12Locked4000
      13Locked4000
      14Locked4000
      15Locked4000
      16Locked4000
      17Locked4100
      18Locked4100
      19Locked4100
      20Locked4100
      21Locked4100
      22Locked4000
      23Locked4000
      24Locked4000
      25Locked4000
      26Locked4100
      27Locked4100
      28Locked4100
      29Locked4100
      30Locked4100
      31Locked4100

      3.1 Downstream channels

      Channel Channel Width (MHz) FFT Type Number of Active Subcarriers Modulation (Active Profile) First Active Subcarrier (Hz)
      33944K1840QAM 40961108

      3.1 Downstream channels

      Channel ID Locked Status RxMER Data (dB) PLC Power (dBmV) Corrected errors (Active Profile) Uncorrectable errors (Active Profile)
      33Locked41-1.989923560





  • DeltaVee595's avatar
    DeltaVee595
    Tuning in
    9 months ago

    I can confirm the reboot has had no impact on the issue. Still getting drop outs.

    • jbrennand's avatar
      jbrennand
      Very Insightful Person
      9 months ago

      See if the PostRS errors and T3 errors have all reset to 0. Then check every hour or so to see if they start reappearing - they shouldn't. If they do (particularly the postRS and T3 ones) you have a problem (noise) that only a Tech visit will sort.

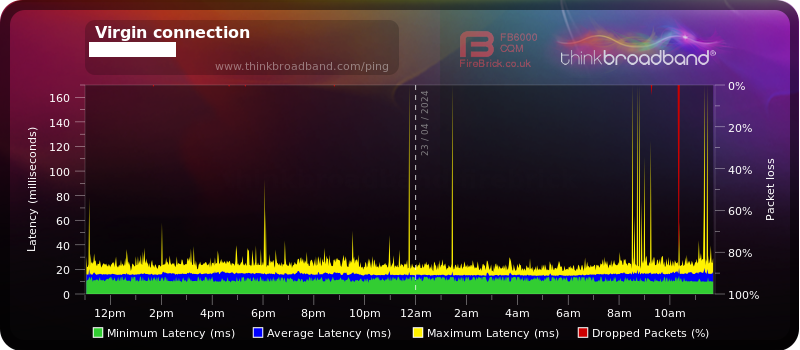

      Your drop off (red spike) was at ~10.30 am - what do the logs report around that time?

      • DeltaVee595's avatar
        DeltaVee595
        Tuning in
        9 months ago

        Thanks for you help with this John. It is very much appreciated.

        In the two hours since my most recent factory reset I can see 3 Pre RS errors, 0 Post , 0 T3 Timeouts. I will continue to check as you suggest.

        The factory reset has wiped the log so I can't tell what was happening for sure but I believe I reset the power on the router around 10:30am.

        BTW: can you recommend a source of information about cable modems where I can learn how to interpret the information about noise and errors?



  • Sephiroth's avatar
    Sephiroth
    Alessandro Volta
    9 months ago

    The Pre-RS errors are corrected in flight (by algorithm) and are nothing to worry about unless they are running riot - in which case the Post-RS errors (uncorrectable data) will be rising.  If the Post-RS errors are not rising, then the downstream is likely to be performing OK and the upstream might be suspect (more difficult to diagnose).

    John has identified your BQM red spike as a 'drop-off'.  Or was that when you rebooted the Hub?   Is your 'drop-off' an event when you've lost the Internet?  Your PC will tell you if you are connected to the Internet.

    And do keep posting the stats(incl. the Network Log) and the BQM.   We'd want to see whether or not the T3 events are still occurring because the BQM does show minor red lines at the top of the chart which may well coincide with the T3 events.  In which case the upstream is likely to be playing up - either through oversubscription or fault.

    • DeltaVee595's avatar
      DeltaVee595
      Tuning in
      9 months ago



      Sephiroth wrote:

      John has identified your BQM red spike as a 'drop-off'.  Or was that when you rebooted the Hub?   Is your 'drop-off' an event when you've lost the Internet?  Your PC will tell you if you are connected to the Internet.

      Thanks for you reply Sephiroth

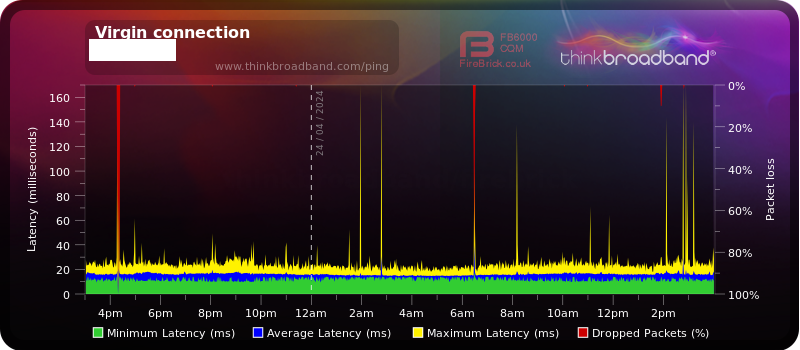

      The yellow spikes coincide with progressive performance degradation - bandwidth reduces, ping time shoots up - and sometimes this results in total loss of connection for a few minutes.

      Additional data from hub posted below.

      Is there any reason I should further delay trying to book an engineer visit?







      • Ayisha_B's avatar
        Ayisha_B
        Forum Team
        9 months ago

        Hi DeltaVee595

        Thanks so much for the update on your most recent post.

        We're so please the issue has now been resolved following an engineer visit.

        If we can help with anything else, do let us know.

  • DeltaVee595's avatar
    DeltaVee595
    Tuning in
    9 months ago

    3.0 Downstream channels

    Channel Frequency (Hz) Power (dBmV) SNR (dB) Modulation Channel ID
    1331000000-1.941QAM 25625
    2147000000-2.640QAM 2562
    3155000000-2.540QAM 2563
    4163000000-2.141QAM 2564
    5171000000-1.741QAM 2565
    6179000000-1.641QAM 2566
    7187000000-1.641QAM 2567
    8195000000-1.341QAM 2568
    9203000000-1.441QAM 2569
    10211000000-1.141QAM 25610
    11219000000-1.341QAM 25611
    12227000000-1.741QAM 25612
    13235000000-241QAM 25613
    14243000000-2.141QAM 25614
    15251000000-2.241QAM 25615
    16259000000-1.941QAM 25616
    17267000000-1.841QAM 25617
    18275000000-1.941QAM 25618
    19283000000-1.941QAM 25619
    20291000000-2.141QAM 25620
    21299000000-2.141QAM 25621
    22307000000-2.140QAM 25622
    23315000000-2.140QAM 25623
    24323000000-241QAM 25624
    25339000000-1.841QAM 25626
    26347000000-1.841QAM 25627
    27355000000-1.841QAM 25628
    28363000000-1.541QAM 25629
    29371000000-1.641QAM 25630
    30379000000-1.641QAM 25631
    31387000000-1.741QAM 25632

    3.0 Downstream channels

    Channel Locked Status RxMER (dB) Pre RS Errors Post RS Errors
    1Locked4121037213661
    2Locked40430783572958
    3Locked40496103353987
    4Locked41283712265888
    5Locked41527238949717
    6Locked41390757624739
    7Locked41166387168700
    8Locked4127459586781
    9Locked41350244106998
    10Locked4121026974800
    11Locked4124971867671
    12Locked4138174989169
    13Locked4133664669467
    14Locked4120568560952
    15Locked41379615104746
    16Locked4125755844448
    17Locked4134259065395
    18Locked4133044795760
    19Locked4118204365767
    20Locked4117531353455
    21Locked4116665565227
    22Locked4021957876428
    23Locked4025308547039
    24Locked4117622513382
    25Locked4120324516433
    26Locked4119017621235
    27Locked4116434611411
    28Locked411386194606
    29Locked411320484236
    30Locked411563245683
    31Locked4117700915316

    3.1 Downstream channels

    Channel Channel Width (MHz) FFT Type Number of Active Subcarriers Modulation (Active Profile) First Active Subcarrier (Hz)
    33944K1840QAM 40961108

    3.1 Downstream channels

    Channel ID Locked Status RxMER Data (dB) PLC Power (dBmV) Corrected errors (Active Profile) Uncorrectable errors (Active Profile)
    33Locked41-2.159266639022574
